Transparent Pneumatic Components Manufacturer,Supplier and Exporter in India
Product Code : JA-MLE-9018

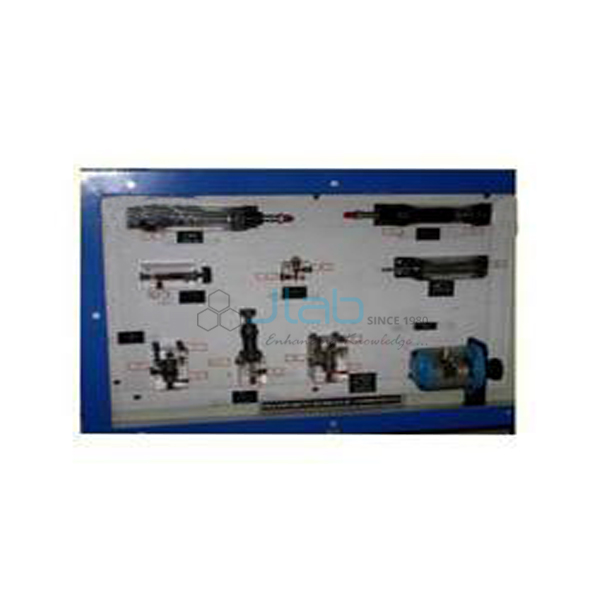

Transparent Pneumatic Components (SKU JA-MLE-9018) is a trainer of transparent pneumatic components, with transparent bodies or cut sections that show the internal construction of each valve and cylinder. It includes 3/2, 5/2 and 2/2 direction control valves with push button, pilot and solenoid operation, plus single and double acting cylinders, mounted on an inclined perforated table with an acrylic door and lock. A comprehensive training manual is supplied. It is manufactured by JaincoLab.
Specifications
The set includes spool, push button, pilot and solenoid operated direction control valves (3/2, 5/2, 2/2) and single and double acting cylinders, with transparent or cut-section bodies, on an inclined perforated table with lockable acrylic door.
| Product | Transparent Pneumatic Components |
| SKU | JA-MLE-9018 |
| Valves | 3/2 spool type DCV; 3/2 push button DCV; solenoid operated 3/2, 2/2 and 5/2 DCVs; 5/2 single and double pilot operated DCV |
| Actuators | Single acting cylinder; double acting cylinder |
| Construction | Transparent body or cut section showing internal features |
| Mounting | Inclined perforated table with acrylic door and locking arrangement |
| Documentation | Comprehensive training manual |
| Experiments | Study of pneumatic control valves and actuators |
Applications of the transparent pneumatic components
Seeing spools shift and pistons move inside transparent bodies helps students understand how each pneumatic valve routes air, before they build working circuits on a pneumatic trainer.
- Internal construction of direction control valves
- Spool, pilot and solenoid valve operation
- Single and double acting cylinder operation
- Reading pneumatic symbols against real components
- Pneumatics and mechatronics practicals in B.Tech, diploma and ITI courses
Scope of supply and ordering
The listing covers the transparent pneumatic components listed, mounted on the inclined perforated table with lockable acrylic door, and the training manual. Accessories, spares and quantities are confirmed on the quotation.
Packing, lead time and minimum order quantity depend on the quantity and delivery destination and are confirmed on each quotation. Institutional, bulk and tender orders are supplied, including export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which valves are included?
3/2, 5/2 and 2/2 direction control valves with spool, push button, pilot and solenoid operation.
Are cylinders included?
Yes. A single acting and a double acting cylinder.
How are the components displayed?
On an inclined perforated table with an acrylic door and locking arrangement.
