Cam and Follower Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-AMLE-8940

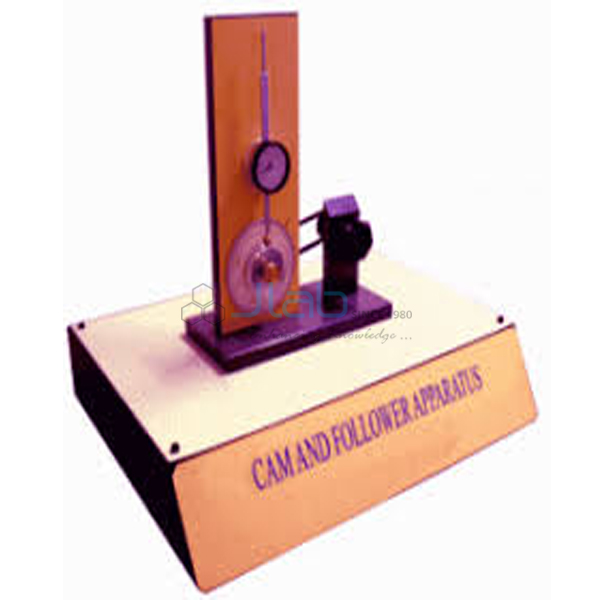

The Cam and Follower Apparatus (SKU JA-AMLE-8940) is a hand-operated cam and follower apparatus for plotting follower displacement against cam angle. Each cam mounts on a central shaft in a vertical pillar, and a dial gauge rests on the follower to read lift as the cam is turned against a 360 degree protractor. It comes with five cams, including simple harmonic, uniform motion and tangent profiles, and roller and knife-edge followers. It is manufactured by JaincoLab.
Specifications
The apparatus has five cams, two followers, a 360 degree protractor with 1 degree resolution and a dial gauge with 25 mm range and 0.01 mm resolution on a 60 mm reading face.
| Product | Cam and Follower Apparatus |
| SKU | JA-AMLE-8940 |
| Operation | Cams rotated by hand on a central shaft in a vertical pillar |
| Cams (set of 5) | Simple harmonic motion, uniform motion, constant acceleration, tangent, eccentric |
| Followers (set of 2) | Roller and knife-edge |
| Protractor scale | 360 degree range, 1 degree resolution |
| Dial gauge | 25 mm range, 0.01 mm resolution, 60 mm diameter reading face |
Applications of the cam and follower apparatus
Students turn each cam in steps, read follower lift on the dial gauge and plot displacement diagrams, comparing how different cam profiles and follower types move a valve or lever.
- Displacement diagrams for five cam profiles
- Comparing roller and knife-edge followers
- Simple harmonic, uniform and constant acceleration motion
- Cam profile selection for machine design
- Theory of machines practicals in B.Tech and diploma courses
Scope of supply and ordering
The listing covers the cam and follower apparatus with five cams, two followers, protractor scale and dial gauge. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing for the Cam and Follower Apparatus are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
Which cams are supplied?
Simple harmonic motion, uniform motion, constant acceleration, tangent and eccentric cams.
Which followers are included?
A roller follower and a knife-edge follower.
How is lift measured?
With a dial gauge of 25 mm range and 0.01 mm resolution.
Related products
- Gear Trains Apparatus
- Flywheel Apparatus
- Winch Crab Single/Double Purchase
- Machine Friction of Belts Apparatus
Browse the full mechanical engineering lab equipment range from JaincoLab, covering strength of materials, metrology, machine dynamics and workshop equipment.
Request a quote
To order the Cam and Follower Apparatus, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-AMLE-8940. For tender or project supply, see our tenders page.
