Rope Belt Friction Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-AMLE-8946

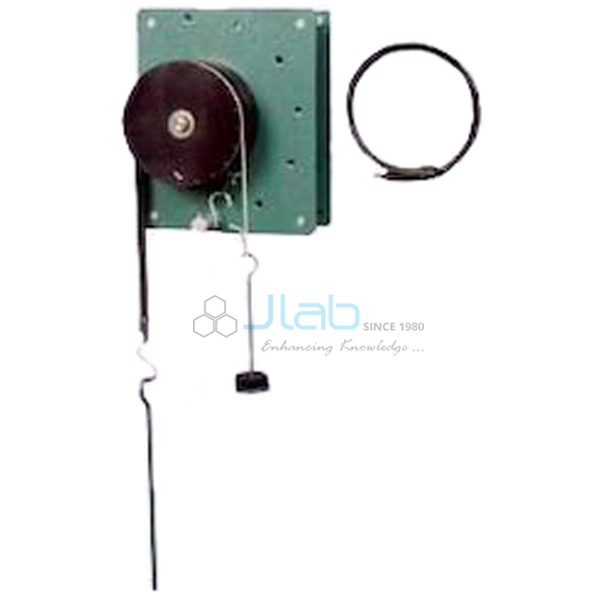

The Rope Belt Friction Apparatus (SKU JA-AMLE-8946) is a wall-mounted rope friction apparatus for finding the coefficient of friction between a steel pulley and a cotton rope. A fixed pulley, a second interchangeable pulley and a loaded rope belt with two load hangers form a complete loop. Four pulleys, with vee grooves of about 60, 90 and 120 degrees and a flat rim, show the effect of groove angle, and alternative mounting positions vary the lap angle. It is manufactured by JaincoLab.
Specifications
The apparatus has a fixed pulley, four interchangeable pulleys (V-grooves of about 60, 90, 120 degrees and flat rim), a cotton rope belt loop with two hangers, and measures 250 x 150 x 370 mm at about 19 kg.
| Product | Rope Belt Friction Apparatus |
| SKU | JA-AMLE-8946 |
| Mounting | Wall mounted |
| Pulleys | Fixed pulley plus interchangeable pulley |
| Interchangeable pulleys | Four: vee grooves of about 60, 90 and 120 degrees, and flat rim |
| Belt | Cotton rope belt in a complete loop with 2 load hangers |
| Lap angle | Alternative mounting positions to vary the lap angle |
| Dimensions and weight (excluding weights) | 250 x 150 x 370 mm; 19 kg (approx.) |
Applications of the rope friction apparatus
The apparatus shows how a V-groove wedges the rope and raises effective friction, so students can compare groove angles and lap angles and relate the results to rope and V-belt drives.
- Coefficient of friction between steel pulley and cotton rope
- Belt tension ratio
- Effect of V-groove angle on friction
- Effect of lap angle
- Applied mechanics and theory of machines practicals in B.Tech and diploma courses
Scope of supply and ordering
The listing covers the wall-mounted apparatus with fixed pulley, four interchangeable pulleys, rope belt loop, two load hangers and instruction manual. A set of weights is confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Packing, lead time and minimum order quantity depend on the quantity and delivery destination and are confirmed on each quotation. Institutional, bulk and tender orders are supplied, including export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which groove angles are supplied?
Four pulleys with vee grooves typically of 60, 90 and 120 degrees and a flat rim.
What rope is used?
A cotton rope belt in a complete loop with two load hangers.
Can the lap angle be changed?
Yes. Alternative mounting positions are provided to vary the lap angle.
