Fluid Properties Apparatus

Product Code : JA-FMAHLE-9942
Jaincolab is a leading Fluid Properties Apparatus Manufacturer,and suppliers in India, Fluid Properties Apparatus Manufacturer,and suppliers in South Africa, Fluid Properties Apparatus Algeria (Algiers), Fluid Properties Apparatus Angola (Luanda), Fluid Properties Apparatus Argentina (Buenos Aires), Fluid Properties Apparatus Armenia (Yerevan), Fluid Properties Apparatus Australia (Canberra), Fluid Properties Apparatus Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

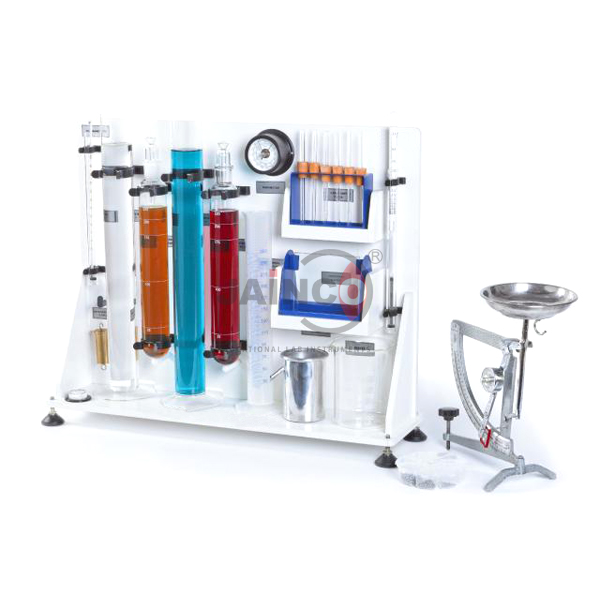

Fluid Properties Apparatus
Description:-
This apparatus introduces students to the following properties of fluids:
Density and relative density (specific gravity)
Capillarity:- capillary elevation between flat plates and in circular tubes
Viscosity
Atmospheric pressure
Buoyancy (Archimedes principle)

Specification:-
Universal hydrometer with varying resolution of 0.01 at 0.70 SG to 0.5 at 2.00 SG
2x Falling sphere viscometer tubes 40 mm diameter with calibration marks at 0, 25, 100, 175, 200 and 220 mm
Components stored on support frame manufactured from PVC
2x Hydrometer jars 50 mm diameter and 450 mm high
Density bottle (pycnometer), Capacity 50 ml
Dual scale lever balance, Ranges 0 to 250 gms x 1gm and 0 to 1 kg x 10 gms
Spirit filled thermometer glass, Range -10o to 50o C
Aneroid barometer, Range 910 to 1060 mbar
6x Capillary tubes 150 mm long with 0.4, 0.6, 0.8, 1.2, 1.7 and 2.2 mm bore

Technical Details
The following components are included:
1x Parallel plate capillary apparatus
1x Capillary tube apparatus with 6 tubes of varying size
1x Archimedes apparatus comprising displacement vessel, machined bucket & matching cylinder
1x 50 ml density bottle
1x 250 ml plastic measuring cylinder
1x Spirit filled glass thermometer (in protective housing)
1x Direct reading aneroid barometer (fixed to stand)
1x 600 ml glass beaker
1x Dual scale lever balance, adapted for use with Archimedes apparatus
2x Hydrometer jars (clipped to stand)
1x Universal hydrometer (in protective housing)
2x Falling sphere viscometer tubes (clipped to stand)
1x Plastic storage box containing steel spheres
