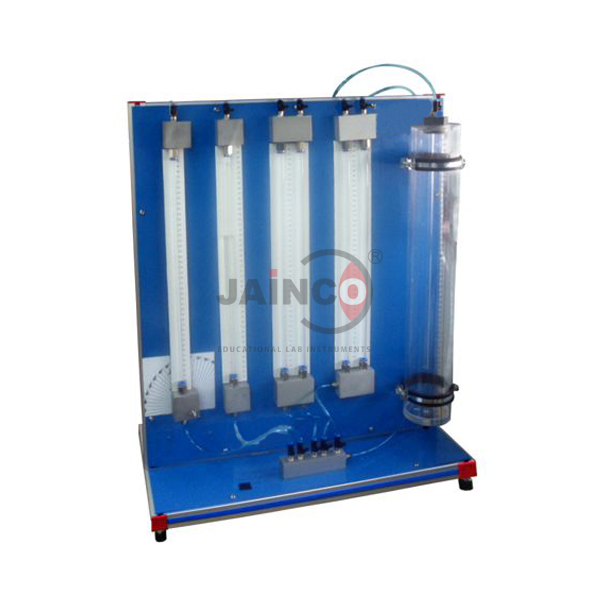

Fluid Statics and Manometry Manufacturer,Supplier and Exporter in India
Product Code : JA-FMAHLE-9944
Jainco Lab is a leading Fluid Statics and Manometry Manufacturer,and suppliers in India, Fluid Statics and Manometry Manufacturer,and suppliers in South Africa, Fluid Statics and Manometry Algeria (Algiers), Fluid Statics and Manometry Angola (Luanda), Fluid Statics and Manometry Argentina (Buenos Aires), Fluid Statics and Manometry Armenia (Yerevan), Fluid Statics and Manometry Australia (Canberra), Fluid Statics and Manometry Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).
Fluid Statics and
Manometry
Specification:-
Demonstrates the basic principles of hydrostatics and manometry.
Includes vertical tube with variable cross section,
Scale length 460 mm.
Includes demonstrations of the following types of
manometer:-
Enlarged limb-manometer.
'U' tube manometer (air over liquid), Scale length
460 mm.
'U' tube manometer (liquid over liquid), Scale
length 460 mm.
Single piezometer manometer tube, Scale length 460
mm.
Inclined manometer with inclinations of 5o, 30o, 60o and
90o (vertical).
Inverted pressurized U tube manometer, Scale length
460 mm.
Allows the effect of friction to be demonstrated
when fluid is in motion.
Level measurement using Vernier hook and point
gauge, Range 0 to 150 mm with 0.1 mm resolution.
Technical Details:-
|
Item |
Fluid Statics and Manometry |
|
Max depth inside reservoir |
574 mm |
|
Inside diameter of reservoir |
100 mm |
|
Scale length of manometer tubes |
460 mm |
|
Manometer tubes incorporated |
1x U tube |
|
2x Vertical parallel tubes |
|
|
1x Vertical tube with varying cross section |
|
|
1x Vertical tube with pivot allowing operation at
three different inclinations |
