Free and Forced Vortex

Product Code : JA-FMAHLE-9945
Jaincolab is a leading Free and Forced Vortex Manufacturer,and suppliers in India, Free and Forced Vortex Manufacturer,and suppliers in South Africa, Free and Forced Vortex Algeria (Algiers), Free and Forced Vortex Angola (Luanda), Free and Forced Vortex Argentina (Buenos Aires), Free and Forced Vortex Armenia (Yerevan), Free and Forced Vortex Australia (Canberra), Free and Forced Vortex Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Free and Forced Vortex
Description:-
The forced vortex is induced by a paddle in the base of the cylinder which is rotated by jets of water.
The profile of the forced vortex is determined using a series of depth gauges.
Velocity at any point in the free or forced vortices may be measured using the appropriate pitot tube supplied.

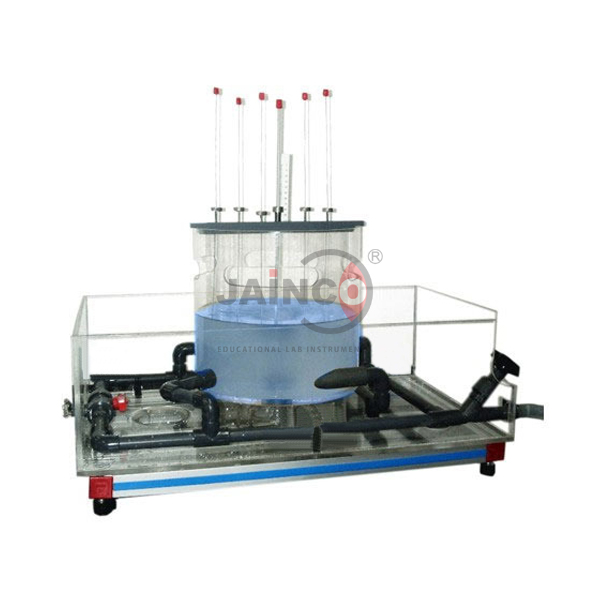

The apparatus includes a clear acrylic cylinder on a plinth developed to produce & measure free and forced vortices.
The free vortex is generated by water discharging through an interchangeable orifice in the base of the cylinder and the resulting profile is measured using a combined caliper and depth scale.
Dye crystals may be used to demonstrate secondary flow at the base of the free vortex.

Specification:-
Plexiglass tank on powder coated base plate, complete with pipework, fittings and connections, as well as measuring device with vertical/radial scale.
Experimental set-up to study the formation of vortices in liquids, for use.
630 x 400 x 675mm (l x w x h), 18kg.
Vortex generated via outlet inserts or impeller with 3 blades.

Technical Data:-
4 outlets: diameter: 8, 12, 16, 24mm
Tank: diameter: 250mm, height: 190mm
