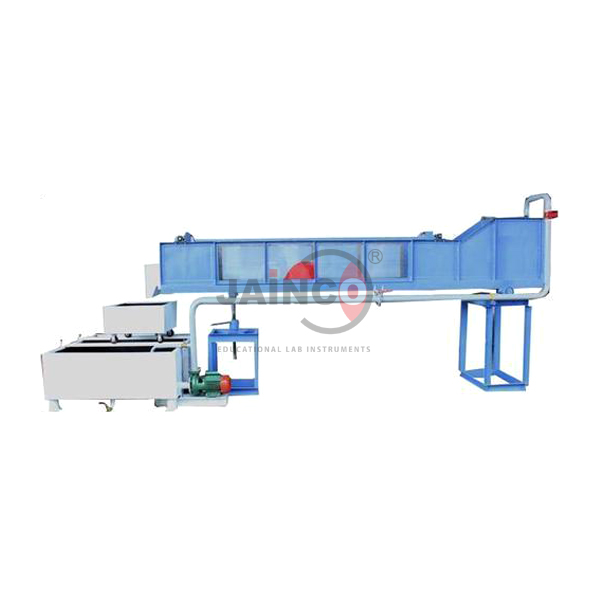

Experimental Flume

Product Code : JA-FMAHLE-9981
Jainco Lab is a leading Experimental Flume Manufacturer,and suppliers in India, Experimental Flume Manufacturer,and suppliers in South Africa, Experimental Flume Algeria (Algiers), Experimental Flume Angola (Luanda), Experimental Flume Argentina (Buenos Aires), Experimental Flume Armenia (Yerevan), Experimental Flume Australia (Canberra), Experimental Flume Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Experimental Flume
Specification:-
Experimental section with 10 evenly spaced threaded holes on the bottom for installing models or for Water level measurement using pressure.
Side walls of the experimental section are made of tempered glass for excellent observation of the experiments.
All surfaces in contact with water are made of corrosion-resistant materials.
Basic principles of open channel flow.
Closed water circuit with water tank, pump, flow rate sensor and manual flow adjustment.
Models from all fields of hydraulic engineering available as accessories.
Experimental flume with experimental section, inlet and outlet element and closed water circuit.
length of the experimental section 2, 5m.
Smoothly adjustable inclination of the experimental section.
Flow-optimised inlet element for low-turbulence entry into the experimental section.

Technical Data:-
Experimental section:-
Flow cross-section WxH: 86 x 300mm
Inclination adjustment: -0, 5...+3%
Length: 2,5m or 5m (with 1x HM 160.10)
Tank: 280L

Pump:-
Power consumption: 1,02kW
Max. head: 13, 7m
Max. flow rate: 22,5m³/h

Flow rate measuring range: 0...10m³/h
