Flow Over Weirs

Product Code : JA-FMAHLE-9938
Jaincolab is a leading Flow Over Weirs Manufacturer,and suppliers in India, Flow Over Weirs Manufacturer,and suppliers in South Africa, Flow Over Weirs Algeria (Algiers), Flow Over Weirs Angola (Luanda), Flow Over Weirs Argentina (Buenos Aires), Flow Over Weirs Armenia (Yerevan), Flow Over Weirs Australia (Canberra), Flow Over Weirs Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Flow Over Weirs
Description:-
A sharp crested weir constricts an open channel flow, and helps in measuring flow rate using level gauge contained within the set.

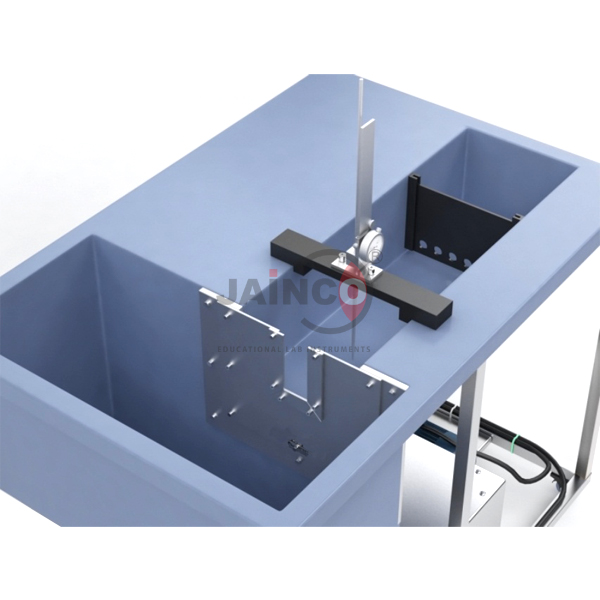

The Flow Over Weirs is a kit containing two types of sharp crested weirs and a level gauge.
The weirs have opening or sections at the top that allow flow; the Thomson weir with V-profile opening, the weir with rectangular profile opening.

The inlet nozzle and stilling baffle in combination promote smooth flow conditions in the channel.
A Vernier hook and point gauge is mounted on an instrument carrier, which is located on the side channels of the moulded top.
The carrier may be moved along the channels to the required measurement position.
The Flow over Weirs consists of five basic elements used in conjunction with the flow channel in the moulded bench top of the hydraulics bench.
A stilling baffle locates into slots in the walls of the channel.
The rectangular notch weir or
A quick release connector in the base of the channel is unscrewed and a delivery nozzle screwed in its place.
Vee notch weir to be tested is clamped to the weir carrier in the channel by thumb nuts.
The weir plates incorporate captive studs to aid assembly.

Specification:-
Self-sealing weir panels, 230 x 185 x 8mm, manufactured from PVC
Square weir, notch w x h 60x50mm
Level gauge to determine the weir head
Thomson weir with notch 90°

Technical:-
Weir panels made of PVC
Thomson weir: notch angle 90o
Level gauge: Measuring range 0...200mm
Square weir: width of notch 60mm
Weight : approx. 2 kg
Dimensions L x W x H : 290 x 190 x 290 mm
