High Current Sensor Manufacturer,Supplier and Exporter in India
Product Code : JA-DAS-9202

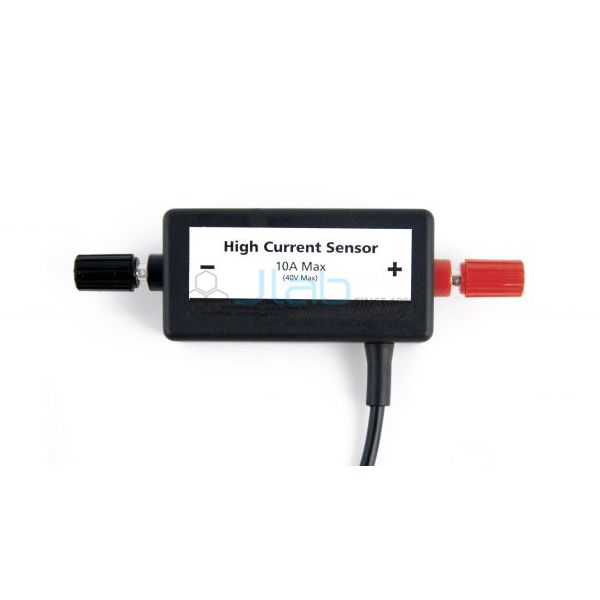

The High Current Sensor (SKU JA-DAS-9202) is a Hall effect current sensor with a range of ±10 A for data-logging experiments. It measures the magnetic field created by the current, a metal shield over the Hall chip reduces the influence of external magnets, and a replaceable 10 A fuse protects the equipment and circuit. It runs on 5 VDC and outputs 0-5 V. This high current sensor is supplied by JaincoLab for physics, electrical and electronics laboratories.
Specifications
The sensor measures ±10 A with a typical resolution of 4.9 mA, accepts up to ±40 V at its input, outputs 0-5 V from a 5 VDC supply and is calibrated with an intercept of -11.31 A and a slope of 4.51 A/V.
| Product | High Current Sensor |
| SKU | JA-DAS-9202 |
| Range | ±10 A |
| Sensing | Hall effect, with metal shield |
| Typical resolution | 4.9 mA |
| Maximum voltage input | ±40 V |
| Output | 0-5 V |
| Supply | 5 VDC |
| Protection | Replaceable 10 A fuse |
| Calibration | Intercept -11.31 A; slope 4.51 A/V |
Experiments with the high current sensor
Students connect the sensor in series with motors, lamps or heaters and log current against time or voltage, using the listed slope and intercept to convert the output to amperes.
- Motor start-up current logging
- Current-voltage characteristics of lamps and heaters
- Electrical power measurements with a voltage sensor
- Transformer and induction experiments
- Physics and electrical practicals
Scope of supply and ordering
This listing covers one high current sensor with fuse. Accessories, spares and quantities are confirmed on the quotation. Spare fuses, cables and data logger are confirmed on the quotation.
Packing, lead time and any minimum order for the High Current Sensor are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Frequently asked questions
What is the current range?
±10 A.
How is the sensor protected?
By a replaceable 10 A fuse; a metal shield reduces the effect of external magnets.
What is the calibration?
Current in amperes = 4.51 A/V x output voltage - 11.31 A (slope and intercept as listed).
Related products
More trainers and training laboratory units are listed in the training workshop labs range from JaincoLab.
Request a quote
Send an enquiry for the High Current Sensor (SKU JA-DAS-9202) with the quantity and delivery destination using the JaincoLab contact page or by email to [email protected]. Buying under a laboratory tender? Use our tenders page.
