Differential Voltage Sensor Manufacturer,Supplier and Exporter in India
Product Code : JA-DAS-9197

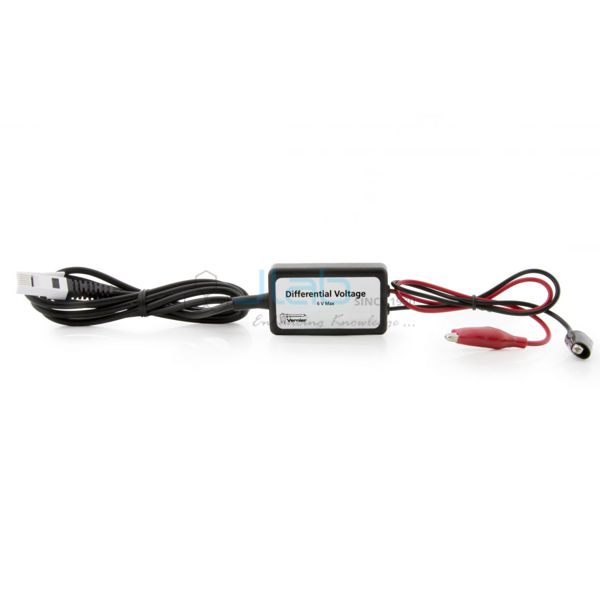

The Differential Voltage Sensor (SKU JA-DAS-9197) is a voltage probe that reports the potential difference between its red and black leads, so several probes can be used in the same circuit without sharing a common ground. With a range of ±6.0 V it suits battery and bulb circuits and low-voltage AC and DC experiments, including series and parallel circuits. This differential voltage sensor is supplied by JaincoLab for school and college physics and electronics laboratories.
Specifications
The probe measures ±6.0 V with 3.1 mV resolution and 0.01% linearity, has an input impedance to ground of 10 Mohm and a differential impedance above 20 Mohm, tolerates up to ±10 V on any input and runs on 5 VDC.
| Product | Differential Voltage Sensor |
| SKU | JA-DAS-9197 |
| Input voltage range | ±6.0 V |
| Maximum voltage on any input | ±10 V |
| Resolution | 3.1 mV |
| Linearity | 0.01% |
| Input impedance to ground | 10 Mohm |
| Differential impedance | Above 20 Mohm |
| Supply voltage | 5 VDC |
Experiments with the differential voltage sensor
Students place probes across different components of a circuit at the same time and log the voltages, showing how voltage divides in series circuits and stays equal in parallel ones.
- Voltage in series and parallel circuits
- Battery and bulb circuit investigations
- Low-voltage AC waveform logging
- Capacitor charging and discharging curves
- Physics and electronics practicals
Scope of supply and ordering
This listing covers one differential voltage sensor with red and black leads. Accessories, spares and quantities are confirmed on the quotation. Data logger and interface cable are confirmed on the quotation.
Minimum order quantity, packing and lead time for the Differential Voltage Sensor are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
What is the voltage range?
±6.0 V, with up to ±10 V allowed on any input.
Why use a differential probe?
It measures the difference between its two leads, so several probes can be used in one circuit.
What is the resolution?
3.1 mV.
