Solar Radiation Sensor Manufacturer,Supplier and Exporter in India
Product Code : JA-DAS-9203

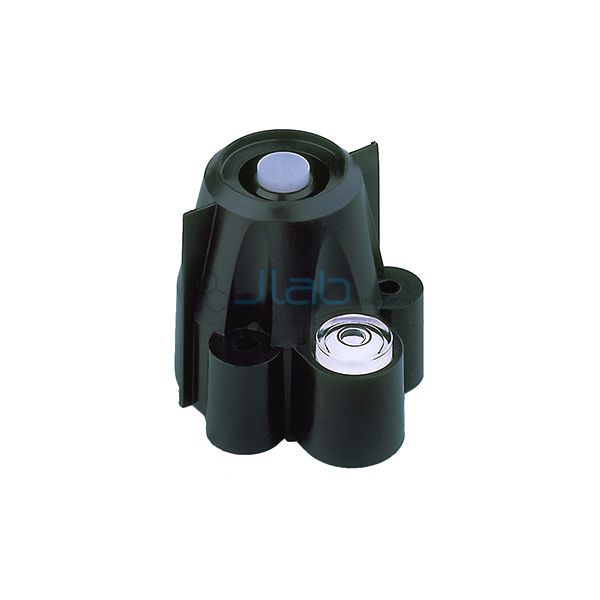

The Solar Radiation Sensor (SKU JA-DAS-9203) is a silicon-photodiode pyranometer that measures global solar radiation, the sum of the direct and diffuse components at the point of measurement. Its hermetically sealed photodiode has a wide spectral response, a cut-off ring gives cosine response, and a level indicator and alignment fins help set it up; an included amplifier converts the photodiode current to 0 to +2.5 VDC. This solar radiation sensor is supplied by JaincoLab for solar energy, environmental and physics laboratories.
Specifications
The sensor uses a hermetically sealed silicon photodiode with a wide spectral response, a cosine-response cut-off ring, a level indicator, alignment fins and a water run-off path, with an amplifier output of 0 to +2.5 VDC; the irradiance range and calibration factor are not listed in the product data and are confirmed on the quotation.
| Product | Solar Radiation Sensor |
| SKU | JA-DAS-9203 |
| Measurement | Global solar radiation (direct plus diffuse) |
| Transducer | Hermetically sealed silicon photodiode, wide spectral response |
| Cosine response | Cut-off ring |
| Set-up aids | Level indicator; fins for sun alignment |
| Output | Amplifier, 0 to +2.5 VDC |
| Weather design | Shield gap gives a run-off path for rain or irrigation water |
Applications of the solar radiation sensor
The sensor is levelled outdoors or beside a solar panel and its voltage logged to follow solar radiation through the day or to compare panel output with the available sunlight.
- Logging global solar radiation over a day
- Solar panel efficiency experiments
- Weather station and environmental monitoring
- Comparing clear and cloudy sky radiation
- Renewable energy practicals
Scope of supply and ordering
This listing covers one solar radiation sensor with its amplifier. Accessories, spares and quantities are confirmed on the quotation. Mounting bracket, cable and data logger are confirmed on the quotation.
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The Solar Radiation Sensor can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
What does the sensor measure?
Global solar radiation - the sum of direct and diffuse radiation at the point of measurement.
What output does it give?
0 to +2.5 VDC from the included amplifier.
Is it suitable for outdoor use?
It has a water run-off path between shield and body and a level indicator for outdoor set-up.
