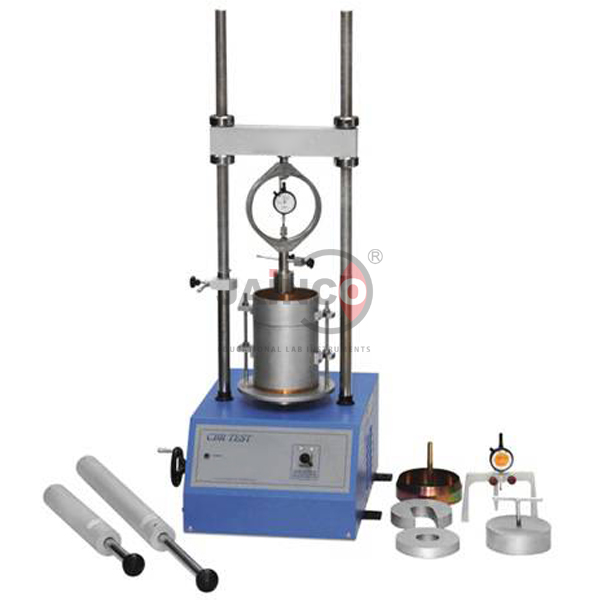

Laboratory California Bearing Ratio Test Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-ST-9812
The Laboratory California Bearing Ratio Test Apparatus (SKU JA-ST-9812) is used for the CBR test, an empirical penetration test that gives the relative bearing ratio and the expansion of base, sub-base and sub-grade soils under a known surcharge weight. Results feed the selection of pavement materials and the control of sub-grades for roads, pavements and runways, chiefly for highway base thickness design.
Specifications
Test data:
| Product | Laboratory California Bearing Ratio Test Apparatus |
| SKU | JA-ST-9812 |
| Test | California Bearing Ratio (CBR) |
| Measures | Relative bearing ratio and expansion under known surcharge weight |
| Materials | Base, sub-base and sub-grade soils |
| Where tested | Laboratory on prepared samples; the test can also be run on location |
| Mould, load frame and proving ring | Confirmed on the quotation |
Scope of supply and ordering
State whether the load frame, proving ring and moulds are needed with the apparatus; the quotation lists each component. Lead time and packing depend on the order size and are confirmed when we quote.
Frequently asked questions
What does the CBR test measure?
It gives the relative bearing ratio and the expansion characteristics of base, sub-base and sub-grade soils under a known surcharge weight.
Is the CBR result valid for any design?
Being empirical, it is valid only for the purpose it was developed for, the design of highway base thickness.
Related products
- California Bearing Ratio Test Apparatus, Field Type
- Compaction Test Apparatus
- Integral Proving Ring
- True Speed Soil Frame
The soil testing equipment range lists further items of this kind.
Request a quote
Send your requirement for the Laboratory California Bearing Ratio Test Apparatus to [email protected] or use the contact page. For tender or project supply, see our tenders page.
