Melting Point Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-SI-6518
The Melting Point Apparatus from Jaincolab is a capillary-tube instrument used to determine the melting point of solid chemical and pharmaceutical samples. As a reliable laboratory equipment manufacturer and exporter, Jaincolab supplies this scientific instrument to chemistry, pharmaceutical, and quality-control laboratories across India and internationally.

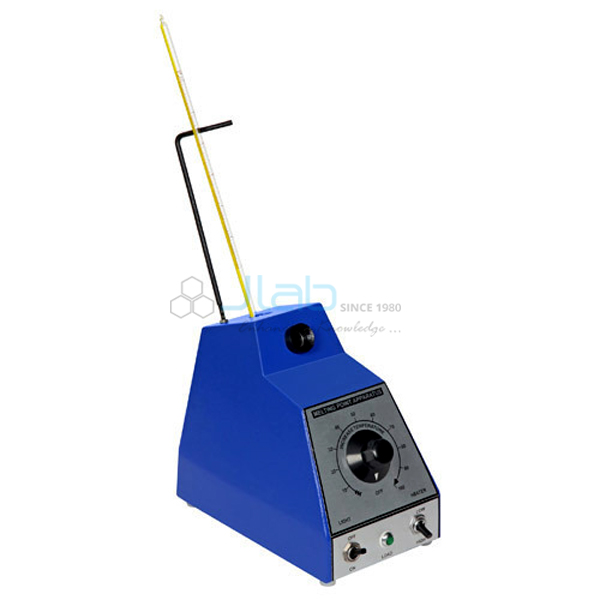

A metallic heating block holds three capillary tubes alongside a stem-type thermometer, with a shadow-less lamp and focusable magnifier letting the operator clearly observe the exact point at which each sample melts. Heating is regulated by an energy regulator, and the whole assembly is housed in an aluminium cast casing with a dedicated control panel, making the apparatus a straightforward addition to any laboratory bench.
Specifications
| Parameter | Detail |
|---|---|
| Product Code | JA-SI-6518 |
| Heating Block | Metallic block with holes for 3 capillary tubes and a stem-type thermometer |
| Maximum Melting Point Range | Up to 350°C |
| Temperature Control | Heating elements with energy regulator |
| Observation Aids | Shadow-less lamp for illumination with a focusable magnifier |
| Body Finish | Epoxy powder coated, housed in an aluminium cast casing with control panel |
| Controls Provided | Indicator lamps, energy regulator, on-off switch, cord and plug |
| Power Supply | 220 / 230V, 50Hz AC |
| Accessories | Supplied without thermometer and capillaries |
Key Features
- Metallic heating block accommodates three capillary tubes with a stem-type thermometer
- Shadow-less lamp and focusable magnifier for clear observation of the melting point
- Energy regulator controlled heating up to 350°C
- Aluminium cast casing with dedicated control panel and indicator lamps
- Epoxy powder-coated finish for durability
- Runs on standard 220/230V, 50Hz AC laboratory supply
Why Choose Jaincolab
Jaincolab is an ISO 9001:2015 and ISO 14001:2015 certified manufacturer and exporter of laboratory and scientific instruments. Laboratories that need an electronic display and automated stirring can instead consider the Digital Melting Point Apparatus, while this capillary-tube version suits routine visual melting point determination. Browse the complete Scientific Instrument range, part of Jaincolab's full Our Product catalogue, for further chemistry and analytical laboratory equipment.
Applications
| Sector | Application |
|---|---|
| Chemistry Laboratories | Melting point determination of solid chemical compounds |
| Pharmaceutical QC Labs | Purity verification of active pharmaceutical ingredients |
| Educational & Training Labs | Teaching melting point determination technique |
| Research Institutes | Characterisation of newly synthesised compounds |
| Quality Control Laboratories | Routine identity and purity checks of raw materials |
Frequently Asked Questions
What is a Melting Point Apparatus used for? It is used to determine the melting point of solid chemical, pharmaceutical, and research samples using capillary tubes.
How many samples can be tested at once? The heating block has holes for 3 capillary tubes alongside a stem-type thermometer, allowing multiple samples to be observed together.
What is the maximum temperature this apparatus can reach? The apparatus can measure melting points up to 350°C.
Are the thermometer and capillary tubes included? No, the apparatus is supplied without a thermometer and capillaries.
What power supply does it require? It operates on a 220/230V, 50Hz AC supply.
How is this different from the Digital Melting Point Apparatus? This model uses a shadow-less lamp and focusable magnifier for visual observation with a stem-type thermometer, while the Digital Melting Point Apparatus provides an electronic PT-100 based digital temperature display with a built-in magnetic stirrer.
Looking to add the Melting Point Apparatus to your laboratory? Request a Quote from Jaincolab today.
