Digital Melting Point Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-SI-6519

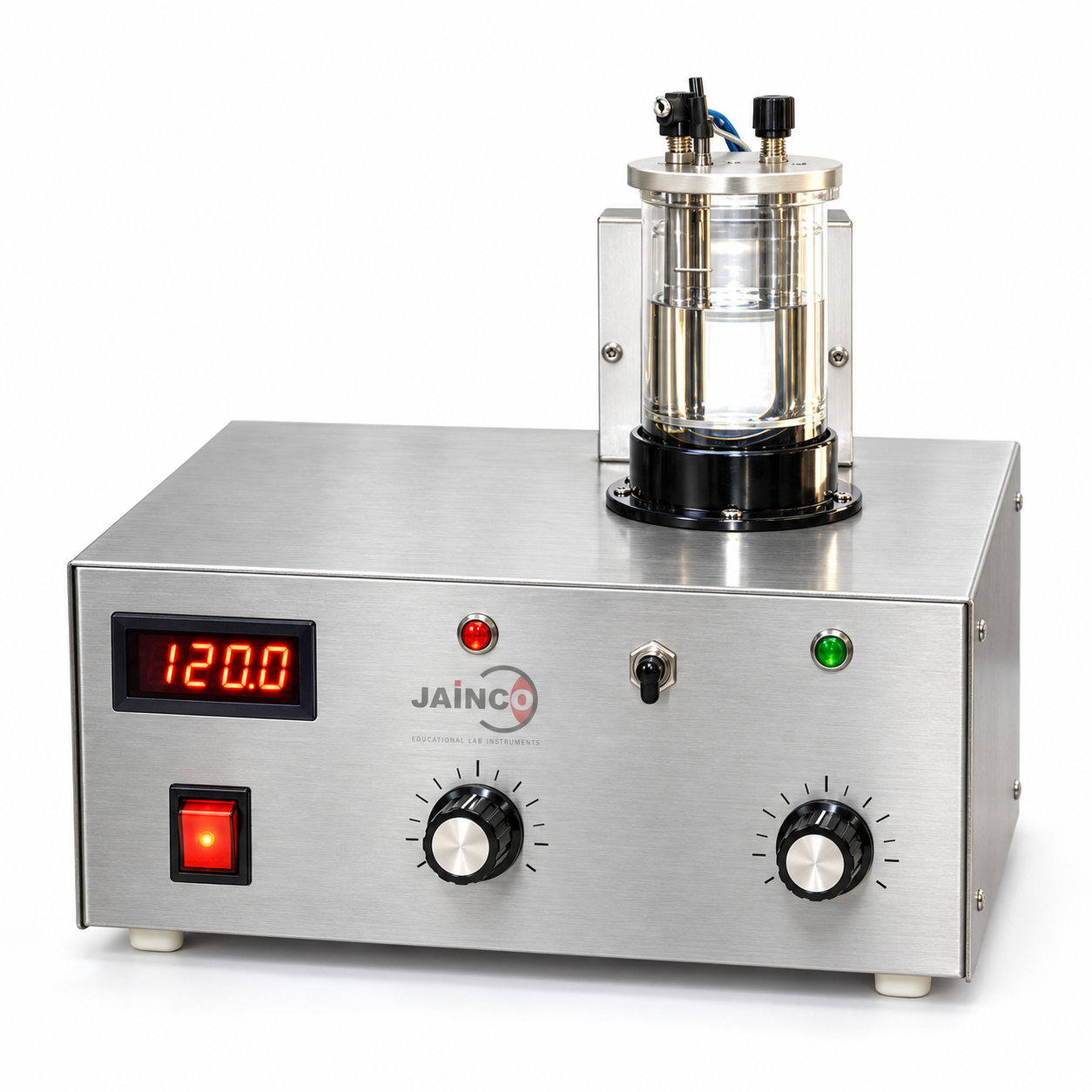

The Digital Melting Point Apparatus from Jaincolab is a compact instrument designed for accurate, electronically monitored determination of the melting points of solid samples. As a dependable laboratory equipment manufacturer and exporter, Jaincolab supplies this scientific instrument to chemistry, pharmaceutical, and quality-control laboratories across India and internationally.
Samples are heated in a cylindrical silicon oil bath with a built-in magnetic stirrer and electronic speed controller for even heat distribution, while an electronic controller lets the operator adjust the heating rate to suit each sample. Temperature is tracked with a PT-100 sensor and shown on a digital display, and a glare-free background light with adjustable intensity, together with a provision for holding the melting point display, makes observation easier for busy laboratory teams.
Specifications
| Parameter | Detail |
|---|---|
| Product Code | JA-SI-6519 |
| Display | 3 Digit LED |
| Heating Rate Control | Electronic |
| Stirrer Speed Control | Electronic |
| Temperature Sensor | PT-100 |
| Heating Bath | Cylindrical silicon oil bath with built-in magnetic stirrer |
| Illumination | Glare-free background light with adjustable light intensity |
Key Features
- Cylindrical silicon oil bath with built-in magnetic stirrer and electronic speed controller
- Electronic controller for adjusting the heating rate to suit each sample
- Digital display of temperature via a PT-100 sensor with 3 Digit LED readout
- Glare-free back-ground light with adjustable light intensity for clearer observation
- Provision for holding the melting point display during testing
Why Choose Jaincolab
Jaincolab is an ISO 9001:2015 and ISO 14001:2015 certified manufacturer and exporter of laboratory and scientific instruments. Laboratories that prefer a simpler visual capillary-tube method can instead consider the Melting Point Apparatus. Browse the complete Scientific Instrument range, part of Jaincolab's full Our Product catalogue, for further chemistry and analytical laboratory equipment.
Applications
| Sector | Application |
|---|---|
| Chemistry Laboratories | Accurate melting point determination of solid chemical compounds |
| Pharmaceutical QC Labs | Purity verification of active pharmaceutical ingredients |
| Research Institutes | Characterisation of newly synthesised compounds |
| Educational & Training Labs | Teaching digital melting point determination technique |
| Quality Control Laboratories | Routine identity and purity checks of raw materials |
Frequently Asked Questions
What is a Digital Melting Point Apparatus used for? It is used to determine the melting point of solid chemical, pharmaceutical, and research samples with electronic temperature monitoring.
How is temperature measured on this apparatus? Temperature is measured using a PT-100 sensor and shown on a 3 Digit LED digital display.
Does the apparatus include a stirring mechanism? Yes, it has a built-in magnetic stirrer in the silicon oil bath with an electronic speed controller.
Can the heating rate be adjusted? Yes, an electronic controller allows the heating rate to be adjusted for each sample.
What type of heating bath does it use? It uses a cylindrical silicon oil bath with glare-free, adjustable background lighting for clear observation.
How is this different from the standard Melting Point Apparatus? This model gives an electronic PT-100 based digital temperature display with a built-in magnetic stirrer, while the standard Melting Point Apparatus uses a shadow-less lamp, focusable magnifier, and a stem-type thermometer for visual observation.
Looking to add the Digital Melting Point Apparatus to your laboratory? Request a Quote from Jaincolab today.
