Semiconductor Diode and PN Junction Diode Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-SCD-1082

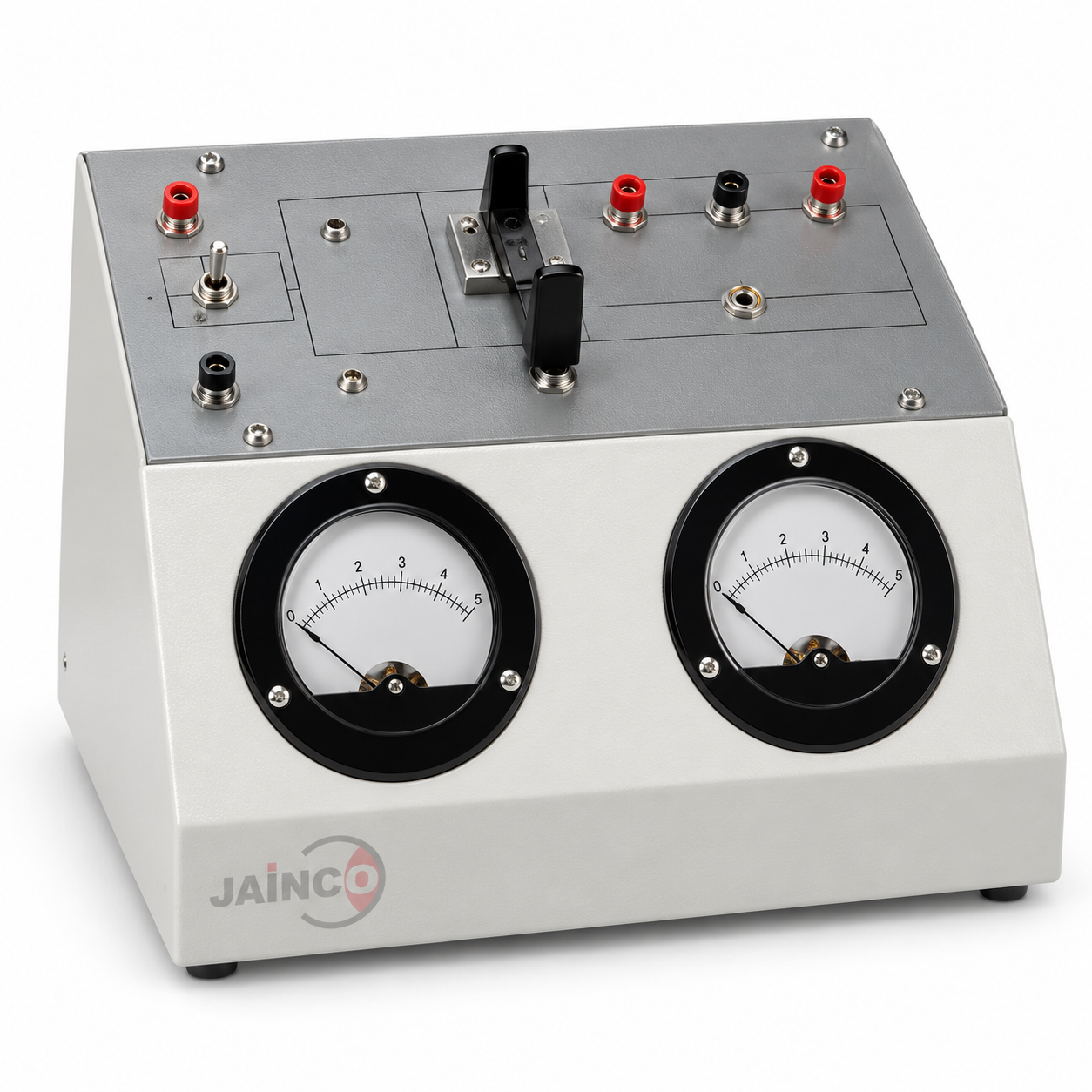

The Semiconductor Diode and PN Junction Diode Apparatus (SKU JA-SCD-1082) is used to study the forward and reverse characteristics of a PN junction diode. For the forward curve a 0-1 V DC, 200 mA supply is used, and for the reverse curve a 0-50 V DC, 2 mA supply; two meters read voltage and current. The diodes are mounted with their connections brought out to terminals.
Specifications
The listing gives these details:
| Product | Semiconductor Diode and PN Junction Diode Apparatus |
| SKU | JA-SCD-1082 |
| DC supply 1 | 0-50 V, 2 mA |
| DC supply 2 | 0-1 V, 200 mA |
| Meters | Two, voltage and current |
| Diodes | PN junction, mounted, connections on terminals |
| Size | 10 x 8 x 4 in |
Scope of supply and ordering
One apparatus per order line.
Frequently asked questions
What does the PN junction diode apparatus study?
The forward and reverse characteristics of a PN junction diode.
Which supplies are provided?
0-50 V DC at 2 mA and 0-1 V DC at 200 mA.
Related products
- Zener Diode Characteristics Apparatus Forward and Reverse V-I Characteristics
- PN Junction and Zener Diode Characteristics Apparatus Forward and Reverse V-I Characteristics
- Energy Band Gap of PN Junction Diode
- LED Characteristics Apparatus
Semiconductor apparatus is listed in our scientific instrument range.
Request a quote
For the PN junction diode apparatus, send the quantity via our contact page. Buying under a laboratory tender? Use our tenders page.
