Study of 4 Bit Ripple Counter Forward and Reverse Manufacturer,Supplier and Exporter in India
Product Code : JA-DEECP-1173

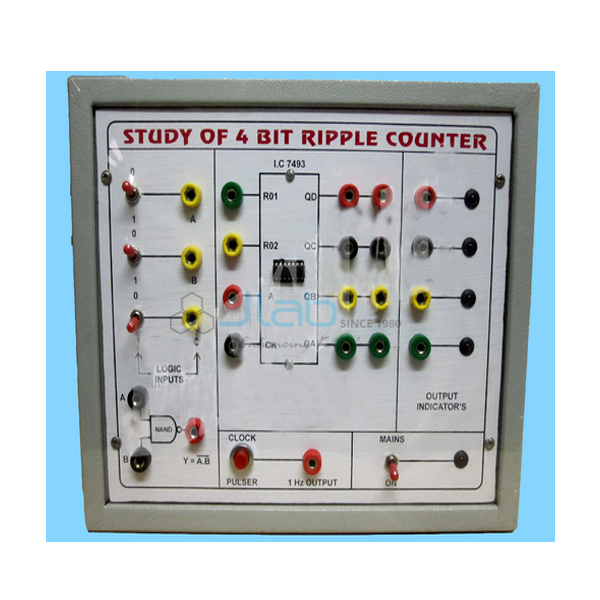

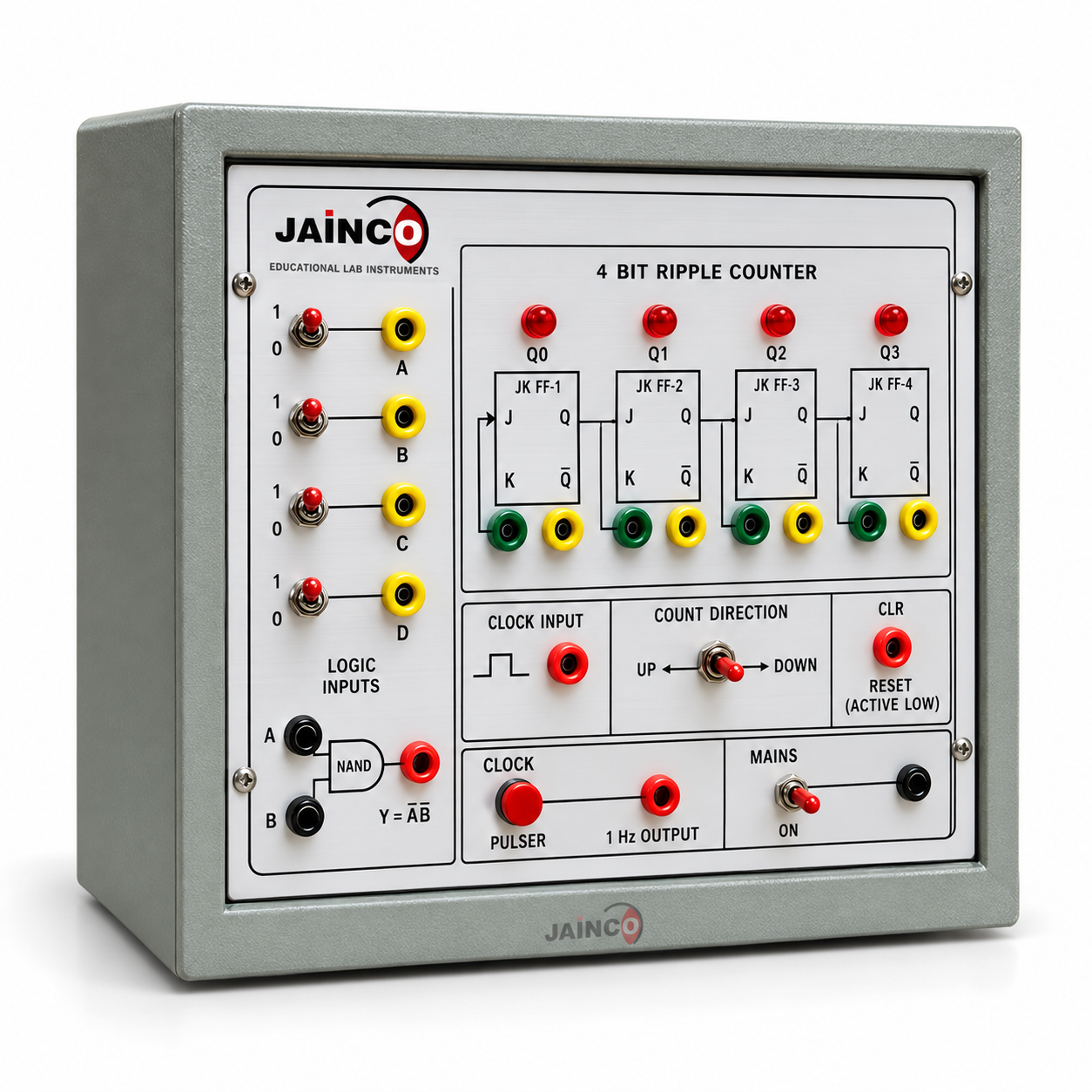

The Jaincolab Study of 4 Bit Ripple Counter Forward and Reverse trainer is a digital electronics apparatus built to demonstrate asynchronous (ripple) counter operation using JK flip-flops connected in cascade. The instrument uses 4 JK Flip-Flops wired so that each flip-flop toggles on the clock transition of the previous stage, letting students verify the truth tables of both forward (up) and reverse (down) counting sequences on LED output indicators. It is manufactured and supplied by Jaincolab, a scientific instrument manufacturer based in Ambala, Haryana, for engineering and polytechnic institutions across India and internationally.
Instrument Specifications
| Parameter | Specification |
|---|---|
| Flip-Flop Stages | 4 JK Flip-Flops, cascaded (ripple / asynchronous) |
| Counting Modes | Forward (up) and Reverse (down) counting |
| Count Range | 0 to 15 (4-bit, 16 states) |
| Output Indication | LED indicators for each flip-flop output |
What a Ripple Counter States
| Concept | Explanation |
|---|---|
| Ripple (Asynchronous) Counter | Each flip-flop's clock input is driven by the output of the previous flip-flop, so the count "ripples" through the stages |
| Forward Counting | Flip-flop outputs (Q) are cascaded to the next clock input, counting up from 0000 to 1111 |
| Reverse Counting | Complemented outputs (Q′) are cascaded to the next clock input, counting down from 1111 to 0000 |
Key Features
- Demonstrates both forward and reverse 4-bit ripple counting using 4 cascaded JK flip-flops
- LED indicators on each stage for direct truth-table verification
- Illustrates the propagation delay characteristic of asynchronous counter design
- Compact trainer-board construction suited to repeated classroom and laboratory use
- Manufactured by Jaincolab for engineering, polytechnic and diploma digital electronics laboratories
Why Choose Jaincolab
Jaincolab is a direct manufacturer of digital electronics trainer kits, not a reseller, supplying engineering and polytechnic institutions across India and internationally. This ripple counter trainer sits alongside related counter and coding-circuit trainers in the same range, including the Study of 4 Bit Binary to Gray Code Convertor and the 4 Bit Up and Down Counter using IC 74193, all part of Jaincolab's broader Scientific Instrument range for engineering and applied-physics laboratories.
Applications
| Setting | Typical Use |
|---|---|
| Engineering / polytechnic digital electronics lab | Verifying forward and reverse ripple counter truth tables |
| Computer science / computer principles lab | Teaching sequential logic and flip-flop cascading fundamentals |
| Diploma electronics workshop | Hands-on JK flip-flop counter wiring practice |
Frequently Asked Questions
Q: What does this trainer demonstrate?
A: It demonstrates a 4-bit asynchronous (ripple) counter built from 4 cascaded JK flip-flops, letting students verify both forward and reverse counting truth tables.
Q: What is the difference between a ripple counter and a synchronous counter?
A: In a ripple counter, each flip-flop is clocked by the previous stage's output, causing a small propagation delay per stage; in a synchronous counter all flip-flops share a common clock.
Q: How many states does this counter cover?
A: Being a 4-bit counter, it covers all 16 states from 0000 to 1111 in both forward and reverse directions.
Q: What certification does Jaincolab hold for its manufacturing?
A: Jaincolab holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Q: How can I get a quotation for this trainer?
A: Share the quantity required and your delivery destination with Jaincolab's sales team, and a quotation will be issued for this trainer along with any related digital electronics trainers you need.
Request a Quote
For pricing, bulk orders or technical questions on the Study of 4 Bit Ripple Counter Forward and Reverse, contact Jaincolab's team with your item list, quantities and delivery destination.
