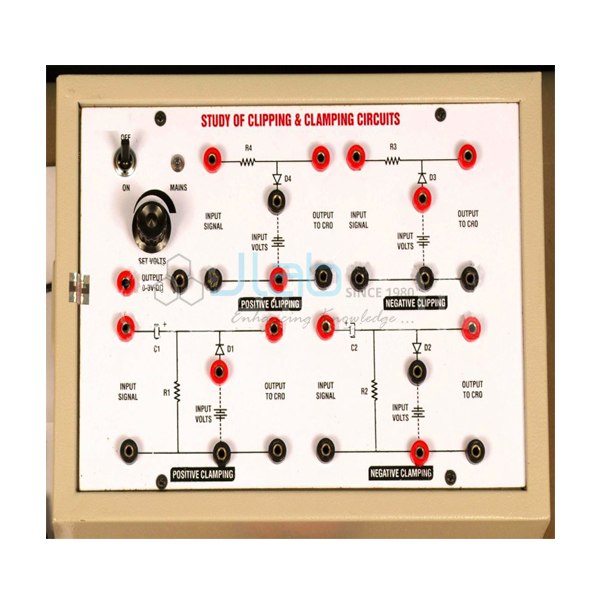

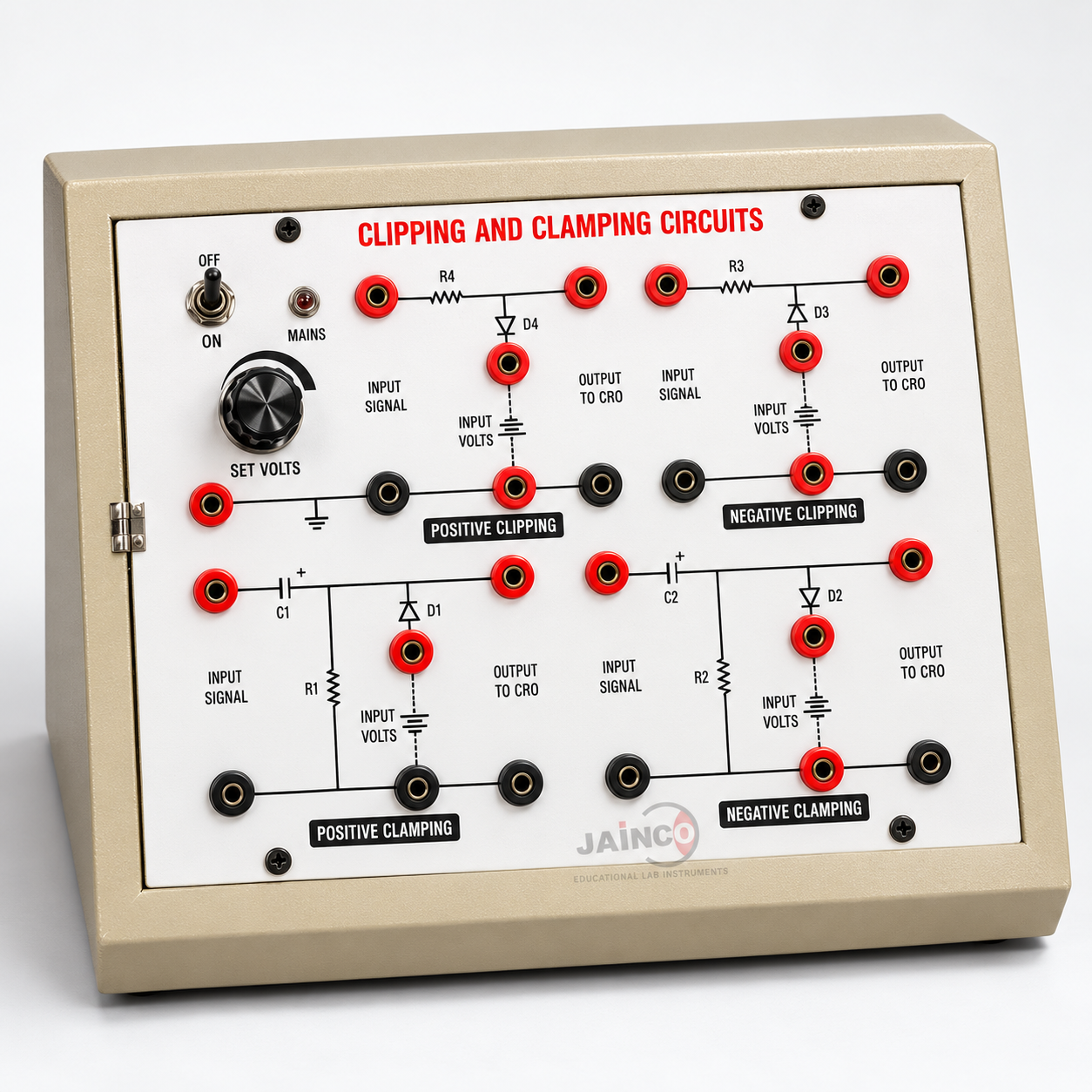

The Study of Operational Amplifier as Clipping and Clamping Circuit instrument from Jaincolab demonstrates two related but distinct waveform-shaping techniques: clamping a signal to a fixed DC level and clipping away a portion of a waveform, both essential concepts in analogue signal conditioning.
As a Scientific Instrument manufacturer in India, Jaincolab designs this trainer so students can see how a clamping circuit places either the positive or negative peak of a signal at a desired DC level, and how a clipping circuit - also known as a limiter - shapes an applied waveform by removing part of it, supporting electronics lab equipment practicals on waveform shaping.
What the Clipping and Clamping Circuits State
| Circuit | Behaviour Demonstrated |
|---|---|
| Clamping Circuit | Places either the positive or negative peak of a signal at a desired DC level |
| Clipping Circuit | Shapes the applied waveform by removing or clipping a portion of it; also known as a limiter |
| Product Code | JA-COA-1143 |
Key Features
- Demonstrates both clamping and clipping circuit behaviour on one trainer
- Shows how a clamping circuit fixes a signal's peak at a chosen DC level
- Illustrates limiter-style waveform shaping through clipping
- Useful for teaching practical signal conditioning concepts
- Manufactured by Jaincolab for reliable, repeatable classroom demonstration
Why Choose Jaincolab
As a leading Scientific Instrument Manufacturer, Supplier, and Exporter in India, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified and supplies electronics and physics lab apparatus to schools, colleges, and universities across India and internationally. This trainer pairs well with our Study of Operational Amplifier as Square to Triangular and Triangular to Square Wave Converter and Study of Operational Amplifier as Sine to Square Wave Converter trainers. Browse Scientific Instrument for more electronics and physics laboratory equipment.
Applications
| Application Area | Use Case |
|---|---|
| Physics & Electronics Labs | Demonstrating clipping and clamping waveform shaping |
| Engineering Colleges | Coursework on signal conditioning and limiter circuits |
| Vocational & Diploma Institutes | Hands-on training in clamping and clipping circuit design |
| Research & Demonstration | Illustrating DC level shifting and waveform limiting |
Frequently Asked Questions
Q1. What is a clamping circuit?
A clamping circuit is one that places either the positive or negative peak of a signal at a desired DC level.
Q2. What is a clipping circuit?
A clipping circuit shapes an applied waveform by removing or clipping a portion of it; it is also known as a limiter.
Q3. Why are clipping and clamping studied together?
Both are fundamental waveform-shaping techniques used in analogue signal conditioning, and studying them together highlights their differences.
Q4. Who is this instrument suited for?
It suits physics and electronics students studying waveform shaping and signal conditioning at school, college, and university level.
Q5. Is Jaincolab a certified manufacturer of this instrument?
Yes, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified for the manufacture of scientific and laboratory instruments.
