Study of Operational Amplifier as Voltage Comparator Manufacturer,Supplier and Exporter in India
Product Code : JA-COA-1144

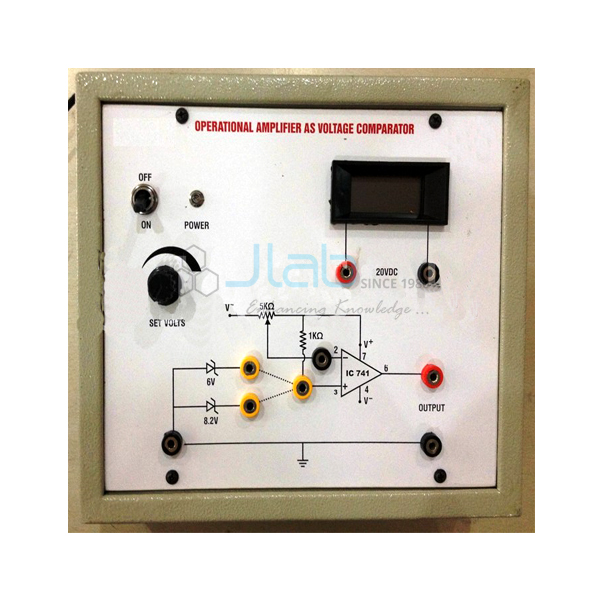

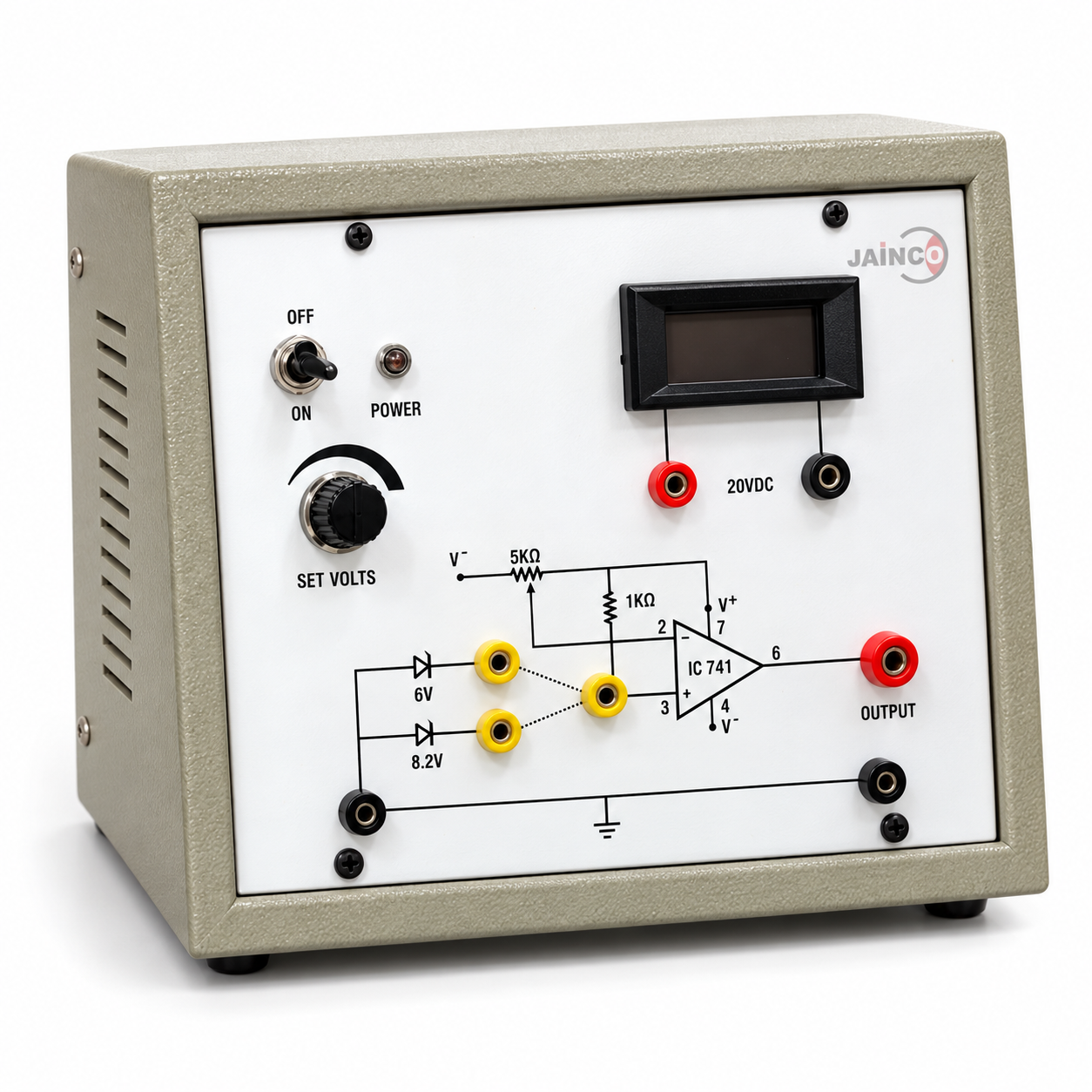

The Study of Operational Amplifier as Voltage Comparator apparatus (SKU JA-COA-1144) is used to compare an input voltage with a reference and observe the op-amp output switch as the input crosses it. An IC 741, a zener diode and a combination of resistances are connected inside, a +15 V DC regulated power supply and one meter are built in, and the connections are brought out to terminals for probing.
Specifications
Parts and supply as listed:
| Product | Study of Operational Amplifier as Voltage Comparator |
| SKU | JA-COA-1144 |
| IC | 741, connected internally |
| Components | Zener diode and a combination of resistances |
| Power supply | +15 V DC regulated |
| Meter | One |
| Connections | Terminals |
Scope of supply and ordering
Supplied as one unit with its supply and meter.
Frequently asked questions
Which op-amp is used in the comparator apparatus?
An IC 741, with a zener diode and resistances connected inside.
What supply does it have?
A +15 V DC regulated power supply, with one meter for readings.
