Study of 4-16 One input and Sixteen output Demultiplexer using IC 74154 Manufacturer,Supplier and Exporter in India
Product Code : JA-DEECP-1188

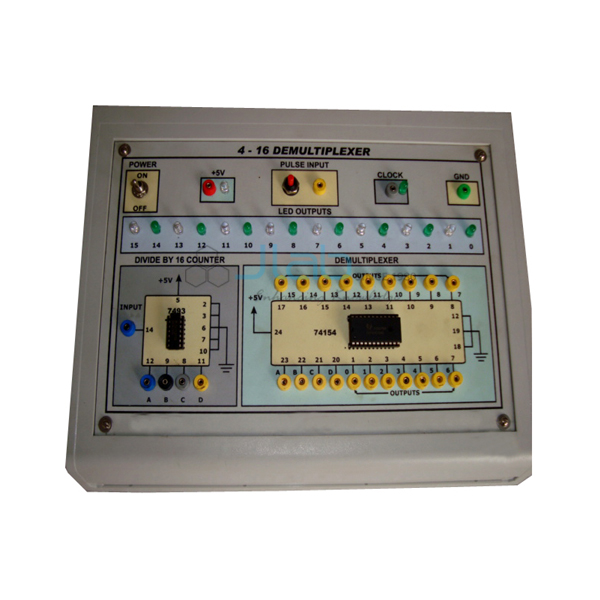

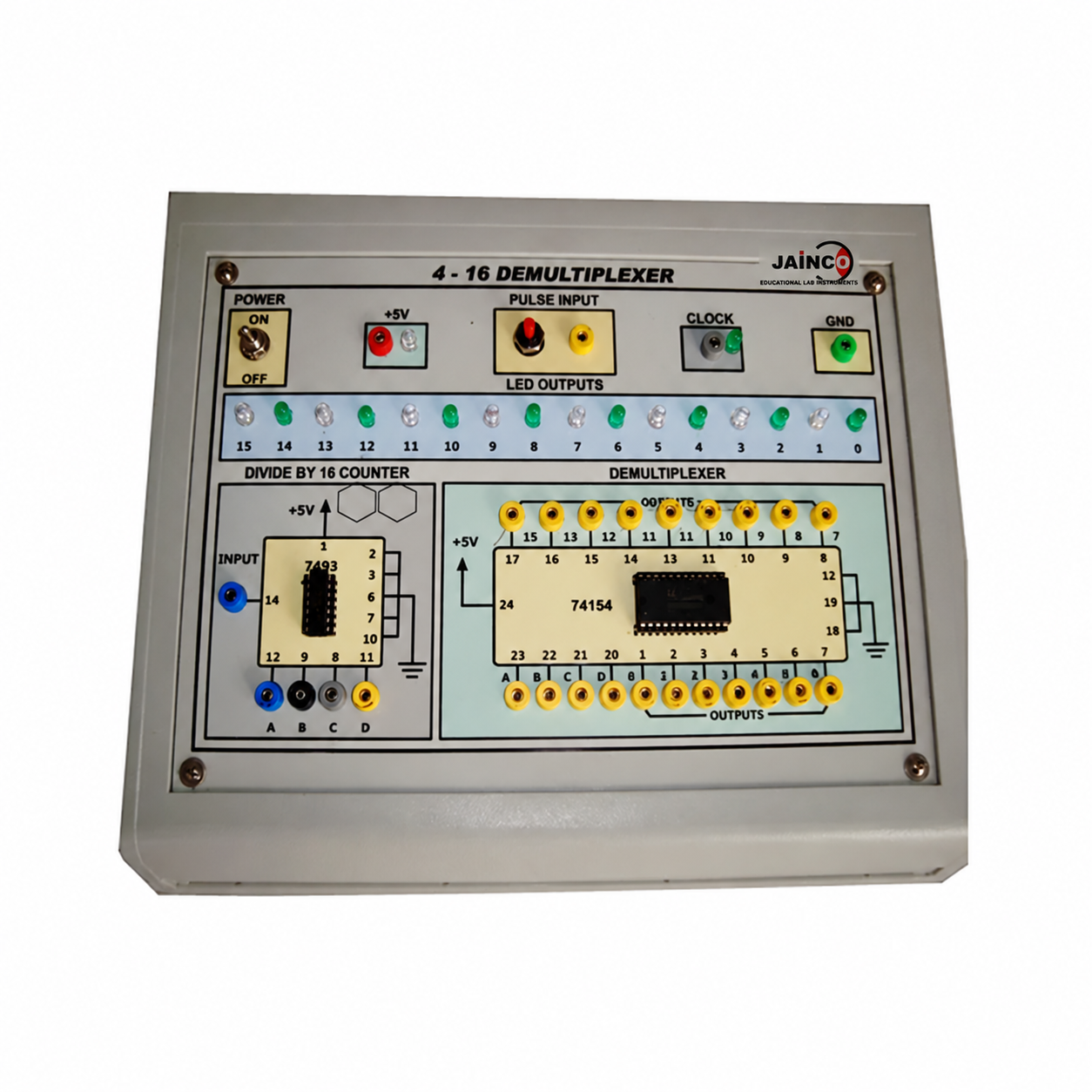

The Jaincolab Study of 4-16 One Input and Sixteen Output Demultiplexer using IC 74154 is a digital electronics trainer built around the 74154, a 4-to-16 line decoder/demultiplexer IC with four binary-weighted address inputs (A0 to A3) and sixteen mutually exclusive outputs (Y0 to Y15). One of the IC's enable inputs is used as the multiplexed data input, so students can study how the device functions as a 4-to-16 demultiplexer as well as a decoder. It is manufactured and supplied by Jaincolab, a scientific instrument manufacturer based in Ambala, Haryana, for engineering and polytechnic institutions across India and internationally.
What This 4-to-16 Demultiplexer States
| Parameter | Description |
|---|---|
| IC Used | 74154, 4-to-16 line decoder/demultiplexer |
| Address Inputs | 4 binary-weighted address inputs (A0 to A3) |
| Outputs | 16 mutually exclusive outputs (Y0 to Y15) |
| Demultiplexer Mode | One of the two enable inputs is used as the multiplexed data input for 4-to-16 demultiplexer operation |
| Logic Family | TTL (Transistor-Transistor Logic) |
Key Features
- Demonstrates 4-to-16 decoder and demultiplexer operation using the 74154 TTL IC
- Allows verification of all sixteen address-input combinations against the decoder truth table
- Shows how an enable input can be used as the data input for demultiplexer operation
- Switch inputs for address lines, with direct output verification
- Manufactured by Jaincolab for engineering, polytechnic and diploma digital electronics laboratories
Why Choose Jaincolab
Jaincolab is a direct manufacturer of digital electronics trainer kits, not a reseller, supplying engineering and polytechnic institutions across India and internationally. This trainer sits alongside related decoder/demultiplexer and multiplexer trainers in the same range, including the Study of 1-4 Demultiplexer using IC 74155 and the Study of 16-1 Multiplexer using IC-74150, all part of Jaincolab's broader Scientific Instrument range for engineering and applied-physics laboratories.
Applications
| Setting | Typical Use |
|---|---|
| Engineering / polytechnic digital electronics lab | Verifying 4-to-16 decoder/demultiplexer truth table and IC 74154 pin functions |
| Computer science / computer principles lab | Teaching address decoding and single-input to multiple-output data routing |
| Diploma electronics workshop | Hands-on wiring and testing practice with TTL decoder/demultiplexer ICs |
Frequently Asked Questions
Q: What does this trainer demonstrate?
A: It demonstrates 4-to-16 decoding and demultiplexing using the 74154 IC, with four address inputs selecting one of sixteen output lines.
Q: Which IC is used in this demultiplexer study module?
A: The module uses the 74154, a 4-to-16 line decoder/demultiplexer IC from the TTL logic family.
Q: Is this trainer suitable for engineering and polytechnic laboratories?
A: Yes, it is designed for engineering, polytechnic and diploma-level digital electronics laboratory courses covering decoders and demultiplexers.
Q: What certification does Jaincolab hold for its manufacturing?
A: Jaincolab holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Q: How can I get a quotation for this trainer?
A: Share the quantity required and your delivery destination with Jaincolab's sales team, and a quotation will be issued for this trainer along with any related digital electronics trainers you need.
Request a Quote
For pricing, bulk orders or technical questions on the Study of 4-16 One Input and Sixteen Output Demultiplexer using IC 74154, contact Jaincolab's team with your item list, quantities and delivery destination.
