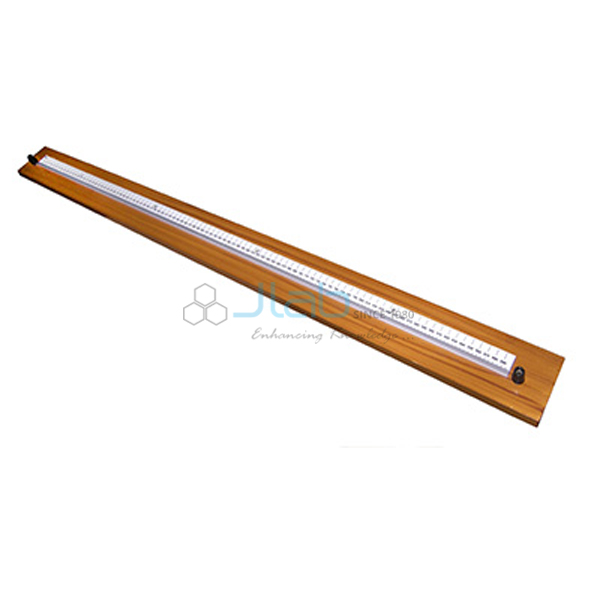

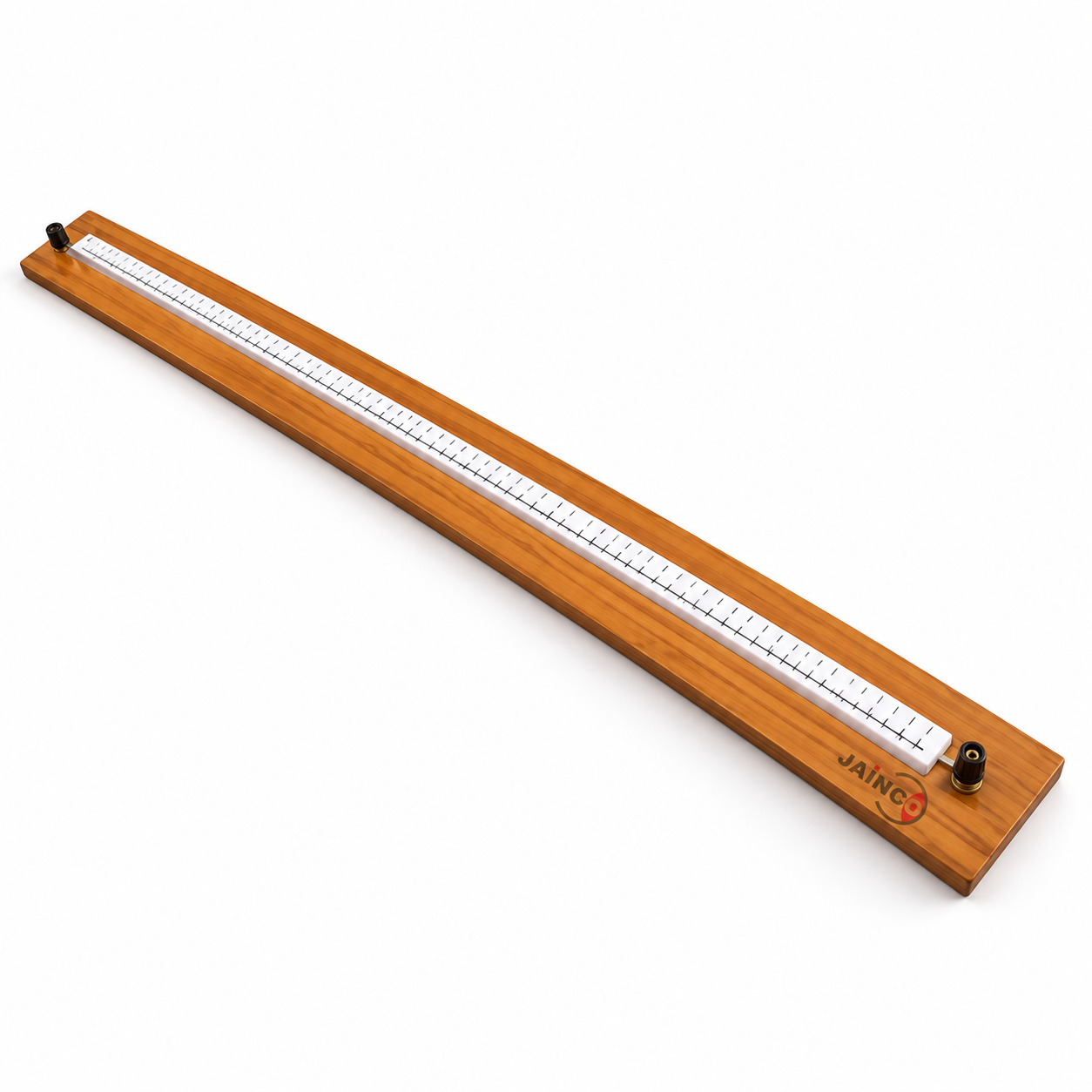

Potentiometer with Pencil Jockey Manufacturer,Supplier and Exporter in India
Product Code : JA-SI-8111
The Potentiometer with Pencil Jockey from Jaincolab comprises four constantan wires of 24 SWG, one meter long, clamped under heavy brass strips of SWG 18 and fitted by screws so that it is easily replaceable with negligible end errors. As a leading physics laboratory equipment manufacturer and exporter, Jaincolab supplies this scientific instrument to schools, colleges, and research institutions across India and internationally.
Each block is fitted with a heavy lock type brass terminal, mounted on an 18 mm thick ply wooden board with mica on top. The four wires are stretched along both ends of two full meter scales. Overall dimensions are 1.12 m x 100 mm x 50 mm high, including terminals. It is supplied complete with a pencil jockey, along with leads for connections and a detailed working manual.
This model is also available in Potentiometer 4 Wire with Pencil Jockey and Potentiometer 10 Wire with Pencil Jockey capacity variants.
Key Features / Specifications
| Feature | Specification |
|---|---|
| Wires | Four constantan wires, 24 SWG, one meter long |
| Clamping | Heavy brass strips of SWG 18, screw-fitted, easily replaceable |
| Terminals | Heavy lock type brass terminal per block |
| Board | 18 mm thick ply wooden board with mica on top |
| Scale | Two full meter scales along both ends |
| Overall Dimensions | 1.12 m x 100 mm x 50 mm high, including terminals |
| Accessories | Pencil jockey, connection leads, and working manual |
Why Choose Jaincolab
Jaincolab is an ISO 9001:2015 and ISO 14001:2015 certified manufacturer and exporter of physics and electrical laboratory instruments. Pair the Potentiometer with Pencil Jockey with the Standard Cell or the Resistance P.O. Box for EMF and potentiometer experiments. Browse the complete Scientific Instrument range, part of Jaincolab's full Our Product catalogue.
Applications
| Sector | Application |
|---|---|
| Schools and Colleges | EMF comparison and potentiometer experiments in physics practicals |
| Engineering Institutions | Precision voltage measurement using a slide-wire potentiometer |
| Research Laboratories | Low end-error voltage comparison measurements |
Frequently Asked Questions
What wires does the Potentiometer with Pencil Jockey use? It comprises four constantan wires of 24 SWG, one meter long.
How are the wires clamped? They are clamped under heavy brass strips of SWG 18 and fitted by screws, making them easily replaceable with negligible end errors.
What are the overall dimensions? The overall dimensions are 1.12 m x 100 mm x 50 mm high, including terminals.
What accessories are supplied? It is supplied complete with a pencil jockey, connection leads, and a detailed working manual.
Is it available in other capacities? Yes, it is also available as Potentiometer 4 Wire with Pencil Jockey and Potentiometer 10 Wire with Pencil Jockey.
Is Jaincolab a certified manufacturer? Yes, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified.
Looking to add the Potentiometer with Pencil Jockey to your physics laboratory? Request a Quote from Jaincolab today.
