Biasing of Transistor BJT Manufacturer,Supplier and Exporter in India
Product Code : JA-AK-1124

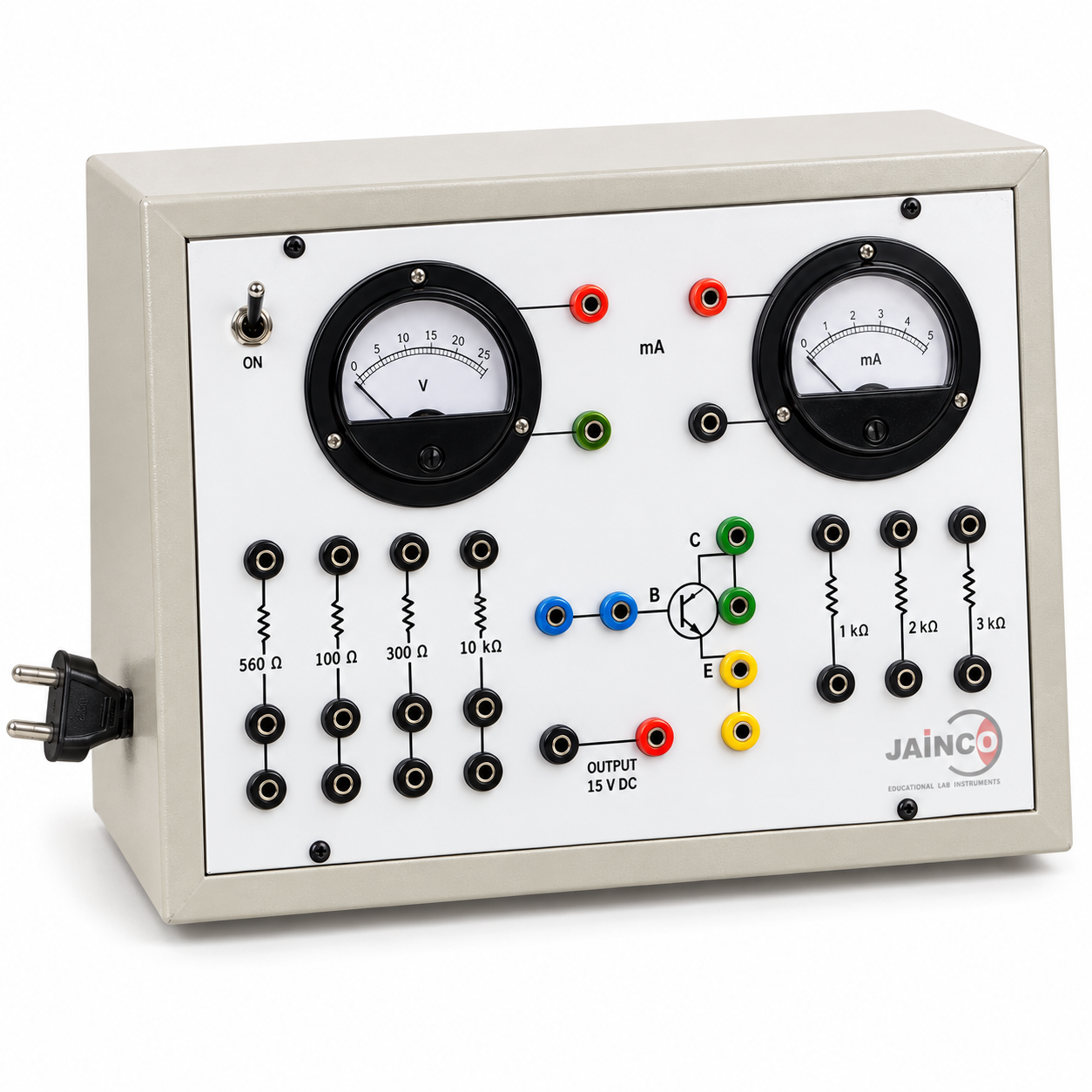

The Biasing of Transistor BJT apparatus from Jaincolab is an electronics lab experiment set for studying the four standard BJT biasing circuits: Fixed Bias, Collector-to-Base Bias, Emitter Resistor Bias, and Voltage Divider Bias. It gives students a single, wired platform to compare how each biasing method sets the transistor's operating point.
As a Scientific Instrument manufacturer in India, Jaincolab builds this apparatus around a built-in DC regulated power supply and an NPN transistor, with dedicated voltage and current meters and terminal-brought connections so students can measure and compare bias-point stability across biasing circuits in physics and electronics lab equipment sessions.
Specifications
| Item | Detail |
|---|---|
| Biasing Circuits Studied | Fixed Bias, Collector-to-Base Bias, Emitter Resistor Bias, Voltage Divider Bias |
| Power Supply | Built-in DC regulated power supply |
| Transistor | One NPN transistor |
| Meters | Two meters for voltage and current measurement |
| Circuit Components | Different resistances connected internally, with connections brought out to terminals |
| Dimensions | 8" x 6" x 4" |
| Product Code | JA-AK-1124 |
Key Features
- Four standard BJT biasing circuits available on a single, compact unit
- Built-in DC regulated power supply, no external power unit required
- Dedicated voltage and current meters for direct bias-point measurement
- Terminal-brought connections for quick circuit reconfiguration between biasing methods
- Manufactured by Jaincolab for consistent, reliable classroom results
Why Choose Jaincolab
As a leading Scientific Instrument Manufacturer, Supplier, and Exporter in India, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified and supplies electronics and physics lab apparatus to schools, colleges, and universities across India and internationally. This apparatus pairs well with our other semiconductor and amplifier experiments, including FET Common Source Amplifier, Push Pull Amplifier, and Characteristics Operational Amplifiers. Browse our full Semi Conductor Devices range or explore Scientific Instrument for more electronics and physics laboratory equipment.
Applications
| Application Area | Use Case |
|---|---|
| Physics & Electronics Labs | Comparing BJT biasing methods and operating-point stability |
| Engineering Colleges | Undergraduate coursework on transistor biasing and Q-point design |
| Vocational & Diploma Institutes | Hands-on training in analog electronics fundamentals |
| Research & Demonstration | Comparative study of bias stability across circuit topologies |
Frequently Asked Questions
Q1. What does the Biasing of Transistor BJT apparatus demonstrate?
It demonstrates and compares Fixed Bias, Collector-to-Base Bias, Emitter Resistor Bias, and Voltage Divider Bias circuits for a BJT.
Q2. Does this apparatus include a power supply?
Yes, it has a built-in DC regulated power supply, so no external power unit is required.
Q3. What measurements can students take with this apparatus?
Students can measure voltage and current at the transistor's operating point using the two built-in meters.
Q4. What are the dimensions of this apparatus?
The apparatus measures 8" x 6" x 4".
Q5. Is Jaincolab a certified manufacturer of this instrument?
Yes, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified for the manufacture of scientific and laboratory instruments.
