R.C. Coupled Amplifier Two Stage Manufacturer,Supplier and Exporter in India
Product Code : JA-AK-1125

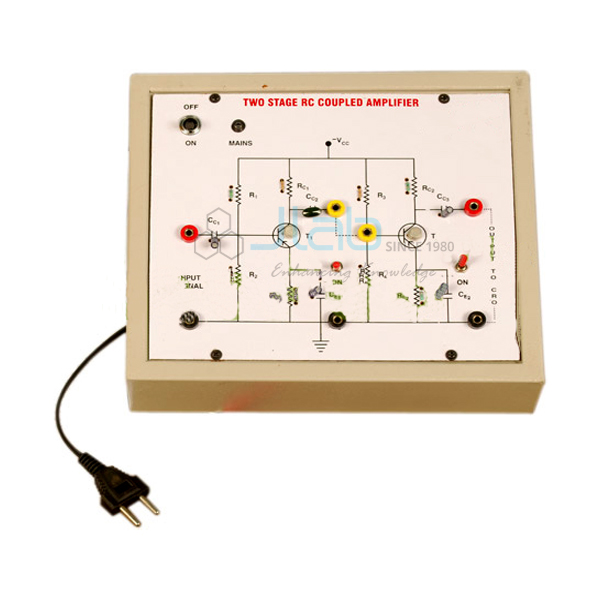

The R.C. Coupled Amplifier Two Stage apparatus from Jaincolab is an electronics lab experiment set for studying the voltage gain and frequency response of a two-stage RC (resistance-capacitance) coupled transistor amplifier. Two transistors are mounted on the front panel with a built-in DC regulated power supply, giving students a complete platform to trace the combined gain-frequency characteristic of a cascaded amplifier.
As a Scientific Instrument manufacturer in India, Jaincolab supplies this apparatus for use with a Function Generator, VTVM, and CRO so students can measure input/output signals at each stage and understand how RC coupling affects overall bandwidth in physics and electronics lab equipment sessions.
Specifications
| Item | Detail |
|---|---|
| Parameters Studied | Voltage gain and frequency response of a two-stage RC coupled transistor amplifier |
| Transistors | Two transistors mounted on the front panel |
| Power Supply | Built-in DC regulated power supply |
| Optional Accessories | Function Generator (TE-93), VTVM, CRO |
| Product Code | JA-AK-1125 |
Key Features
- Two-stage cascaded transistor amplifier circuit mounted on a single front panel
- Built-in DC regulated power supply, no external power unit required
- Compatible with a Function Generator, VTVM, and CRO for complete gain-frequency measurement
- Clear panel layout that helps students trace signal flow across both amplifier stages
- Manufactured by Jaincolab for consistent, reliable classroom results
Why Choose Jaincolab
As a leading Scientific Instrument Manufacturer, Supplier, and Exporter in India, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified and supplies electronics and physics lab apparatus to schools, colleges, and universities across India and internationally. This apparatus pairs well with our other amplifier and biasing experiments, including Biasing of Transistor BJT, FET Common Source Amplifier, Push Pull Amplifier, and Characteristics Operational Amplifiers. Browse our full Amplifiers Kits range or explore Scientific Instrument for more electronics and physics laboratory equipment.
Applications
| Application Area | Use Case |
|---|---|
| Physics & Electronics Labs | Studying two-stage RC coupled amplifier gain and frequency response |
| Engineering Colleges | Undergraduate coursework on multistage amplifier design |
| Vocational & Diploma Institutes | Hands-on training in cascaded amplifier circuits |
| Research & Demonstration | Comparative study of single-stage versus multistage amplifier bandwidth |
Frequently Asked Questions
Q1. What does the R.C. Coupled Amplifier Two Stage apparatus demonstrate?
It demonstrates the voltage gain and frequency response of a two-stage RC coupled transistor amplifier.
Q2. Does this apparatus include a power supply?
Yes, it has a built-in DC regulated power supply, so no external power unit is required.
Q3. What accessories are recommended with this apparatus?
A Function Generator (TE-93), VTVM, and CRO are recommended for complete gain-frequency measurement.
Q4. How many transistors does this apparatus use?
The apparatus uses two transistors mounted on the front panel to form the two amplifier stages.
Q5. Is Jaincolab a certified manufacturer of this instrument?
Yes, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified for the manufacture of scientific and laboratory instruments.
Request a Quote
Contact Jaincolab at [email protected] or +91-85699-09696 to request a quote for the R.C. Coupled Amplifier Two Stage apparatus or any other Scientific Instrument for your laboratory.
