SCR Characteristics Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-SCD-1080

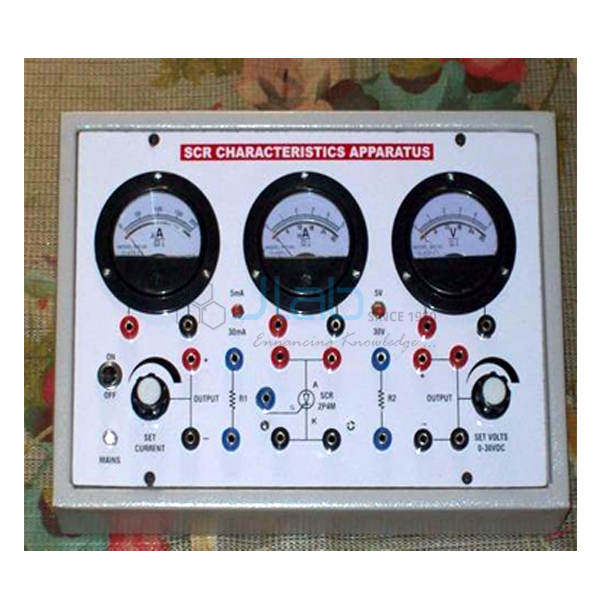

The SCR Characteristics Apparatus (SKU JA-SCD-1080) is used to plot the anode current of a silicon controlled rectifier against its anode-cathode voltage. The SCR is mounted on the panel with its connections on terminals. A 0-3 V DC, 50 mA supply and a 0-150 V DC supply are built in, and three meters give the voltage and current readings, so the forward blocking and conducting regions can be traced.
Specifications
The listing gives these details:
| Product | SCR Characteristics Apparatus |
| SKU | JA-SCD-1080 |
| Device | SCR on panel, connections on terminals |
| DC supply 1 | 0-3 V, 50 mA |
| DC supply 2 | 0-150 V |
| Meters | Three |
| Size | 15 x 8 x 4 in |
Scope of supply and ordering
One apparatus per order line.
Frequently asked questions
What does the SCR Characteristics Apparatus plot?
Anode current against anode-cathode voltage of the SCR.
What supplies are built in?
0-3 V DC at 50 mA and 0-150 V DC, with three meters.
