Triac Characteristics Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-SCD-1097
Jaincolab manufactures and exports the Triac Characteristics Apparatus (Product Code JA-SCD-1097), built to study the MT characteristics of a Triac with gate signal triggering. As a Scientific Instrument manufacturer and exporter based in Ambala, Haryana, Jaincolab supplies this apparatus to physics and electronics laboratories in schools, colleges and universities across India and internationally.

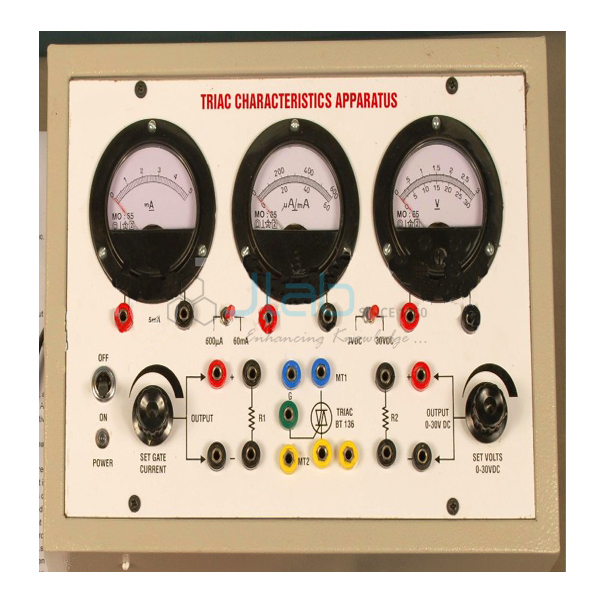

The instrument comprises two DC regulated power supplies (0-25VDC/100mA and 0-5VDC/200mA) and three round meters for voltage and current measurement, with the Triac mounted on the panel. Connections of the power supplies and the Triac are brought out to terminals, letting students vary the gate signal and trace the main-terminal V-I characteristics. The unit measures 15"x8"x4".
Specifications
| Parameter | Specification |
|---|---|
| Product Code | JA-SCD-1097 |
| DC Power Supply 1 | 0-25 VDC, 100mA |
| DC Power Supply 2 | 0-5 VDC, 200mA |
| Meters | Three round meters for voltage and current measurement |
| Device Under Test | One Triac, panel-mounted |
| Connections | Power supplies and Triac connections brought out to terminals |
| Overall Dimensions | 15" x 8" x 4" |
Key Features
- Studies the MT characteristics of a Triac with gate signal triggering
- Two DC regulated power supplies (0-25VDC/100mA and 0-5VDC/200mA)
- Three round meters for direct voltage and current measurement
- Panel-mounted Triac with terminal connections for supplies and device
- Compact bench-top unit measuring 15" x 8" x 4"
Why Choose Jaincolab
Jaincolab (Jain Scientific Suppliers, Ambala, Haryana) manufactures and exports semiconductor and electronics lab equipment for school, college and university laboratories across India and internationally. Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Explore related Scientific Instrument equipment from Jaincolab:
- Diac Characteristics Apparatus
- Characteristics and Applications Thyristors
- Mosfet Characteristics Apparatus
- Hall Effect Experiment
- Semi Conductor Devices category
- Scientific Instrument category
Applications
| Application Area | Typical Use |
|---|---|
| Electronics Laboratory | Tracing the MT characteristics of a Triac with gate signal triggering |
| Power Electronics Teaching | Demonstrating bidirectional switching behaviour of a Triac |
| Educational Institutions | Undergraduate electronics practicals in schools, colleges and universities |
Frequently Asked Questions
Q: What does the Triac Characteristics Apparatus study?
A: It is used to study the MT (main terminal) characteristics of a Triac with gate signal triggering.
Q: What power supplies does the instrument include?
A: It includes two DC regulated power supplies: 0-25 VDC/100mA and 0-5 VDC/200mA.
Q: How is the Triac connected in the apparatus?
A: The Triac is mounted on the panel, with its connections and those of the power supplies brought out to terminals for circuit wiring.
Q: What are the overall dimensions of the unit?
A: The unit measures 15" x 8" x 4".
Q: Is Jaincolab a certified manufacturer?
A: Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Request a Quote
For pricing, lead times and technical clarification on the Triac Characteristics Apparatus, contact Jaincolab directly. Request a Quote and our team will confirm specifications and availability for your institution.
