UJT Characteristics Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-SCD-1088

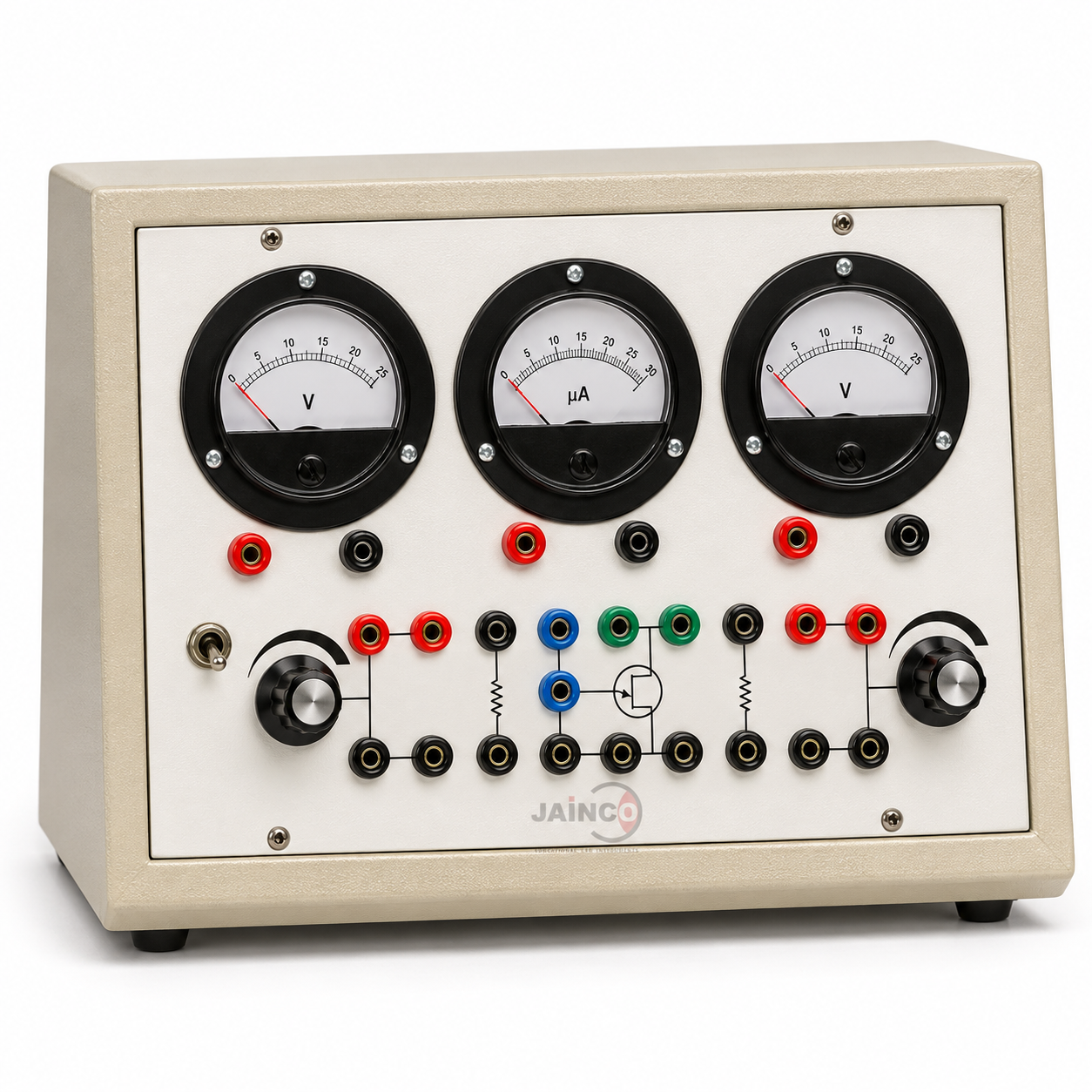

The UJT Characteristics Apparatus (SKU JA-SCD-1088) is used to plot the V-I characteristics of a unijunction transistor, including its negative-resistance region, and to measure its interbase resistance. A UJT type 2N2646 is mounted on the panel. Two regulated DC supplies, 0-10 V at 30 mA and 0-1 V, and three round meters are built in, with terminal connections for the supplies and meters.
Specifications
The listing gives these details:
| Product | UJT Characteristics Apparatus |
| SKU | JA-SCD-1088 |
| Device | UJT type 2N2646, on panel |
| DC supply 1 | 0-10 V, 30 mA, regulated |
| DC supply 2 | 0-1 V, regulated |
| Meters | Three round meters |
| Size | 15 x 8 x 4 in |
Scope of supply and ordering
One apparatus per order line. Quantities and packing are confirmed on the quotation.
Frequently asked questions
Which UJT is fitted?
A type 2N2646, mounted on the panel.
What can be measured?
The V-I characteristics of the UJT and its interbase resistance.
