FET Characteristics Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-SCD-1081
The Jaincolab FET Characteristics Apparatus is used to plot the static and transfer characteristics of a Field Effect Transistor (FET), built around a BFW10 FET mounted on the panel. As a manufacturer and exporter of Scientific Instrument equipment based in Ambala, Haryana, Jaincolab supplies this FET characteristics apparatus to educational and industrial laboratories across India.

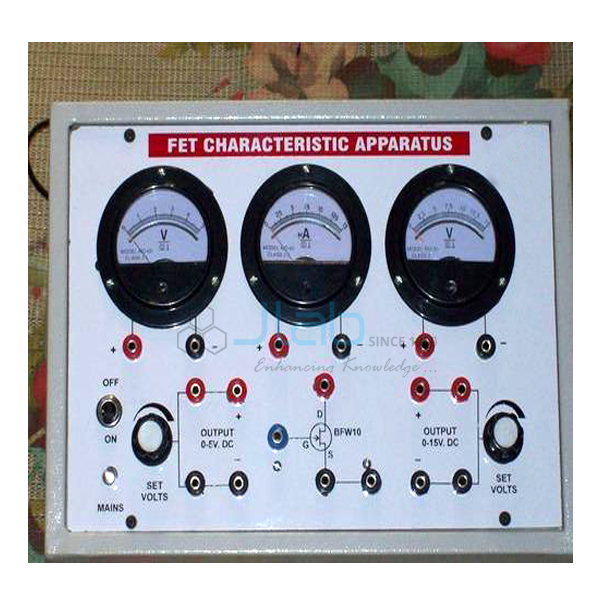

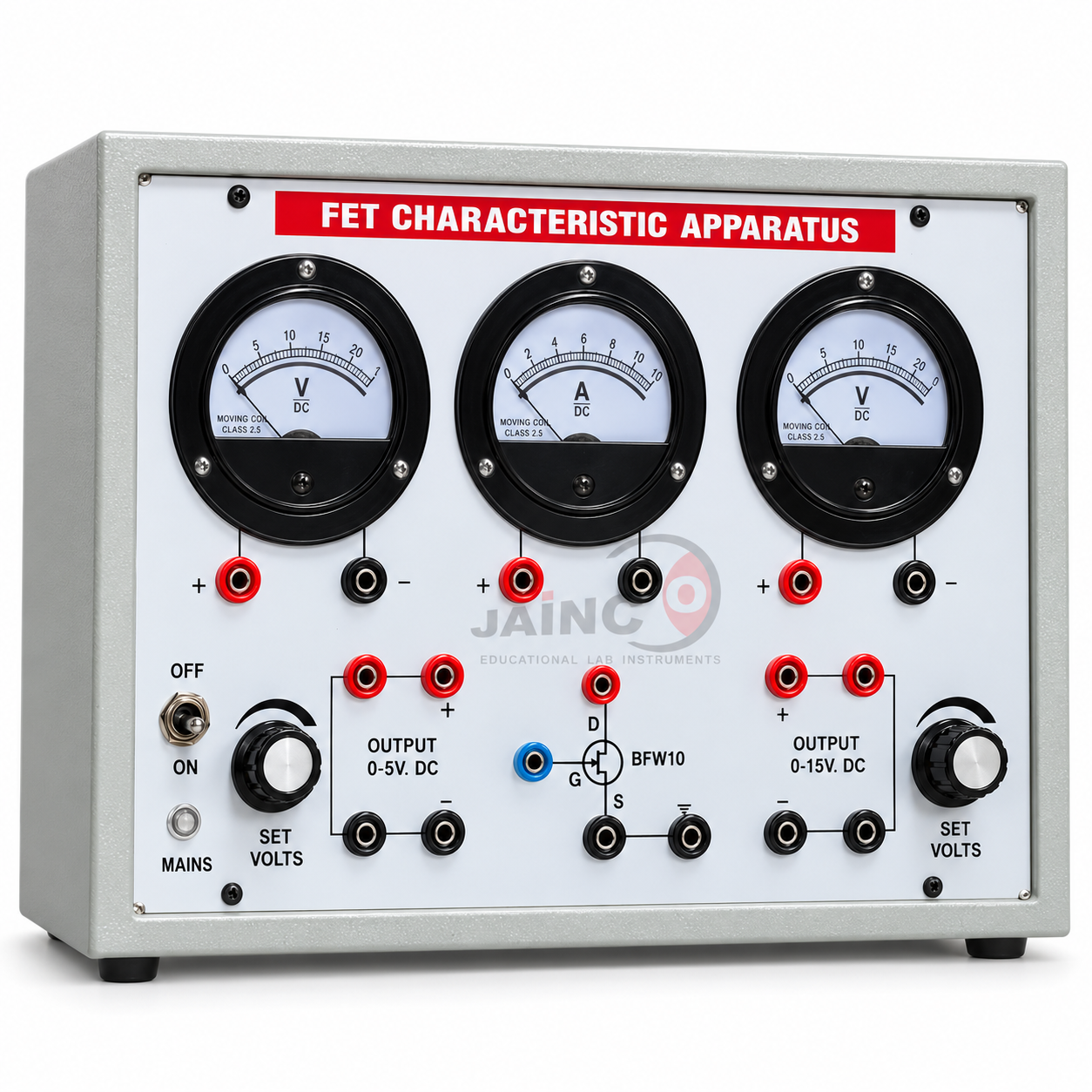

The instrument consists of two D.C. regulated power supplies, 0-10V D.C./10mA and 0-5V D.C., with three meters for voltage and current measurement. The FET (type BFW10) is mounted on the panel, and connections for the supplies, meters and FET are brought out on terminals. The panel measures 11" x 8" x 4".
Specifications
| Parameter | Specification |
|---|---|
| Activity | Plotting static and transfer characteristics of a FET |
| Power Supply 1 | 0-10V D.C., 10mA |
| Power Supply 2 | 0-5V D.C. |
| Meters | Three meters, for voltage and current measurement |
| FET | Type BFW10, mounted on panel |
| Dimensions | 11" x 8" x 4" |
Key Features
- Plots both static and transfer characteristics of a FET
- Two D.C. regulated power supplies, 0-10V/10mA and 0-5V D.C.
- Three meters for direct voltage and current readings
- Uses a BFW10 FET mounted on the panel, with all connections on terminals
Why Choose Jaincolab
Jaincolab (Jain Scientific Suppliers, Ambala, Haryana) has manufactured and supplied laboratory and electronic measuring instruments, including the FET Characteristics Apparatus, for school, college and university electronics laboratories across India and internationally since 1982. Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Explore related Scientific Instrument equipment from Jaincolab:
- Transistor Characteristics Apparatus
- SCR Characteristics Apparatus
- Mosfet Characteristics Apparatus
- Scientific Instrument category
Applications
| Application Area | Typical Use |
|---|---|
| Electronics Laboratory | Plotting static and transfer characteristics of field effect transistors |
| Semiconductor Device Education | Teaching FET operation and characteristic curves to students |
Frequently Asked Questions
Q: What does this apparatus plot?
A: It plots the static and transfer characteristics of a FET.
Q: Which FET is used?
A: A BFW10 FET is mounted on the panel.
Q: What power supplies does it include?
A: Two D.C. regulated power supplies, 0-10V/10mA and 0-5V D.C.
Q: Is Jaincolab a certified manufacturer?
A: Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Q: Is a technical datasheet available before ordering?
A: Full specifications are confirmed at the time of quotation; contact Jaincolab with your requirement for written confirmation.
Request a Quote
For pricing, lead times and technical clarification on this instrument, contact Jaincolab directly. Request a Quote and our team will confirm specifications and availability for your institution.
