Solar Cell Mounted Manufacturer,Supplier and Exporter in India
Product Code : JA-OED-1060

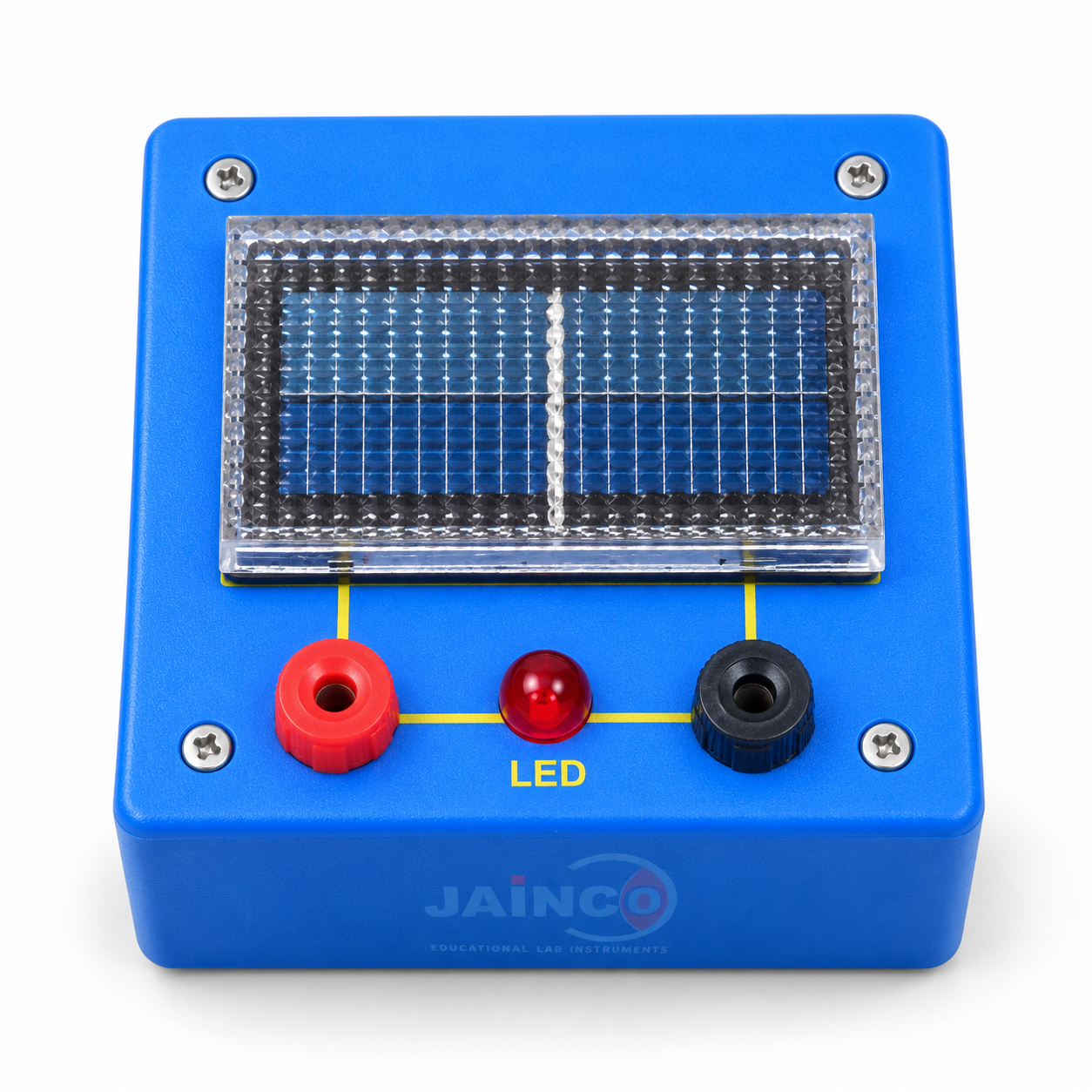

The Jaincolab Solar Cell Mounted unit is a silicon solar cell providing an output of 1V at 200mA through 4mm sockets, built for use in photo-voltaic and opto-electronic experiments. As a manufacturer and exporter of Scientific Instrument equipment based in Ambala, Haryana, Jaincolab supplies this solar cell apparatus to educational and industrial laboratories across India.
The mount for the silicon solar cell comprises a layer of molybdenum on the back surface of the cell and a molybdenum wire along the peripheral edge of the radiation-receiving surface. An electrode with an aperture aligned to the radiation-receiving surface abuts and is secured to this wire, and a heat sink is kept in conductive contact with the molybdenum layer. Because the coefficients of thermal expansion of molybdenum and silicon are similar, the relatively brittle cell is protected from damage when its temperature changes.
Specifications
| Parameter | Specification |
|---|---|
| Output | 1V at 200mA |
| Output Terminals | 4mm sockets |
| Cell Material | Silicon solar cell |
| Mount Construction | Molybdenum back layer and peripheral molybdenum wire, with heat sink in conductive contact |
Key Features
- Silicon solar cell mounted for direct use with 4mm sockets, output 1V at 200mA
- Molybdenum back layer and peripheral wire matched to silicon's coefficient of thermal expansion, minimising thermal stress on the brittle cell
- Electrode aperture aligned precisely with the radiation-receiving surface
- Integral heat sink in conductive contact with the molybdenum layer for thermal stability
Why Choose Jaincolab
Jaincolab (Jain Scientific Suppliers, Ambala, Haryana) has manufactured and supplied laboratory and electronic measuring instruments, including the Solar Cell Mounted apparatus, for school, college and university physics laboratories across India and internationally since 1982. Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Explore related Scientific Instrument equipment from Jaincolab:
- Solar Cell Characteristics Apparatus
- Planks Constant Apparatus using Solar Cell
- Photo Cell Mounted on Base
- Scientific Instrument category
Applications
| Application Area | Typical Use |
|---|---|
| Physics Laboratory | Photo-voltaic effect and solar cell characteristics experiments |
| Renewable Energy Education | Demonstrating solar cell output and construction to students |
Frequently Asked Questions
Q: What output does the Jaincolab Solar Cell Mounted unit provide?
A: It provides an output of 1V at 200mA through 4mm sockets.
Q: How is the solar cell protected from thermal stress?
A: The mount uses a molybdenum back layer and peripheral wire whose thermal expansion closely matches silicon, protecting the brittle cell from temperature-change damage.
Q: What is this apparatus used for?
A: It is used in photo-voltaic effect and solar cell characteristics experiments in physics laboratories.
Q: Is a technical datasheet available before ordering?
A: Full specifications are confirmed at the time of quotation; contact Jaincolab with your requirement for written confirmation.
Q: Is Jaincolab a certified manufacturer?
A: Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Request a Quote
For pricing, lead times and technical clarification on this instrument, contact Jaincolab directly. Request a Quote and our team will confirm specifications and availability for your institution.
