Maxwell Inductance Bridge Manufacturer,Supplier and Exporter in India
Product Code : JA-SI-8073
The Maxwell Inductance Bridge from Jaincolab is used to measure the unknown value of inductance. As a leading physics laboratory equipment manufacturer and exporter, Jaincolab supplies this scientific instrument to schools, colleges, and research institutions across India and internationally.

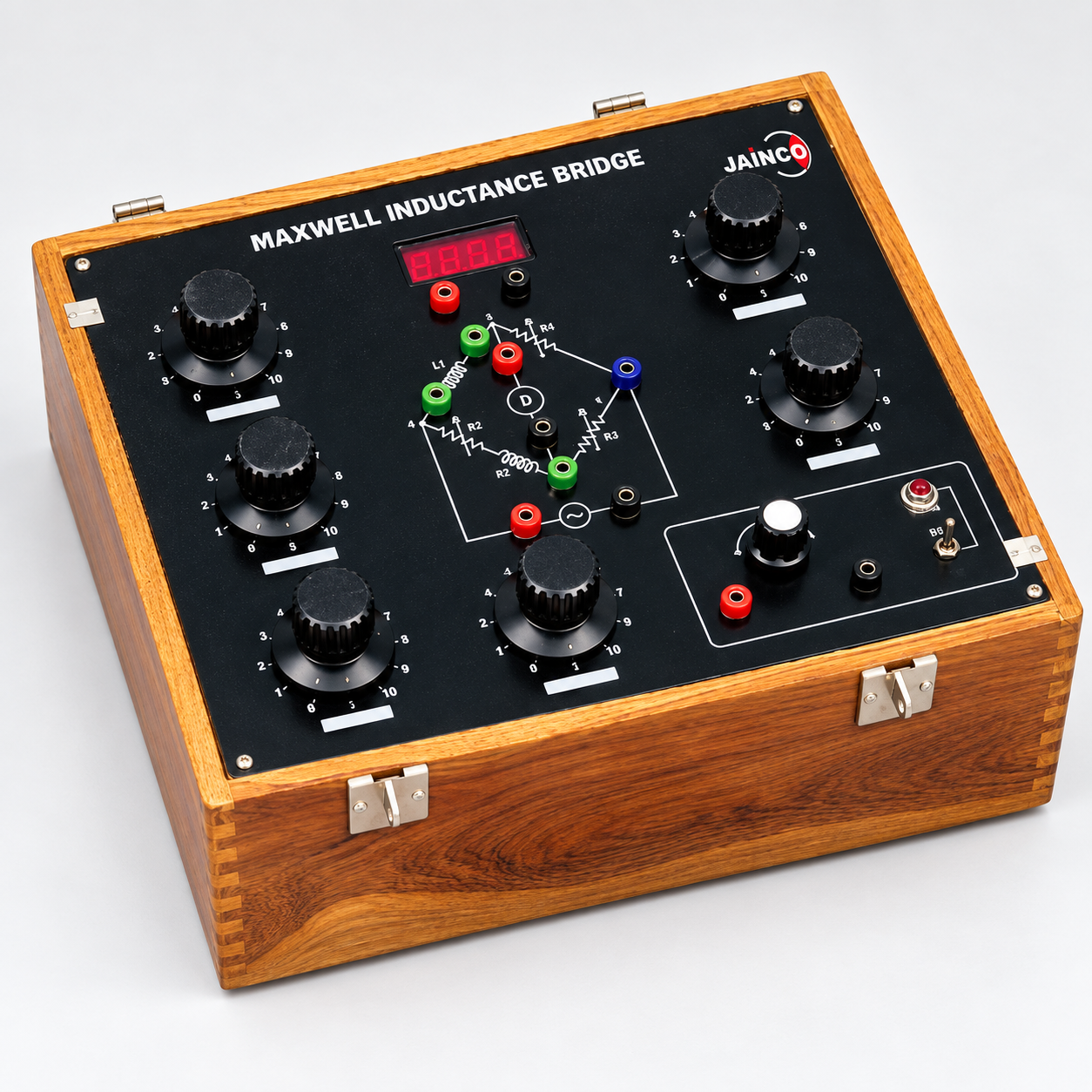

The instrument has the following inbuilt parts fitted in a Teak Wood case: an AC Source consisting of a sine wave signal of 1 KHz, with two sockets provided for the output of AC signals and an amplitude of AC switch indicating lamp provided on the Bakelite board; a Detector with an in-built Null Detector featuring digital display for detecting small AC signals in the output; and a Circuit Diagram with 4 mm sockets provided for making connections, with the circuit layout on the board spread out to facilitate convenient working and clear understanding.
Key Features / Specifications
| Part | Specification |
|---|---|
| AC Source | Sine wave signal of 1 KHz, with two output sockets and an amplitude indicating lamp |
| Detector | In-built Null Detector with digital display |
| Circuit Diagram | 4 mm sockets for connections; spread-out board layout |
| Unknown Value | Four unknown values supplied with the instrument |
| R4, R3 | Two decade dial of x10 and x100 ohms |
| L2 | Decade dial of x10 mH |
| R2 | Decade dial of x1 ohm |
Why Choose Jaincolab
Jaincolab is an ISO 9001:2015 and ISO 14001:2015 certified manufacturer and exporter of physics and electrical laboratory instruments. Pair the Maxwell Inductance Bridge with the Self Inductance Anderson Bridge or the Frequency Wein Bridge for a complete set of AC bridge experiments. Browse the complete Scientific Instrument range, part of Jaincolab's full Our Product catalogue.
Applications
| Sector | Application |
|---|---|
| Schools and Colleges | Measuring unknown self inductance in physics practicals |
| Engineering Institutions | AC bridge circuit analysis and inductance measurement experiments |
| Research Laboratories | Precision inductance measurement using a null-detector bridge |
Frequently Asked Questions
What is the Maxwell Inductance Bridge used for? The Maxwell Bridge is used to measure the unknown value of inductance.
What is the frequency of the AC source? The bridge consists of a sine wave signal of 1 KHz.
How is the output detected? A Null Detector with digital display is in-built for detecting small AC signals in the output.
What case is the instrument housed in? The instrument has its inbuilt parts fitted in a Teak Wood case.
How many unknown values are supplied? Four unknown values are supplied with the instrument.
Is Jaincolab a certified manufacturer? Yes, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified.
Looking to add the Maxwell Inductance Bridge to your physics laboratory? Request a Quote from Jaincolab today.
