Photodiode Characteristics Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-OED-1057

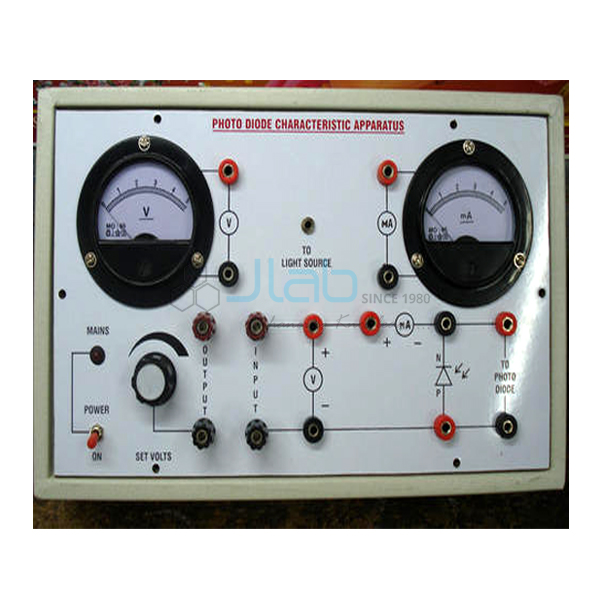

The Photodiode Characteristics Apparatus (SKU JA-OED-1057) is used to plot the current through a photodiode against the intensity of the light falling on it, at different applied voltages. The photodiode is mounted on the panel; a regulated 0-10 V DC, 50 mA supply and two round meters for voltage and current are built in, and a light source and terminal connections are provided.
Specifications
The listing gives these details:
| Product | Photodiode Characteristics Apparatus |
| SKU | JA-OED-1057 |
| Power supply | Regulated DC, 0-10 V, 50 mA |
| Meters | Two round meters, voltage and current |
| Device under test | Photodiode on panel |
| Accessories | Light source and terminal connections |
| Size | 15 x 8 x 4 in |
Scope of supply and ordering
Supplied with its light source. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What graph is plotted with the Photodiode Characteristics Apparatus?
Photodiode current against light intensity, at different voltages.
What supply is built in?
A regulated 0-10 V DC, 50 mA supply with voltage and current meters.
