Diac Characteristics Apparatus Manufacturer,Supplier and Exporter in India

Diac Characteristics Apparatus

Product Code : JA-SCD-1096

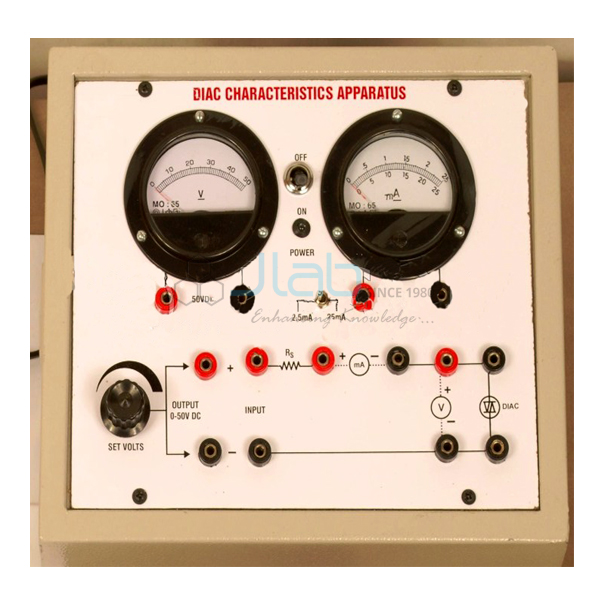

The Diac Characteristics Apparatus (SKU JA-SCD-1096) is used to plot the V-I characteristics of a Diac, including the breakover point in both directions. One Diac is mounted on the panel, a regulated 0-50 V DC, 100 mA supply is built in, and two round meters read voltage and current, with the supply and Diac connections brought out to terminals.

Specifications

The listing gives these details:

Product Diac Characteristics Apparatus
SKU JA-SCD-1096
Device One Diac, panel-mounted
Power supply Regulated DC, 0-50 V, 100 mA
Meters Two round meters
Connections Terminals
Size 15 x 8 x 4 in

Scope of supply and ordering

One apparatus per order line.

Frequently asked questions

What does the Diac Characteristics Apparatus plot?
The V-I characteristics of a Diac.

What supply is built in?
A regulated 0-50 V DC, 100 mA supply with two round meters.

Related products

Semiconductor apparatus is listed in our scientific instrument range.

Request a quote

For the Diac Characteristics Apparatus, send the quantity via our contact page. For tender or project supply, see our tenders page.
