Jaincolab manufactures and exports the Half Wave, Full Wave and Rectifier Apparatus (Product Code JA-SCD-1113), an electronics apparatus built to study the efficiency and ripple factor of half wave, full wave and bridge rectifiers on load, and to study rectifier filters. As a Scientific Instrument manufacturer and exporter based in Ambala, Haryana, Jaincolab supplies this apparatus to electronics and physics laboratories in schools, colleges and universities across India and internationally.

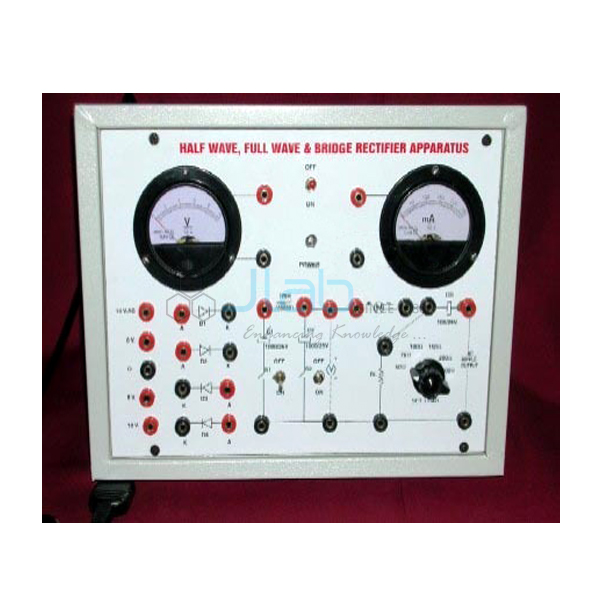

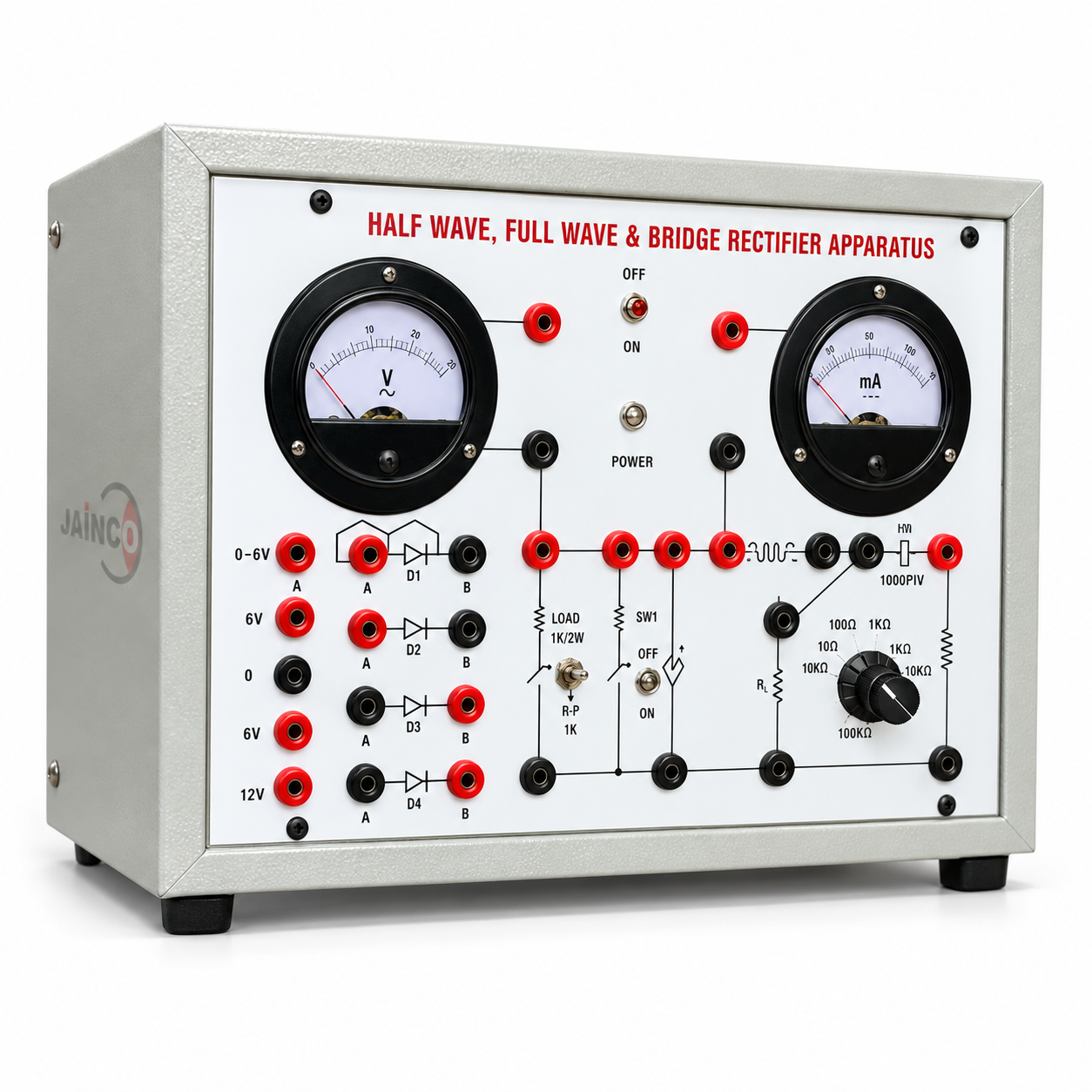

The instrument comprises an AC power supply, two meters to measure output voltage and current, junction diodes, a filter circuit kit, and load resistances selectable using toggle switches, with all important connections brought out on terminals. This lets students configure half wave, full wave and bridge rectifier circuits, load them with different resistances, and measure efficiency and ripple factor before and after filtering. The apparatus measures 10"x8"x4" and can be used with an optional Digital AC Millivoltmeter for finer ripple measurement.
Specifications
| Parameter | Specification |
|---|---|
| Product Code | JA-SCD-1113 |
| Power Supply | AC power supply |
| Meters | Two meters for output voltage & current measurement |
| Rectifier Elements | Junction diodes for half wave, full wave & bridge rectifier configurations |
| Filter | Filter circuit kit included |
| Load | Load resistances selectable via toggle switches |
| Overall Dimensions | 10" x 8" x 4" |
| Optional Accessory | Digital AC Millivoltmeter |
Key Features
- Studies efficiency and ripple factor of half wave, full wave and bridge rectifiers on load
- Built-in filter circuit kit for studying rectifier filtering
- Two meters for direct output voltage and current measurement
- Load resistances selectable via toggle switches
- Terminal connections for all important test points
- Compact bench-top design measuring 10" x 8" x 4"
Why Choose Jaincolab
Jaincolab (Jain Scientific Suppliers, Ambala, Haryana) manufactures and exports electrical and electronics measurement lab equipment for school, college and university laboratories across India and internationally. Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Explore related Scientific Instrument equipment from Jaincolab:
- Clipping and Clamping Circuit Apparatus
- RC Circuit Transient Response
- LCR Impedance Circuit
- Scientific Instrument category
Applications
| Application Area | Typical Use |
|---|---|
| Electronics Laboratory | Studying efficiency and ripple factor of half wave, full wave and bridge rectifiers under load |
| Power Supply Design Teaching | Demonstrating rectifier filtering and its effect on output ripple |
| Educational Institutions | Undergraduate electronics and physics practicals in schools, colleges and universities |
Frequently Asked Questions
Q: What does this apparatus study?
A: It studies the efficiency and ripple factor of half wave, full wave and bridge rectifiers on load, and studies rectifier filters.
Q: What does the instrument include?
A: It includes an AC power supply, two meters for output voltage and current, junction diodes, a filter circuit kit, and toggle-switch selectable load resistances.
Q: Can all three rectifier types be tested on this apparatus?
A: Yes, the junction diodes and connections allow half wave, full wave and bridge rectifier configurations to be studied.
Q: What are the overall dimensions of the unit?
A: The unit measures 10 in x 8 in x 4 in.
Q: Is Jaincolab a certified manufacturer?
A: Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
