Oscilloscope Manufacturer,Supplier and Exporter in India
Product Code : JA-TAMI-1027

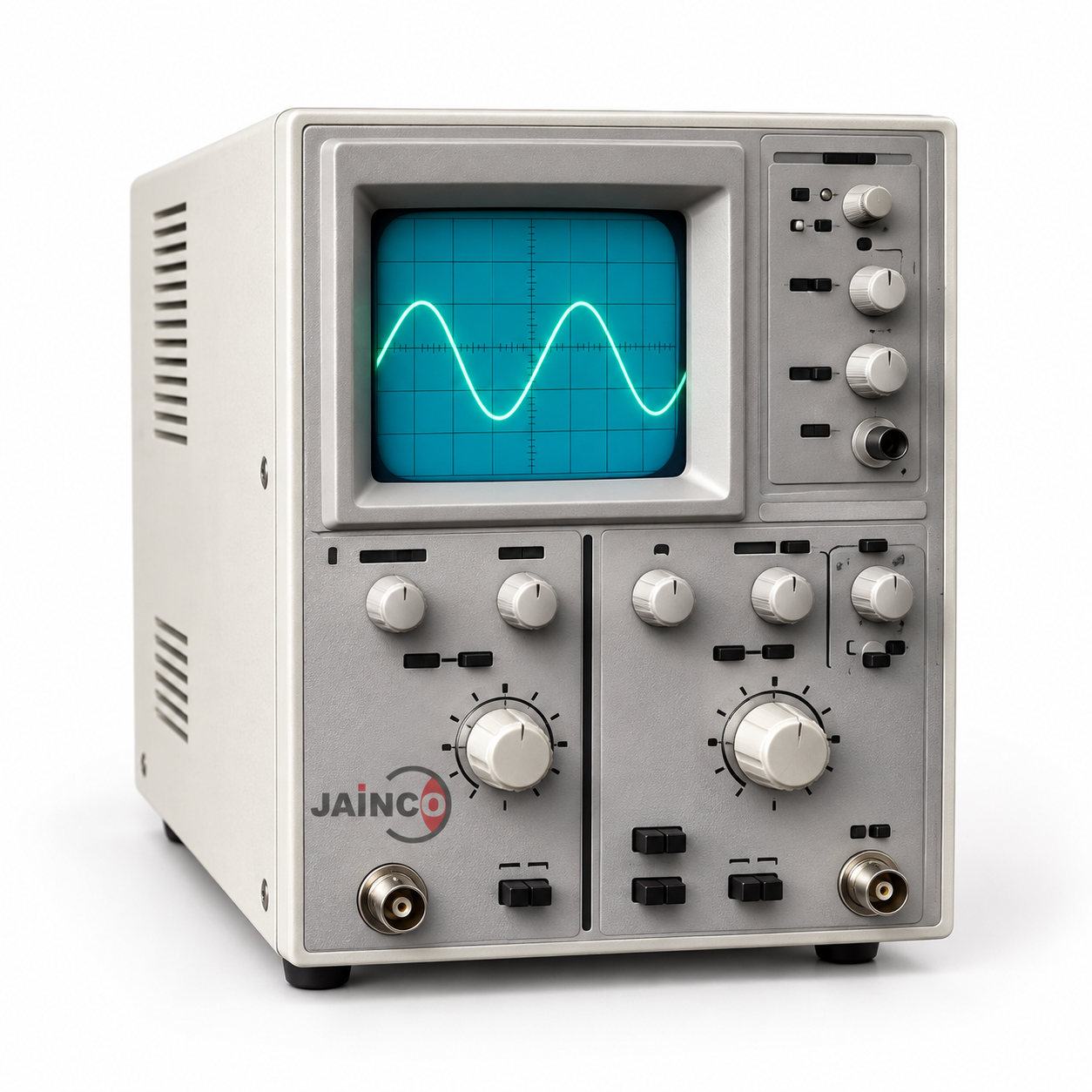

The Jaincolab Oscilloscope is a fully solid-state, single-beam instrument with a DC to 10 MHz bandwidth, built for stable, accurate waveform display in electronics laboratories. Manufactured by Jaincolab, a Scientific Instrument manufacturer and exporter in Ambala, Haryana, India, it is used to teach waveform measurement fundamentals with stabilized internal supplies for reliable operation.
Vertical deflection can be set to A.C. or D.C. coupling with input attenuation calibrated from 5 mV to 50 V/cm, and the accurate time-base triggering gives a clear, stable trace on an 8x8 cm display.
Specifications
| Parameter | Specification |
|---|---|
| Vertical Bandwidth | DC to 10 MHz (3 dB) |
| Sensitivity | 10 mV/cm |
| Maximum Input Impedance | 1 M ohm |
| Square Wave Calibration | 2 V p-p |
| Triggering | Internal (from vertical amplifier) or external |
| Sweep Time Factor | 0.1 microsec/div to 0.1 s/div, ±5% |
| Horizontal Amplifier Bandwidth | DC to 1 MHz |
| Display | 8 x 8 cm |
| Power Requirement | 25 Watt, 230 V, 50 Hz |
| Dimensions | 8" x 5.5" x 11" |
Key Features
- Fully solid-state design with stabilized supplies for accurate, stable operation
- Single-beam display, DC to 10 MHz vertical bandwidth
- Selectable A.C. or D.C. vertical coupling with input attenuation 5 mV to 50 V/cm
- Internal or external triggering for a clear, stable time-base display
Why Choose Jaincolab
Jaincolab (Jain Scientific Suppliers, Ambala, Haryana) has manufactured and supplied laboratory and electronic measuring instruments, including the Oscilloscope, for school, college and university physics and electronics laboratories across India and internationally since 1982. Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Explore related Scientific Instrument equipment from Jaincolab:
For applications needing two simultaneous signal traces, see the Jaincolab Dual Trace Oscilloscope, a 20 MHz dual-channel instrument built for comparative waveform measurement.
Applications
| Application Area | Typical Use |
|---|---|
| Electronics Laboratory | General waveform display and measurement, DC to 10 MHz |
| Signal Teaching | Demonstrating time-base triggering and vertical attenuation principles |
Frequently Asked Questions
Q: What is the bandwidth of the Jaincolab Oscilloscope?
A: DC to 10 MHz (3 dB) on the vertical amplifier, with the horizontal amplifier covering DC to 1 MHz.
Q: What is the display size?
A: An 8 x 8 cm screen.
Q: What input attenuation range does it support?
A: 5 mV to 50 V/cm, with A.C. or D.C. coupling selectable.
Q: Is this a single or dual channel oscilloscope?
A: This is a single-beam oscilloscope; for two simultaneous traces, see the Jaincolab Dual Trace Oscilloscope.
Q: Is a technical datasheet available before ordering?
A: Full specifications are confirmed at the time of quotation; contact Jaincolab with your requirement for written confirmation.
Q: Is Jaincolab a certified manufacturer?
A: Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Request a Quote
For pricing, lead times and technical clarification on this instrument, contact Jaincolab directly. Request a Quote and our team will confirm specifications and availability for your institution.
