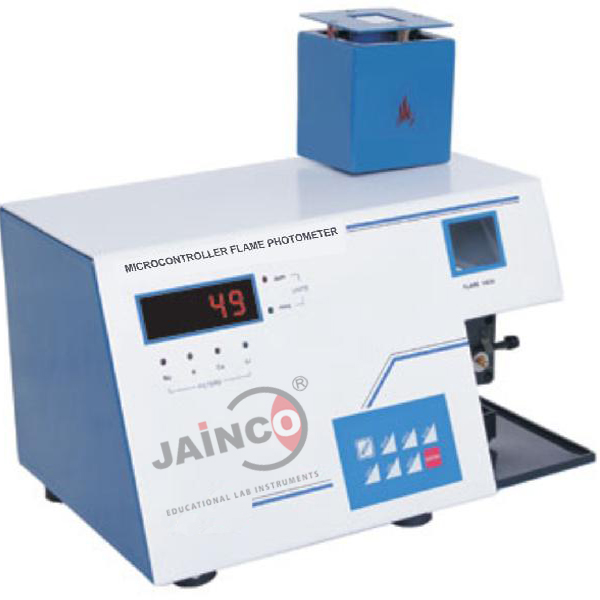

Microprocessor Flame Photometer

Product Code : JA-MFP-2226
Jaincolab is a leading Microprocessor Flame Photometer Manufacturer,and suppliers in India, Microprocessor Flame Photometer Manufacturer,and suppliers in South Africa, Microprocessor Flame Photometer Algeria (Algiers), Microprocessor Flame Photometer Angola (Luanda), Microprocessor Flame Photometer Argentina (Buenos Aires), Microprocessor Flame Photometer Armenia (Yerevan), Microprocessor Flame Photometer Australia (Canberra), Microprocessor Flame Photometer Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Microprocessor Flame Photometer


Microprocessor Based with Printer Interface

Auto Gas Cutoff

Auto Flame Failure Detection

Four Measurements in Single Aspiration

Setup Storage Facility

Sample Data Storage Facility

Curve Calibration Programmability Using Maximum of 5 Standards

Multiple Calibration Curve Saving Facility

Data Processing Through Curve Fitting Techniques, Least Square, Quadratic

Online Help Key

Direct Results in ppm and meq

Useful for Medical & Soil Testing

Microprocessor Flame Photometer  comes with flame failure detection and auto gas cutoff facility.

In case of power failure, the gas cuts off automatically.

In case the flame goes off accidently during work, the flame failure alarm sounds after few seconds

Microprocessor Flame Photometers are used for the determination of sodium, potassium, calcium and lithium.

They uses the latest microcontroller technology and advanced engineering techniques so as to give enhanced and reproducibility.

They have soft touch membrane key for ease of operations.

The sample solution is aspirated through an automiser.

Sample, Air and the fuel are mixed in the mixing chamber which is then sprayed as a very fine mist into the flame.

The color of the flame is changed depending upon the concentration of elements present.

Radiations from the flame passes through the sensing system and specific narrow band interference filter which permits only the characteristic radiation to pass to the photo-detector.

The output of the photo-detector is then processed by the microcontroller and the final results are displayed on the 20 x 4 line alphanumeric lcd with backlit.

In both models 5-Point calibration facility and non-linearity correction is provided through an automatic curve fitting software.

Facility has been provided for re-standardization with a single standard, thereby, eliminating the need of the multiple standards once a calibration has been performed.

Microprocessor Flame Photometer Manufacturer, Microprocessor Flame Photometer Suppliers, Microprocessor Flame Photometer India, Microprocessor Flame Photometer Exporter, Analytical Instruments, Flame Photometer, Microprocessor Flame Photometer, Microprocessor Flame Photometer Online, Microprocessor Flame Photometer Manufacturer, buy Microprocessor Flame Photometer Online India



Na: 0 - 100 ppm
Upto 250 meq/l, 1:100 dil

K: 0 - 100 ppm
Upto 250 meq/l, 1:100 dil

Ca: 0 - 100 ppm
Upto 250 meq/l, 1:100 dil

Li: 0 - 100 ppm
Upto 250 meq/l, 1:100 dil

Na: 0 - 200
1:100 dil

K: 0 - 10
1:100 dil


Li: 0 - 2
1:5 dil

Na: 0 - 250
1:100 dil

K: 0 - 100
1:100 dil

Ca: 0 - 10
1:2 dil



General: Na: 0.5 ppm, K: 0.5 ppm, Li: 0.5 ppm, Ca: 15 ppm


Na & K supplied (Ca & Li are optional at extra cost)


0.1 ppm/meq


< 1% coefficient of variation for 20 consecutive samples using 10 ppm Na set as maximum standard

Curve Fit Accuracy

< 2% error when 3 ppm Na/K and 5 ppm Li are set as maximum standards


20 x 4 alphanumeric LCD with backlit

Average Time

In-built in software

Flame System

LPG and dry oil free air


Silicon photodiode


Up-to 5-Point calibration with curve fitting software

Gas Control

Adjustable with knobs

Flame Failure

Auto detection (Model - 1385)

Gas Cuttoff

Automatic (Model - 1385)

Ignition System

Auto ignition


Axial flow type


Provision for attachment of dot matrix printer or HP laserjet/ inkjet (non-windows) printers with centronics parallel interface


Available (PC software at extra cost)


230 V + 10% AC, 50 Hz


285 x 255 x 210 mm (L x B x H) (Approx.)


7.5 Kg (Approx.)

Compressor Unit

Air Supply

By oil free mini compressor unit with pressure regulator

Combustion Gas

LPG controlled by precision regulator


230 V + 10% AC, 50 Hz


290 x 255 x 210 mm (L x B x H) (Approx.)


8 Kg (Approx.)
