Prony Brake Manufacturer,Supplier and Exporter in India
Product Code : JA-MWLE-9493

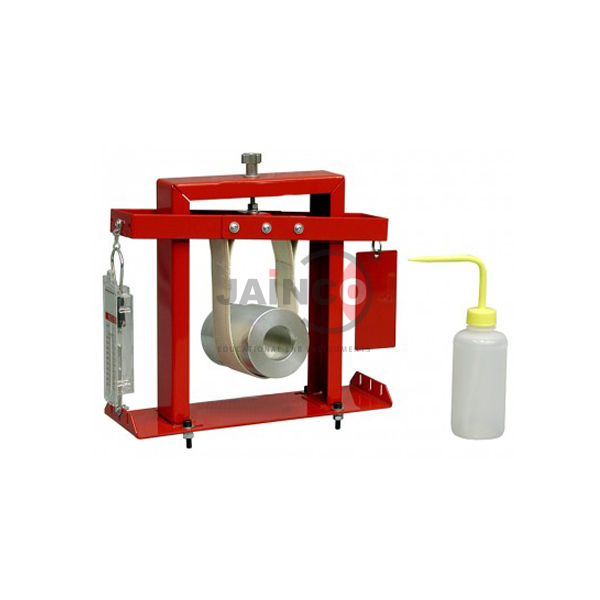

The Prony Brake (SKU JA-MWLE-9493) is a torque-measuring load device for loading rotating machines, such as small motors, and measuring their torque output. It has an aluminium brake drum that mounts on 5/8-inch motor shafts, a balanced pulley, a spring force gauge on a formed steel gauge unit, and a load adjustment knob, giving a load range of 0-3.05 N-m. This prony brake is supplied by JaincoLab for electrical machines and mechanical drives laboratories.
Specifications
The prony brake has a load range of 0-3.05 N-m, an aluminium brake drum with mounting for 5/8-inch motor shafts, a balanced pulley, a spring force gauge, a load adjustment knob and a double set screw locking device, with a coolant spray bottle.
| Product | Prony Brake |
| SKU | JA-MWLE-9493 |
| Type | Prony brake (friction brake dynamometer) |
| Load range | 0-3.05 N-m |
| Brake drum | Aluminium, mounts on 5/8-inch motor shafts |
| Gauge unit | Formed steel, with spring force gauge |
| Pulley | Balanced pulley |
| Controls | Load adjustment knob, double set screw locking device |
| Accessory | Coolant spray bottle |
Applications of the 0-3.05 N-m prony brake
The brake is fitted on the motor shaft and tightened with the knob until the spring gauge reads the braking force; torque and, with shaft speed, output power are then calculated.
- Measuring torque output of small motors
- Plotting torque-speed and power curves with a tachometer
- Loading mechanical drive trainers during performance tests
- Electrical machines and mechanical drives laboratory practicals
Scope of supply and ordering
This listing covers one prony brake with aluminium drum, balanced pulley, spring force gauge, load adjustment knob, locking device and coolant spray bottle. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, packing and lead time for the Prony Brake are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single workshop orders, bulk requirements for ITI, polytechnic and engineering colleges, and tender lots.
Frequently asked questions
What is the load range?
0-3.05 N-m.
Which shaft size does it fit?
The aluminium brake drum mounts on 5/8-inch motor shafts.
How is the load set?
With the load adjustment knob, read on the spring force gauge and held by a double set screw locking device.
