Semi Automatic Mounting Press

Product Code : JA-ME-7354
Jaincolab is a leading Semi Automatic Mounting Press Manufacturer,and suppliers in India, Semi Automatic Mounting Press Manufacturer,and suppliers in South Africa, Semi Automatic Mounting Press Algeria (Algiers), Semi Automatic Mounting Press Angola (Luanda), Semi Automatic Mounting Press Argentina (Buenos Aires), Semi Automatic Mounting Press Armenia (Yerevan), Semi Automatic Mounting Press Australia (Canberra), Semi Automatic Mounting Press Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

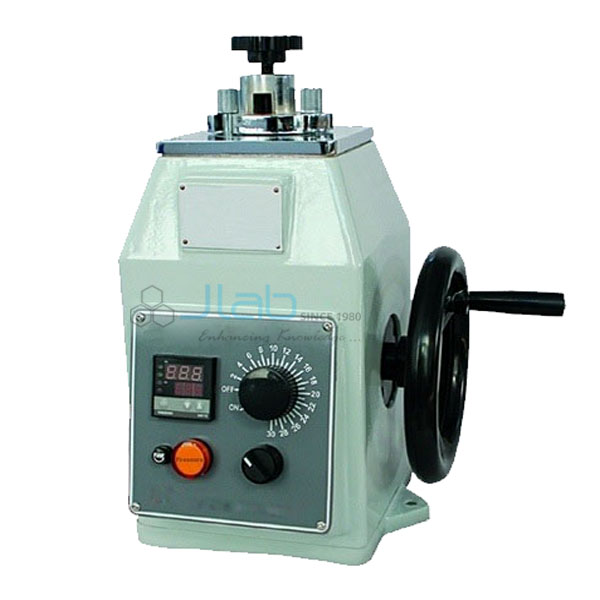

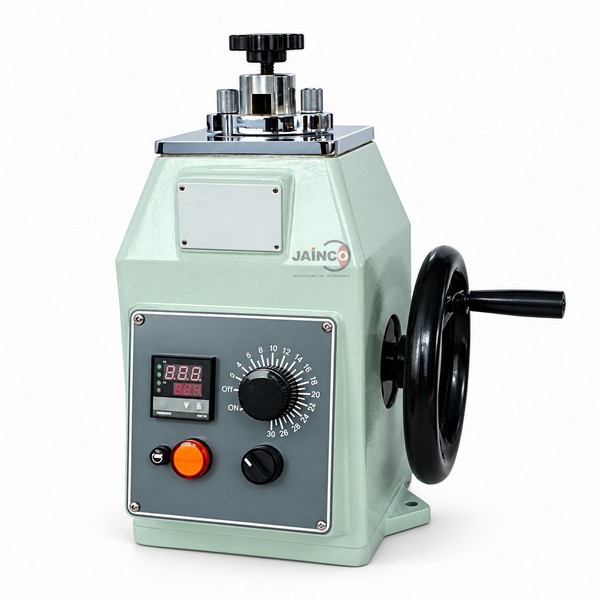

Semi Automatic Mounting Press
The mounting press is a mechanical type machine.
The thermoset plastics together with specimen being mounted is formed under heated conditions.
During this process, the pressure is self-adjusted by a spring fixed inside the machine.
By turning the hand-wheel of the machine, a couple of bevel gear is rotated to drive the screw rod which in turn pushes/pulls the lower die up and down along the mould sleeve.
A signal light is used to indicate the pressure level.
The mounting press is equipped with a digital temperature controller to establish real-time temperature meanwhile.
For each specimen-mounting, 8-10 minutes is enough and a mirror-like specimen can be acquired.
A timer is equipped to realize the semi-automation of the sample - making, while obviously increasing working efficiency.


Specification:

Specimen Pressing Size

22x15mm

 30x15mm

45x15mm

Heater Capacity

650W 220V

Adjustable Temperature Range

0 - 400ºC

Power

15% 220V 50Hz voltage fluctuation less than + 15%

Overall dimensions

340mm x 270mm x 400mm

Weight

25 Kg. (approx.)
