Single Beam Spectrophotometer Wavelength Range 325-1100nm Manufacturer,Supplier and Exporter in India

Product Code : JA-LE-8256
Jaincolab is a leading Single Beam Spectrophotometer Wavelength Range 325-1100nm Manufacturer,and suppliers in India, Single Beam Spectrophotometer Wavelength Range 325-1100nm Manufacturer,and suppliers in South Africa, Single Beam Spectrophotometer Wavelength Range 325-1100nm Algeria (Algiers), Single Beam Spectrophotometer Wavelength Range 325-1100nm Angola (Luanda), Single Beam Spectrophotometer Wavelength Range 325-1100nm Argentina (Buenos Aires), Single Beam Spectrophotometer Wavelength Range 325-1100nm Armenia (Yerevan), Single Beam Spectrophotometer Wavelength Range 325-1100nm Australia (Canberra), Single Beam Spectrophotometer Wavelength Range 325-1100nm Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

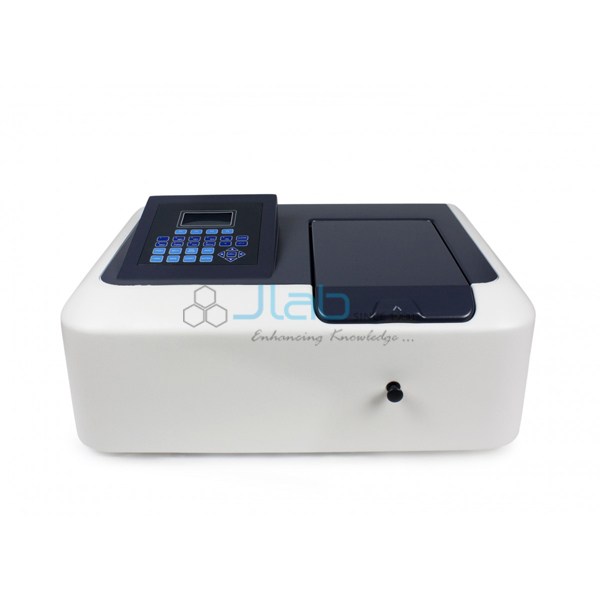

Single Beam Spectrophotometer Wavelength Range 325-1100nm

Description:-

A spectrophotometer is equipped with a 4-position cell holder for 10mm cells and features a large sample compartment for up to 100mm path length cells.

The pre-aligned lamps are conveniently placed for easy replacement, while the optical parts are mounted on an aluminum foundation which provides a steady and firm base.

The expanded key panel input and the large LCD screen display allow for more room to work with, and a clear and easy reading of absorbance, transmittance, factor, and concentration levels.

It is ideal for students to use in college, university, and general laboratory settings.

Its many functions include basic photometric mode, quantitative analysis, multi-wavelength tests and more.

Specification:-

Wavelength Accuracy: ± 1.0nm

Wavelength Repeatability: ≤ 0.5nm

Photometric Range: 0 ~200% Transmittance, -0.3 ~3 Absorbance, -9999~9999 Concentration

Wavelength Range: 325 - 1100 mm

Spectral Bandwidth: 4nm

Optical System: Single beam with littrow system (1200 lines/mm)

Photometric Accuracy: ± 0.003 Absorbance (0.5 ~1A), ± 0.5% Transmittance (0 ~100%T)

Photometric Repeatability: ≤ 0.002 Absorbance (0.5~1A), ≤ 0.2% Transmittance (0 ~100%T)

Stray Light: ≤ 0.10%T @ 360nm

Weight: 32 lbs

Baseline Flatness: ± 0.002A (PC control)

Display: LCD

Output: USB port

Dimension: 18” x 14” x 8”

Stability: ± 0.001A/h (500nm, 0A)

Noise: ≤ 0.1%T/3min (250/500nm, 0%T); ≤0.3%T/3min (250/500nm, 100%T)

Sample Compartment: Accommodate 5~100mm pathlength cuvette

Scan Speed: Max 2000nm/minute (PC control)

Detector: Silicon photodiode

Lamps: Tungsten lamp (pre-aligned)

PC Software: Optional PC scanning software

Power Requirements: AC 90-250V, 50/60Hz
