Double Beam Spectrophotometer Wavelength Range 190-1100nm Manufacturer,Supplier and Exporter in India

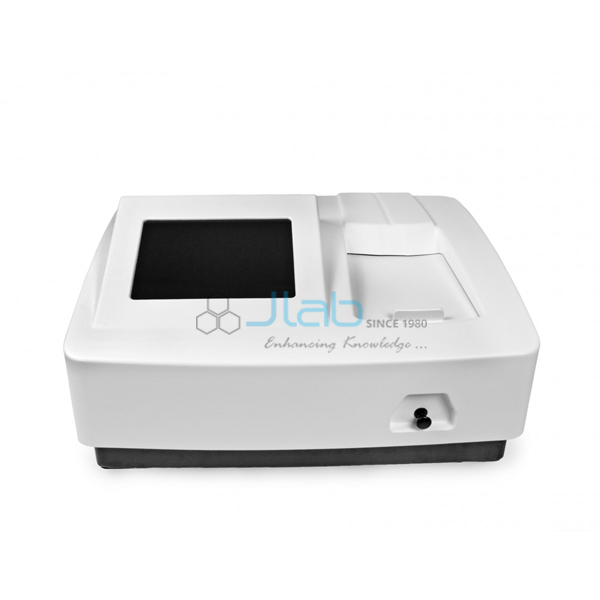

Double Beam Spectrophotometer Wavelength Range 190-1100nm

Product Code : JA-LE-8259

The Double Beam Spectrophotometer (SKU JA-LE-8259) is a UV-visible double beam spectrophotometer covering 190 to 1100 nm, with tungsten and deuterium lamps, a 2 nm spectral bandwidth and a 9.7 inch touchscreen. Two single-position holders take 10 mm cells, and the sample compartment accepts cuvettes of 5 to 100 mm path length. It is supplied by JaincoLab for college, university and general analytical laboratories.

Specifications

Performance figures below are those given in the specification of the listing.

Product Double Beam Spectrophotometer Wavelength Range 190-1100nm
SKU JA-LE-8259
Wavelength range 190 to 1100 nm
Optical system Double beam, Littrow monochromator, 1200 lines/mm grating
Spectral bandwidth 2 nm
Wavelength accuracy ± 0.3 nm
Wavelength repeatability 0.1 nm or better
Photometric range 0 to 200 %T; -0.3 to 3 A; -9999 to 9999 concentration
Photometric accuracy ± 0.002 A (0-0.5 A); ± 0.003 A (0.5-1 A); ± 0.3 %T (0-100 %T)
Photometric repeatability 0.001 A or better (0-0.5 A); 0.002 A or better (0.5-1 A); 0.2 %T or better (0-100 %T)
Stray light 0.05 %T or less (220/360 nm)
Baseline flatness ± 0.0015 A
Stability ± 0.001 A/h (500 nm, 0 A)
Noise 0.1 %T/3 min or less (250/500 nm, 0 %T); 0.3 %T/3 min or less (250/500 nm, 100 %T)
Scan speed High, medium, low (max. 2000 nm/min)
Cell holders Two single-position holders for 10 mm cells
Sample compartment Cuvettes of 5 to 100 mm path length
Detector Silicon photodiode
Lamps Tungsten and deuterium, pre-aligned
Display and keypad 9.7 inch LCD touchscreen
Software Android-based; PC scanning software optional
Output USB, Wi-Fi, Bluetooth
Dimensions 21.5 x 18.5 x 10.3 in
Weight 44 lb
Power AC 90-250 V

Applications of the double beam UV-Vis spectrophotometer

The built-in measurement modes cover routine absorbance work such as:

  • Photometric readings of absorbance, transmittance and concentration at a set wavelength
  • Quantitative analysis against standard curves
  • Kinetics tests that follow absorbance change over time
  • Multi-wavelength measurements at up to 32 wavelengths
  • Wavelength scans across the UV and visible range at up to 2000 nm/min

Scope of supply and ordering

The instrument is listed with its pre-aligned tungsten and deuterium lamps and two 10 mm cell holders; cuvettes, the optional PC scanning software, packing and delivery time are set out on the quotation.

Frequently asked questions

What wavelength range does this spectrophotometer cover?
190 to 1100 nm, using a tungsten lamp and a deuterium lamp, with a 2 nm spectral bandwidth.

What cuvettes does it accept?
Two single-position holders take 10 mm cells, and the sample compartment accommodates cuvettes from 5 to 100 mm path length.

How are results stored or transferred?
The Android-based software supports USB storage, Wi-Fi and Bluetooth; PC scanning software is available as an option.

Related products

More analytical instruments are listed in the laboratory equipment range.

Request a quote

For a quotation on the Double Beam Spectrophotometer, send your quantity and power supply details through our contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
