Spray Booth System Manufacturer,Supplier and Exporter in India
Product Code : JA-MWLE-9342

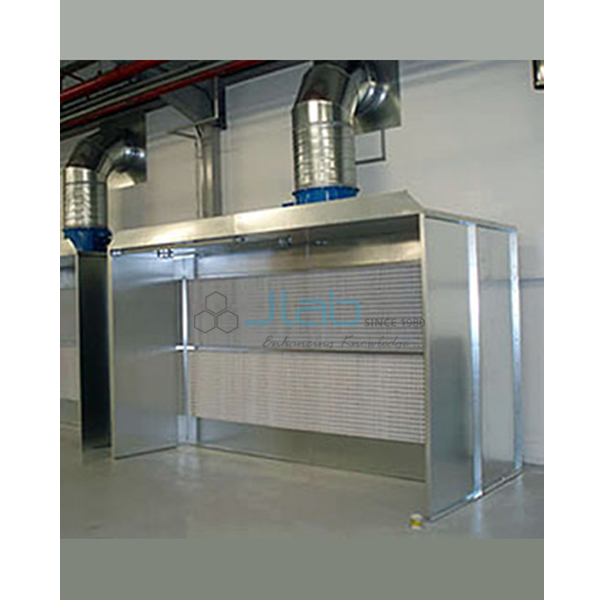

The Spray Booth System (SKU JA-MWLE-9342) is a paint spray booth with wall extraction for automotive, fabrication and furniture-finishing workshops in ITIs, polytechnics and engineering colleges. It gives a 2000 mm wide by 2070 mm high working area, a filter surface of 3.0 m² and an extraction fan rated at 8500 m³ per hour, which exhausts through the workshop wall. It is supplied by JaincoLab for paint shop and surface-finishing training.
Specifications
The spray booth has a working width of 2000 mm and a working height of 2070 mm, a 3.0 m² filter surface, an extraction fan of 8500 m³/hour driven by a 1.5 kW, 380 V, 50 Hz, three-phase motor, and a 465 mm main extraction duct.
| Product | Spray Booth System |
| SKU | JA-MWLE-9342 |
| Type | Spray booth with extraction through the workshop wall |
| Working width | 2000 mm |
| Working height | 2070 mm |
| Filter surface | 3.0 m² |
| Extraction fan capacity | 8500 m³/hour |
| Motor | 1.5 kW, 380 V / 50 Hz / 3-phase |
| Main extraction duct diameter | 465 mm |
Applications of the paint spray booth with wall extraction
The booth gives trainees an enclosed, ventilated area in which to spray paint, primer and lacquer, with the overspray drawn through the filter and extracted out of the workshop.
- Spray painting practice in automobile body repair and painting trades
- Priming and finishing fabricated metal parts in welding and sheet-metal workshops
- Lacquering and finishing furniture and joinery work in carpentry shops
- Demonstrating filter-based extraction and workshop ventilation to students
Scope of supply and ordering
This listing covers one spray booth system with extraction fan, 1.5 kW motor and a 465 mm main extraction duct connection, for extraction through the workshop wall. Accessories, spares and quantities are confirmed on the quotation. Ducting length, wall fittings, replacement filters and installation are also confirmed on the quotation.
Packing, lead time and any minimum order for the Spray Booth System are confirmed per quotation according to order size and destination. Bulk orders for training institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Frequently asked questions
What working area does the spray booth provide?
A working width of 2000 mm and a working height of 2070 mm.
What power supply does the extraction motor need?
The 1.5 kW motor is rated 380 V, 50 Hz, three-phase, so a three-phase supply is required at the workshop.
How is the air extracted?
An 8500 m³/hour fan draws air through a 3.0 m² filter surface and exhausts it through the workshop wall via a 465 mm main duct.
Related products
More workshop tools and machines are listed in the mechanical engineering lab equipment range from JaincoLab.
Request a quote
Send an enquiry for the Spray Booth System (SKU JA-MWLE-9342) with the quantity and delivery destination using the JaincoLab contact page or by email to [email protected]. Buying under a laboratory tender? Use our tenders page.
