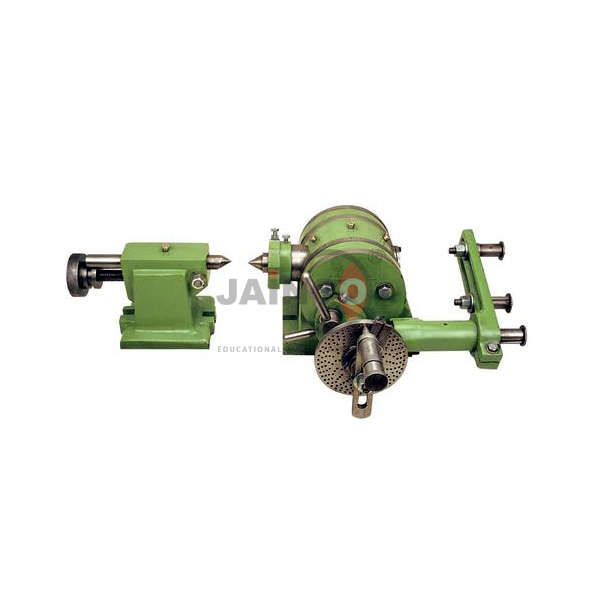

Universal Dividing Head
Description:-
Work piece can be circularly indexed and precisely rotated to preset angles or circular divisions.
Universal Dividing Heads for Tool Room and Production applications.
This allows your operator to accurately position the workpiece to any angle with an indexing plate.
The manual indexed (hand crank) head operates at ratio 40:1; i.e. 1 spindle revolution of 9 degrees per 40 crank turns.
It is suitable for indirect as well as differential indexing.
|
Gear Worm Ratio |
1:40 |
1:40 |
1:40 |
|
Center Height |
115 mm |
140 mm |
165 mm |
|
Spindle Bore |
20 mm |
32 mm |
38 mm |
|
Max. Height |
210 mm |
260 mm |
310 mm |
|
Base Size (L x W) |
175 x 125 mm |
240 x 150 mm |
270 x 170 mm |
|
Weight (Approx.) |
65 Kg |
90 Kg |
125 Kg |
Applications:-
Spiral and Cam Milling
Machining the flutes of milling cutter
Gear teeth cutting
Milling curved slots
