Tilting and Swiveling Vice Manufacturer,Supplier and Exporter in India

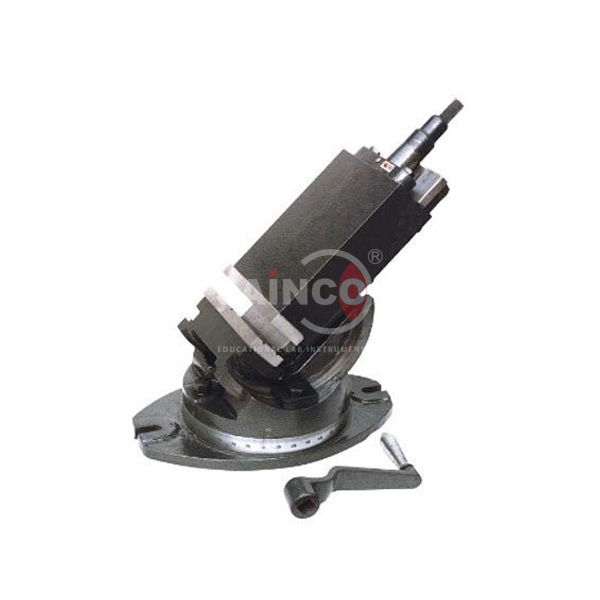

Tilting and Swiveling Vice

Product Code : JA-MMTM-8960
Jaincolab is a leading Tilting and Swiveling Vice Manufacturer,and suppliers in India, Tilting and Swiveling Vice Manufacturer,and suppliers in South Africa, Tilting and Swiveling Vice Algeria (Algiers), Tilting and Swiveling Vice Angola (Luanda), Tilting and Swiveling Vice Argentina (Buenos Aires), Tilting and Swiveling Vice Armenia (Yerevan), Tilting and Swiveling Vice Australia (Canberra), Tilting and Swiveling Vice Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Tilting and Swiveling Vice
Description:-
This range is extremely proficient in making our customer's satisfaction level to the highest by offering a peerless quality array.
We bring forth to our clients a commendable array of Tilting and Swiveling Vice.
In addition to this, our vice's are anti-corrosive and anti-abrasion that are accredited for their set working patterns that are serrated on the top of the surface.
Moreover, quality controllers at our end make sure to offer these products after quality checks to ensure a defect free range at the patrons ends within the stipulated time frame.

Feature:-
Quick alignment to machine tables using a longitudinal slot
Positive locking to withstand heavy loads
Horizontal swivel movement 360°, vertical swivel movement 90°
One vertical two horizontal 'V' grooves are provided in hardened and ground jaws
Fine acme thread screw made out of special steel
Crank handle is made of unbreakable steel provided with a spring-loaded mechanism

Specification:-

Size in Inches

3

4

6

8

Width of Jaws in mm

75

100

150

200

Opening of Jaws in mm

75

100

150

200

Depth of Jaws in mm

35

38

50

60

Length overall in mm

270

340

485

635

Height overall in mm

135

150

195

230

Tenon slot Size in mm

13

16

20

20

Weight (Approx) in kgs.

8

18

42

76
