Verification of Reciprocity Theorem Manufacturer,Supplier and Exporter in India
Product Code : JA-VONT-1132

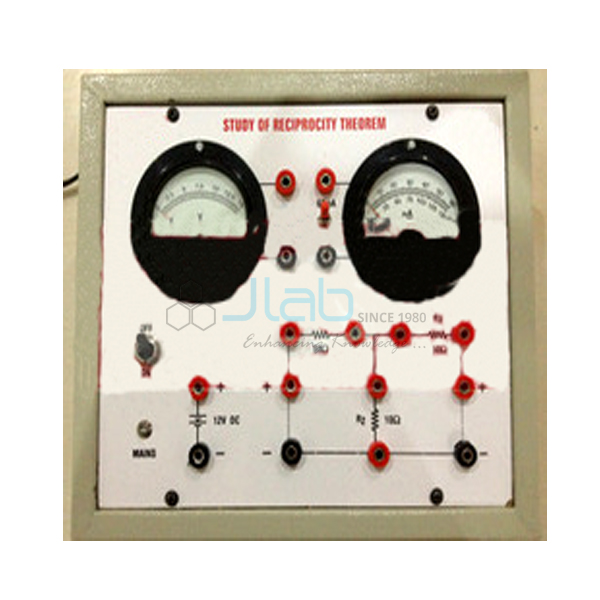

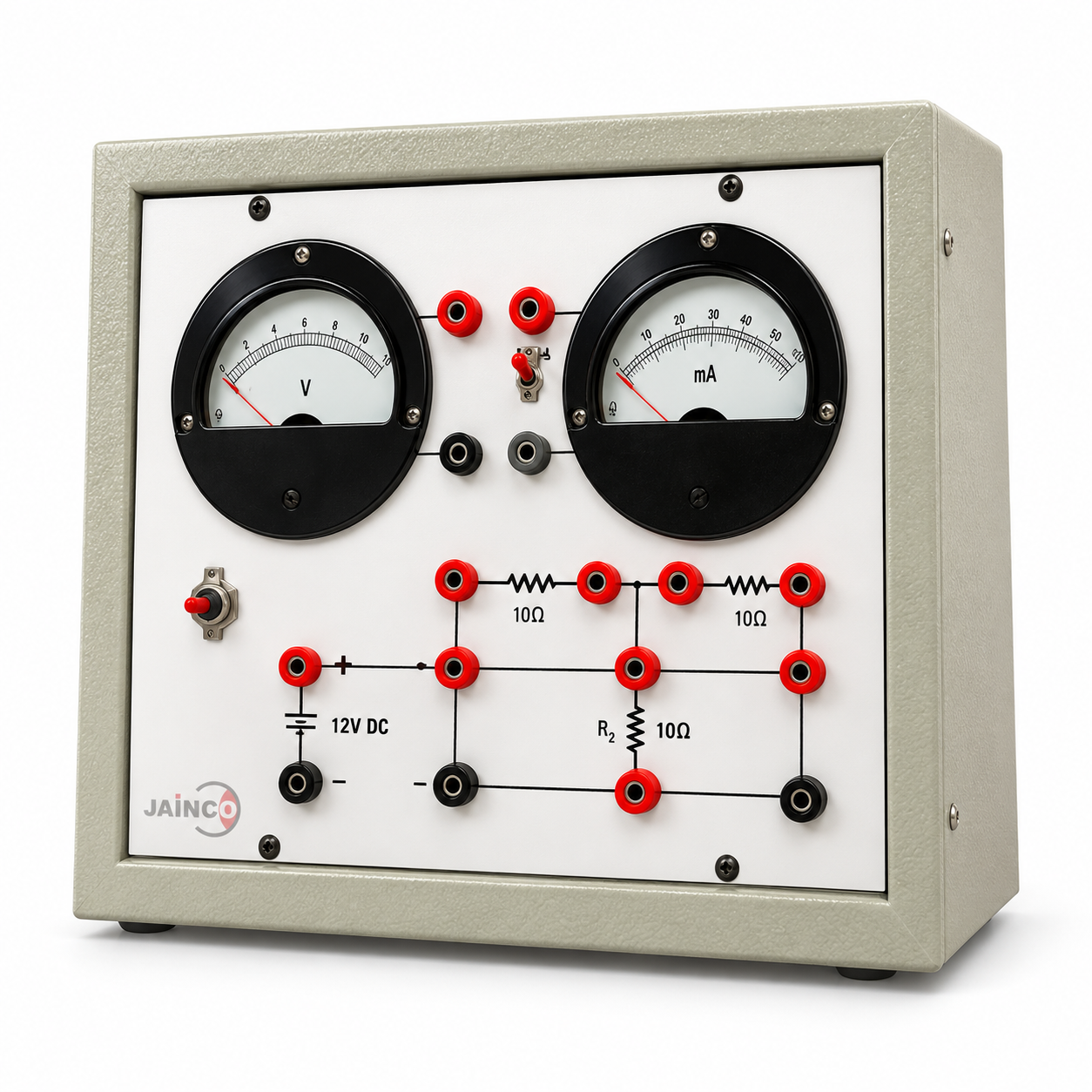

The Verification of Reciprocity Theorem trainer from Jaincolab is a dedicated bench-top apparatus that lets students experimentally verify the Reciprocity Theorem by interchanging a source and an ammeter between two points in a linear network and confirming that the current reading remains unchanged.
As a Scientific Instrument manufacturer in India, Jaincolab builds this trainer with one fixed-output DC power supply (12V at 300 mA), two moving-coil meters, and a circuit diagram printed on the front panel, with supply, meter, and resistance connections brought out to terminals for use in electronics and physics lab equipment sessions.
Specifications
| Item | Detail |
|---|---|
| Theorem Verified | Reciprocity Theorem |
| Power Supply | 1 fixed-output DC power supply, 12V at 300 mA current |
| Meters | 2 moving coil meters |
| Panel | Circuit diagram printed on the front panel |
| Connections | Supplies, meters and resistances brought out to terminals |
| Product Code | JA-VONT-1132 |
Key Features
- Dedicated single-theorem trainer for focused Reciprocity Theorem experiments
- Built-in fixed-output DC power supply for immediate classroom use
- Two moving-coil meters for direct voltage and current readings
- Circuit diagram printed on the panel for quick student reference
- Manufactured by Jaincolab for consistent, reliable classroom results
Why Choose Jaincolab
As a leading Scientific Instrument Manufacturer, Supplier, and Exporter in India, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified and supplies electronics and physics lab apparatus to schools, colleges, and universities across India and internationally. This trainer pairs well with our other network-theorem experiments, including Verification of Superposition Theorem, Verification of Nortons Theorem, and Verification of Thevenins Theorem. Browse the full Verification of Network Theorem range or explore Scientific Instrument for more electronics and physics laboratory equipment.
Applications
| Application Area | Use Case |
|---|---|
| Electrical / Electronics Engineering Labs | Verifying the Reciprocity Theorem in DC circuits |
| Polytechnic / Engineering Colleges | Circuit-theory coursework and lab assessment |
| Vocational & Diploma Institutes | Hands-on training in DC circuit analysis |
| Research & Demonstration | Reference trainer for circuit-analysis demonstrations |
Frequently Asked Questions
Q1. What does the Verification of Reciprocity Theorem trainer demonstrate?
It demonstrates the Reciprocity Theorem by interchanging a source and an ammeter between two points in a network and confirming the current reading is unchanged.
Q2. What power supply does this trainer include?
It includes one fixed-output DC power supply rated 12V at 300 mA current.
Q3. How many meters are provided for readings?
Two moving-coil meters are provided for voltage and current readings.
Q4. Does Jaincolab supply this trainer outside India?
Yes, Jaincolab supplies this trainer to educational institutions across India and internationally.
Q5. Is Jaincolab a certified manufacturer of this instrument?
Yes, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified for the manufacture of scientific and laboratory instruments.
Request a Quote
Contact Jaincolab at [email protected] or +91-85699-09696 to request a quote for the Verification of Reciprocity Theorem trainer or any other Scientific Instrument for your laboratory.
