CNC Milling Machine with Cabinet and PC Manufacturer,Supplier and Exporter in India

Product Code : JA-CTM-9075
Jaincolab is a leading CNC Milling Machine with Cabinet and PC Manufacturer,and suppliers in India, CNC Milling Machine with Cabinet and PC Manufacturer,and suppliers in South Africa, CNC Milling Machine with Cabinet and PC Algeria (Algiers), CNC Milling Machine with Cabinet and PC Angola (Luanda), CNC Milling Machine with Cabinet and PC Argentina (Buenos Aires), CNC Milling Machine with Cabinet and PC Armenia (Yerevan), CNC Milling Machine with Cabinet and PC Australia (Canberra), CNC Milling Machine with Cabinet and PC Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

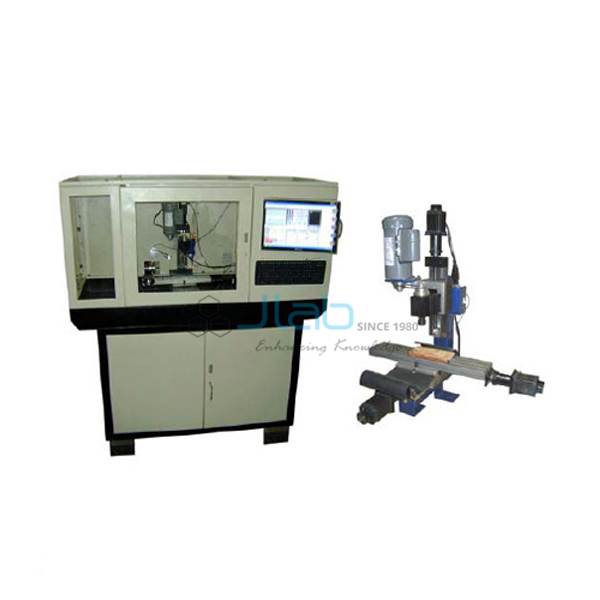

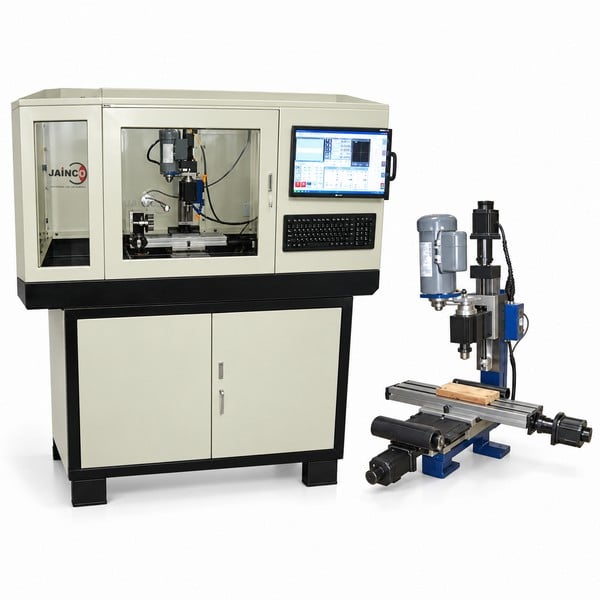

CNC Milling Machine with Cabinet and PC

Description:-

Owing to the perfect quality and supreme performance, the offered product is highly appreciated in the market.

Feature:-

Stepping Resolution 0.003mm

Mechanical repeatability 0.01mm

Spindle Speed 1100 - 11000 RPM

Travel: X = 300mm, Y = 146mm, Z = 153mm

Adjustable tapered brass gib on X-axis.

Ground steel sliding ways with adjustable brass gib.

Hard anodized aluminum table.

Rapid Travel of 30 in/min.

Universal Standard G-Code import.

1/2" (12.7mm) 20 pitch Cr-Mo leadscrews with adjustable split bronze nuts on all axes.

It has coolant system with the removable collector, mechanical storage system on the bottom of a Computer system, Controller and for Electrical wiring.

The system supplied with PC with Intel Pentium-IV CPU @ 2.4 GHz, 512MB RAM, 52X DVD Writer, Optical Mouse, 15” TFT Monitor & Keyboard.
