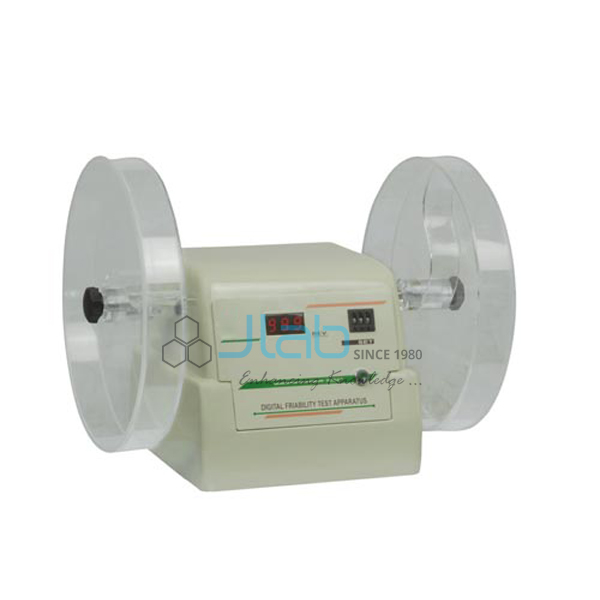

Digital Friability Test Apparatus

Digital Friability Test Apparatus

Product Code : JA-FTA-2216

Digital Friability Test Apparatus

Features:-

Seven segment LED display

Sturdy motor to drive drums at constant speed

Digital Friability Test Apparatus is a precision instrument suitable for measuring obression strength of tablets.

The unit is equipped with two transparent acrylic drums which rotate at a speed of 25 ± 1 rpm.

Each of the two acrylic drums are provided with an arm which carries the tablets along with it up to a predetermined height and allows them to fall from that specified height, while the drums are rotating,

It is fitted with a digital revolution counter showing the current number of revolutions for the test.

A thumb wheel switch is used to set the desired number of rotations.

Provision is made to remove the lid of the acrylic drum by unscrewing just one knob.

This is available in 1 drum and 2 drum assemblies.

Specifications:-

Display

3 digit bright red seven segment LED display

Accuracy

± 1 revolution

Resolution

1 revolution

Range

0-999 revolutions

Operating Temp. Range

10º-50º C

Power

230 V ± 10%, 50 Hz. AC

Dimension

230 mm (H) X 250 mm (W) X 540 mm (L) (Approx.)

Weight

9.5 Kg. (Approx

Accessories

Drum 1 No., 2 Nos., Dust Cover-1 No.



    Download as Pdf
