Microprocessor Friability Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-FTA-2215

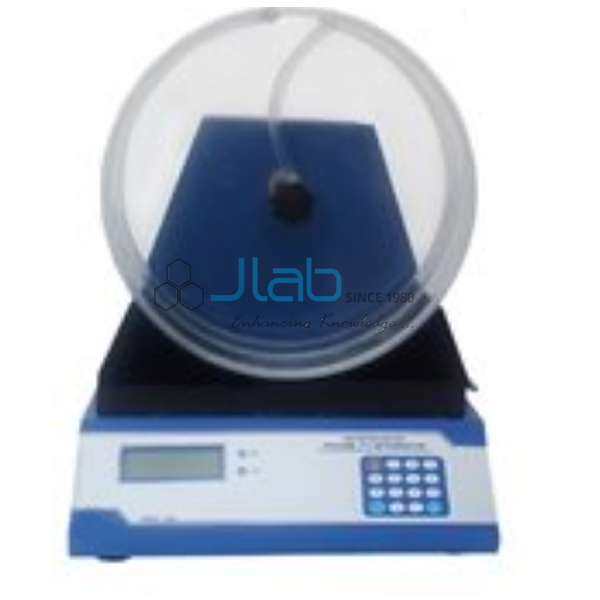

Microprocessor Friability Apparatus
Features:-
Complies with USP, IP specifications
Microprocessor based, easy to use
20 x 4 line alphanumeric LCD display with backlit
16 Soft touch membrane type keys
Independent programmable setups for Time & Count mode with storage
Password-protected user access
Facility to attach with weighing balance
Printer attachment facility
Automatically calculates percentage friability
Loading and unloading of tablets with out removing drums
Power Failure detection facility
User friendly operation with menus & current status indicators.
Microprocessor Friability Apparatus measures the tendency of a tablet to
chip or breakdown to pieces when held under mechanical stresses.
Instrument uses the latest microcontroller technology and advanced
engineering techniques so as to give enhanced accuracy and reproducibility.
System is equipped with 4 line alphanumeric LCD display with backlit and 16
number of soft touch membrane type keys.
The friability tester can be operated using only one or two drums. The
rotational speed of drums can be set at different speeds (20-60 rpm).
The samples can be loaded conveniently without removing the drums and after
the test completion the samples are automatically unloaded to the collection
tray.
To eliminate the manual input of weight of samples the facility of connecting a
weighing scale is also available.
When weighing scale is connected the weight of samples is automatically
recorded to the instrument from the weighing balance.
The test can be performed in two different modes Time or Count mode.
The instrument stores the test parameters, readings and results
simultaneously in the memory which are retained even after the power is
switched OFF.
Provision has also been made for attachment of a printer so as to provide
hard-copy printouts of test data, including the time, date and calculated
results.
Specifications:-
|
Test Methods |
Time and Count Mode |
|
Speed of Drums |
20 – 60 RPM |
|
No. of Drums |
2 |
|
Display |
20x4 Alphanumeric LCD |
|
Keyboard |
Soft touch membrane keys, alphanumeric mobile keypad |
|
Counter |
1 to 9999 rotations |
|
Timer |
1 sec to 9 hrs 59 min 59 sec |
|
Type of Drive |
Direct Drive with Stepper Motor |
|
Printer |
Attachment of RS232 printer with Serial interface |
|
Electrical Supply |
230 V AC ± 10%, 50/60 Hz, 44VA |
|
Dimensions (WxHxD) |
335mm X 330mm X 340mm |
|
Weight |
12 Kgs |
