Tap Density Tester

Product Code : JA-TOBDA-2221
Jaincolab is a leading Tap Density Tester Manufacturer,and suppliers in India, Tap Density Tester Manufacturer,and suppliers in South Africa, Tap Density Tester Algeria (Algiers), Tap Density Tester Angola (Luanda), Tap Density Tester Argentina (Buenos Aires), Tap Density Tester Armenia (Yerevan), Tap Density Tester Australia (Canberra), Tap Density Tester Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Tap Density Tester


Complies with USP, IP specifications

Extremely useful for pharmaceutical labs

Microprocessor based, easy to use

20 x 4 line alphanumeric LCD display with backlit

16 Soft touch membrane type keys

Independent programmable setups for User & USP mode with storage

Printer attachment facility

Automatically calculate result parameters like Tap Density, Initial Density, Compressibility Index and Hausner Ratio

Automatically stores last Result

Power Failure detection facility

User friendly operation with menus & current status indicators.

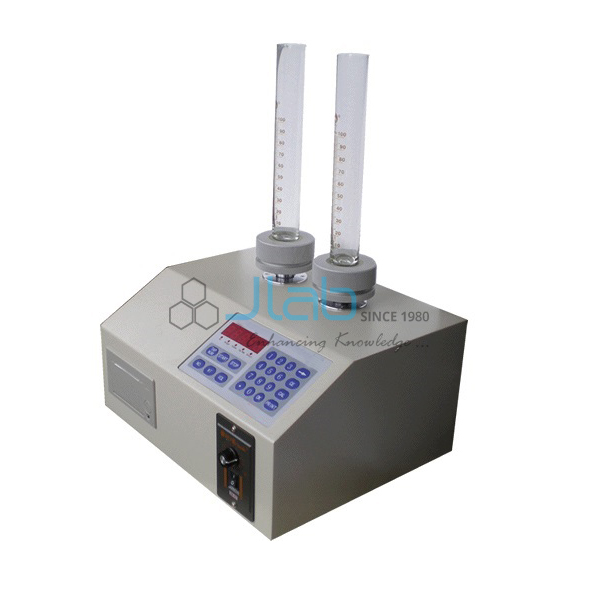

Microprocessor Tap Density Tester is a density measurement equipment used to measure tapped density of powders, as well as granulated or flaked materials by standardized and repeatable procedures. Instrument uses the latest microprocessor technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility.

System is equipped with 4 line alphanumeric LCD display with backlit and 16 number of soft touch membrane type keys.

The unit is provided with two motorized platforms which allow for 14 ± 2.0 mm drop height for the USP Method I version, and a 3 ±0.3 mm drop height for the USP Method II version.

The motorized platforms consist of two cylinder holders with snap-lock mechanism designed to hold 100 ml and 250 ml cylinders.

The simultaneous rotating and tapping motion minimizes any possible loss of mass during tapping down.

The instrument stores the test parameters, readings and results simultaneously in the memory which are retained even after the power is switched OFF.

Provision has also been made for attachment of a printer so as to provide hard-copy printouts of test data, including the time, date and calculated results.


Test Methods


No. of Stations



20x4 Alphanumeric LCD


16 Soft touch membrane keys, alphanumeric mobile keypad

Tap Height

USP-I: 14mm± 2mm, USP-II: 3mm ± 0.3mm


USP-I: 300± 15, USP-II: 250± 15

No. of Tap Counts

1 to 9999

Type of Drive

Direct Drive with Stepper Motor

Printer Accessories

Attachment of RS232 printer with Serial interface

Standard Accessories

Cylinders 100 & 250ml (1 each)
Cylinder holders for 100 & 250ml (1 each)

Electrical Supply

230 V AC ± 10%, 50/60 Hz, 44VA

Dimensions (WxHxD)

360x340x190 mm without holder


15 Kgs
