Electricity Lab

Product Code : JA-BT-1493

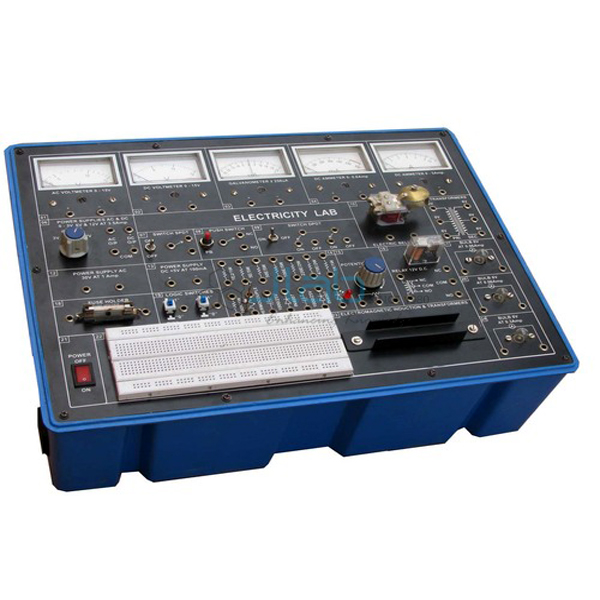

Electricity Lab

Experiment Coverage:

To Study/ Experiment the following:

  • Electricity by Chemical Action
  • Electricity by Heat
  • Electricity by Magnets
  • Conductors and Insulators
  • Resistor Color Code
  • Resistors in series combination
  • Resistors in Parallel combination
  • Resistors in series and Parallel combination
  • Ohm's Law
  • Applying Ohm's Law
  • Kirchhoff’s Current Law or Junction Rule
  • Kirchhoff’s Voltage Law or Loop Rule
  • Linear & Non Linear Resistance
  • Measurement of Power
  • AC & DC Power
  • Fuses and Circuit Breakers
  • Heating Effect & the Fuse
  • Load in Series and Parallel Circuits
  • Cells Connections
  • Voltage in series & parallel Circuits
  • Current in series and parallel Circuits

Specifications:

Meters:

  • 5 Nos

AC Voltmeter:

  • 15V

DC Voltmeter:

  • 15V

Galvanometer:

  • ± 250uA

DC Ampere Meter:

  • 0.6Amp

DC Ampere Meter:

  • 5A

Power Supply:

Power Supplies:

  • 3, 6, 12V at 3.5A

Power Supply AC:

  • 30V at 1A

Power Supply DC:

  • 5V at 100 mA
  • Switch SPDT
  • Switch DPDT
  • Push switch
  • Logic Switches Two No. Push type
  • Relay 12V DC, One change over
  • Buzzer/Electric Bell
  • Transformer Input 6-0-6V and Output 6-0-6V

Bulb 6V:

  • 3 Nos
