Pressure To Current Measurement Trainer Manufacturer,Supplier and Exporter in India
Product Code : JA-MLLE-9170

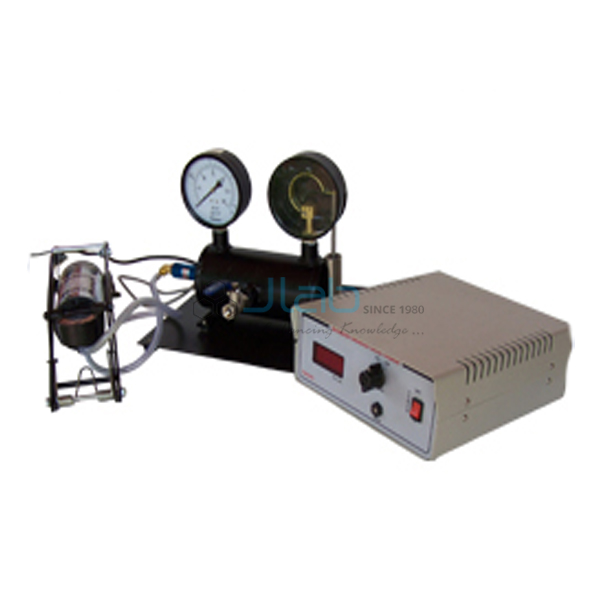

The Pressure To Current Measurement Trainer (SKU JA-MLLE-9170) is a P to I transmitter trainer in which a foot air pump pressurises a chamber fitted with a pressure transducer and a Bourdon pressure gauge, and the 4-20 mA transmitter output is read on a current meter. This pressure to current transmitter trainer shows how process pressure becomes a standard current signal. It is manufactured by JaincoLab for instrumentation labs.
Specifications
The set-up has a pressure chamber on a base board with a pressure transducer and Bourdon pressure gauge, a foot air pump for building pressure, a digital pressure indicator with transmitter output, and a current meter for reading the 4-20 mA signal.
| Product | Pressure To Current Measurement Trainer |
| SKU | JA-MLLE-9170 |
| Pressure source | Foot air pump |
| Chamber | Pressure chamber on a base board |
| Sensors | Pressure transducer and Bourdon pressure gauge |
| Display | Digital pressure indicator with transmitter output |
| Output | 4-20 mA, read on a current meter |
| Pressure range | Confirmed on the quotation |
Experiments on the pressure to current transmitter trainer
Students build pressure with the foot pump, compare the gauge and digital readings and plot transmitter current against pressure to check linearity and calibration.
- Pressure against 4-20 mA output characteristic
- Comparison of Bourdon gauge and transducer readings
- Calibration of the pressure transmitter
- Principles of current-loop signal transmission
- Instrumentation practicals in B.Tech, diploma and ITI courses
Scope of supply and ordering
The listing covers the pressure chamber, transducer, Bourdon gauge, foot pump, digital indicator and current meter described above.
Frequently asked questions
How is pressure generated?
With a foot air pump connected to the pressure chamber.
What output signal does it give?
A 4-20 mA transmitter output read on a current meter.
Is there a reference gauge?
Yes. A Bourdon pressure gauge is fitted alongside the transducer.
