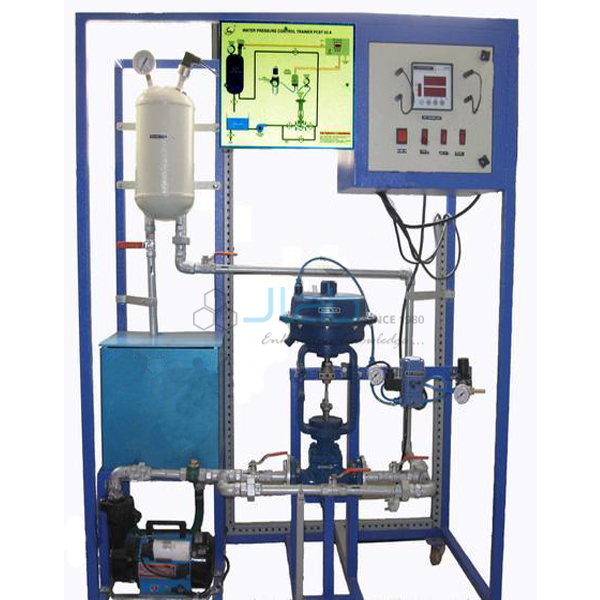

Water Pressure Control Trainer Manufacturer,Supplier and Exporter in India
Product Code : JA-MLLE-9167
The Water Pressure Control Trainer (SKU JA-MLLE-9167) is a process control trainer that gives an idea of a feedback pressure control loop using water, and of PID control. Students compare P, P+I and P+I+D controller action on a pressure process and see how each mode affects offset, overshoot and settling. This water pressure control trainer is manufactured by JaincoLab for instrumentation and process control labs; component ratings are confirmed on the quotation.
Specifications
The Water Pressure Control Trainer is a closed-loop water pressure control set-up for P, P+I and P+I+D controller action; pump, pressure transmitter, control valve, controller and dimensions are not given in the product data and are confirmed on the quotation.
| Product | Water Pressure Control Trainer |
| SKU | JA-MLLE-9167 |
| Type | Closed-loop water pressure control trainer |
| Control modes | P, P+I and P+I+D |
| Topics | PID control, feedback control, feedback pressure control |
| Pump, instruments and dimensions | Confirmed on the quotation |
Experiments on the water pressure control trainer
Students run the water pressure loop under each controller mode and record the response to set-point and load changes, which is the core exercise in introductory process control.
- Study of a feedback water pressure control loop
- Response with P, P+I and P+I+D controller action
- Offset and its removal by integral action
- Controller tuning for stable pressure control
- Process control practicals in B.Tech, diploma and instrumentation courses
Scope of supply and ordering
The listing covers one water pressure control trainer. Its components, ratings and service needs are confirmed on the quotation.
The quotation confirms MOQ, lead time and packing for the Water Pressure Control Trainer against the quantity and delivery address.
Frequently asked questions
Which controller actions can be studied?
P, P+I and P+I+D controller action.
What is the process medium?
Water, in a feedback pressure control loop.
Where are the component ratings given?
Pump, transmitter, valve and controller details are confirmed on the quotation.
