Level Control Trainer Manufacturer,Supplier and Exporter in India
Product Code : JA-MLLE-9161

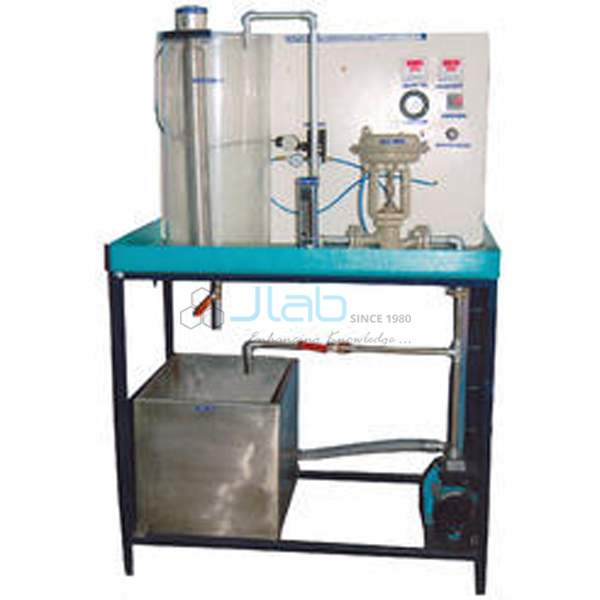

The Level Control Trainer (SKU JA-MLLE-9161) is a process control trainer that outlines the basics of closed-loop level control and related aspects, in a compact frame of about 4.5 ft x 1.5 ft x 4.5 ft. It runs on 230 V AC, 50 Hz with a water supply and drain and clean, dry compressed air at 2.1 kg/cm², and a computer interface with software is optional. This level control trainer is manufactured by JaincoLab for instrumentation labs.
Specifications
The Level Control Trainer measures about 4.5 ft (L) x 1.5 ft (W) x 4.5 ft (H) and needs a water supply with drainage, a 230 V AC 50 Hz electrical supply and clean, dry compressed air at 2.1 kg/cm²; transmitter, controller and valve details are confirmed on the quotation.
| Product | Level Control Trainer |
| SKU | JA-MLLE-9161 |
| Type | Closed-loop level control trainer |
| Dimensions | 4.5 ft (L) x 1.5 ft (W) x 4.5 ft (H) |
| Electrical supply | 230 V AC, 50 Hz |
| Compressed air | Clean and dry, 2.1 kg/cm² |
| Services | Water supply and drainage |
| Computer interface | Optional, with software for analysis |
| Instrument details | Confirmed on the quotation |
Experiments on the level control trainer
Students run the level loop in open and closed loop, tune the controller and record how tank level responds to set-point and disturbance changes.
- Study of a closed-loop level control system
- Open-loop and closed-loop level response
- Effect of P, PI and PID tuning on level control
- Data analysis with the optional computer interface
- Process control practicals in B.Tech, diploma and instrumentation courses
Scope of supply and ordering
The listing covers the level control trainer as described above. The optional computer interface and software are confirmed on the quotation; compressed air, water and power are provided by the buyer.
The Level Control Trainer is supplied for single laboratories as well as bulk orders for colleges, polytechnics and training institutes.
Frequently asked questions
What services does the trainer need?
Water supply and drainage, 230 V AC 50 Hz power and clean, dry compressed air at 2.1 kg/cm².
What are its dimensions?
About 4.5 ft long, 1.5 ft wide and 4.5 ft high.
Is a computer interface available?
Yes, as an option with software for analysis.
