Strain Gauge Transducers Manufacturer,Supplier and Exporter in India
Product Code : JA-MLLE-9158

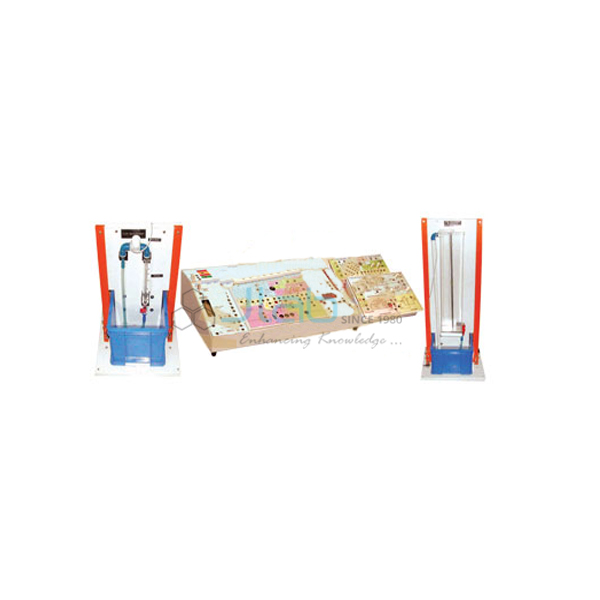

Strain Gauge Transducers (SKU JA-MLLE-9158) is an instrumentation trainer covering strain, speed and sound sensing. The strain section uses strain gauges on a cantilever in half and full Wheatstone bridge with an instrumentation amplifier, loaded by a 0-20 mm micrometer; further sections cover speed sensing with a slotted wheel and ultrasonic and audio sound sensing. This strain gauge transducer trainer is manufactured by JaincoLab for measurement and instrumentation labs.
Specifications
The trainer combines a strain section (piezo-resistive transducer, cantilever strain gauges in half and full bridge, instrumentation amplifier with zero and span, 0-20 mm micrometer of 0.01 mm accuracy), a speed section (12 V DC motor 0-4000 rpm, 8-slot wheel, F to V converter) and a sound section (40 kHz ultrasonic oscillator, V to I 4-20 mA block, microphone).
| Product | Strain Gauge Transducers |
| SKU | JA-MLLE-9158 |
| Strain transducer | Piezo-resistive transducer; strain gauges on cantilever in half and full Wheatstone bridge |
| Strain generation | Micrometer 0-20 mm, accuracy 0.01 mm |
| Signal conditioning | Instrumentation amplifier with zero and span adjustment |
| Speed sensing | 12 V DC motor, 0-4000 rpm; rotating slotted wheel with 8 slots; F to V converter with span and zero amplifier; programmable threshold comparator |
| Sound sensing | 40 kHz gated oscillator for ultrasonic waves; V to I block for 4-20 mA current loop; dynamic microphone as audio sensor |
Experiments on the strain gauge transducer trainer
The trainer supports a set of sensor experiments that take students from bridge circuits and calibration to speed and distance measurement with standard signal outputs.
- Gauge factor determination
- Strain indicator calibration with zero and span
- Displacement measurement using strain gauges
- Speed measurement with a slotted wheel and F to V converter
- Ultrasonic distance measurement and 4-20 mA current loop output
- Sound sensing with a dynamic microphone
Scope of supply and ordering
The listing covers the strain, speed and sound sensing sections described above. Patch cords, manual and any additional sensors are confirmed on the quotation.
Frequently asked questions
Which transducers does the trainer cover?
Strain gauges, a speed-sensing slotted wheel, an ultrasonic sensor and a dynamic microphone.
How is strain applied?
With a 0-20 mm micrometer of 0.01 mm accuracy loading a cantilever.
Does it provide a 4-20 mA output?
Yes. A V to I block converts the voltage output to a 4-20 mA current loop.
Related products
- Pressure To Current Measurement Trainer
- Current To Pressure Measurement Trainer
- Dial Gauge
- Flow Control Trainer
More items are listed in the mechanical engineering lab equipment range, including metrology, instrumentation and process control trainers.
Request a quote
For the price of the Strain Gauge Transducers (SKU JA-MLLE-9158), use the JaincoLab contact page with your quantity, any required options and the delivery location. Buying under a laboratory tender? Use our tenders page.
